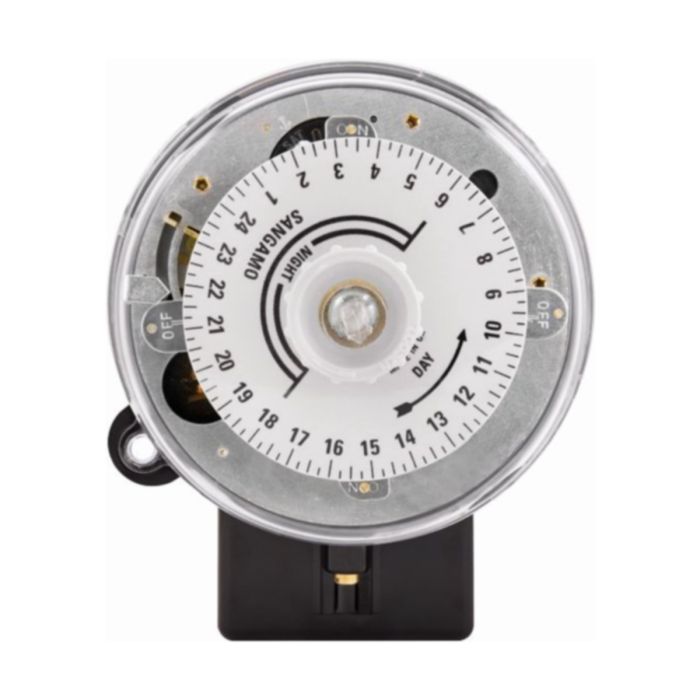

Sangamo S255.2 Synchronous 24 HR F2/3 SPST 4 Pin Time Switch Day Omit On 20A
Sangamo S255.2 24HR Dial Timeswitch
Estimated delivery 2-3 Working days
SKU
SAG-S255.2
£153.91 £184.69
Product Downloads
Product Categories
Sangamo S255.2 24HR Dial Timeswitch
| SKU | SAG-S255.2 |
|---|---|
| Manufacturer Part Code | S255.2 |
| Warranty | 3 Years |
| Mounting Method | Surface |
| Ingress Protection | IP20 |
| Depth (mm) | 82.00 mm |
| Width (mm) | 105.70 mm |
| Length (mm) | 146.50 mm |
| Current Rating | 20A |
| CE Approved | Yes |
| Type of supply voltage | AC |
| Standards | BS EN 60730-2-7 BS EN 60730-1 |
| Programming | 24 hour with 2 ON/OFF per day |
| Number of Channels | 1 |
| Override | Yes |
| Day Ommission Facility | Yes |
| Ambient Temperature Range | 0 to +50 Degrees C |
| Voltage | 230V |
| Is on Sale | No |
| Time Switches | Description | Product | Time Switch | |
| Time Switches | Description | Product Type | Synchronous 24 HR 3 On/Off 3 Pin | |
| Time Switches | Description | Type | Standard | |
| Time Switches | Dimensions | Diameter (EF000551) | 105.7 mm | |
| Time Switches | Dimensions | Length (EF004265) | 146.5 mm | |
| Time Switches | Features | Ambient Temperature Range | 0 to +50 Degrees C | |
| Time Switches | Features | Base Type | 3 Pin | |
| Time Switches | Features | Bluetooth | N | |
| Time Switches | Features | Cable Size | 0.5 - 4 mm2 | |
| Time Switches | Features | Day Ommission Facility | Y | |
| Time Switches | Features | Display | 24 Hour Dial | |
| Time Switches | Features | Ingress Protection (EF005474) | IP20 | |
| Time Switches | Features | Mounting (EF000003) | Surface | |
| Time Switches | Features | Number of Channels | 1 | |
| Time Switches | Features | Override Facility | Y | |
| Time Switches | Features | Pole Configuration | Single Pole | |
| Time Switches | Features | Programming | 24 hour with 3 ON/OFF per day | |
| Time Switches | Features | Setting Accuracy | +/- 3 Minutes | |
| Time Switches | Features | Supply Voltage | 230 V | |
| Time Switches | Features | Timing Accuracy | 5 Minutes / Year | |
| Time Switches | Features | Voltage Type | AC | |
| Time Switches | General | Standards | BS EN 60730-1 | |
| Time Switches | General | Warranty | 5 Years | |
| Time Switches | Technical Data | Current Rating (EF000227) | 20 A |
