Estimated delivery 2-3 Working days
SKU
JCC-BC020001
£50.53 £60.64
Product Downloads
Product Categories

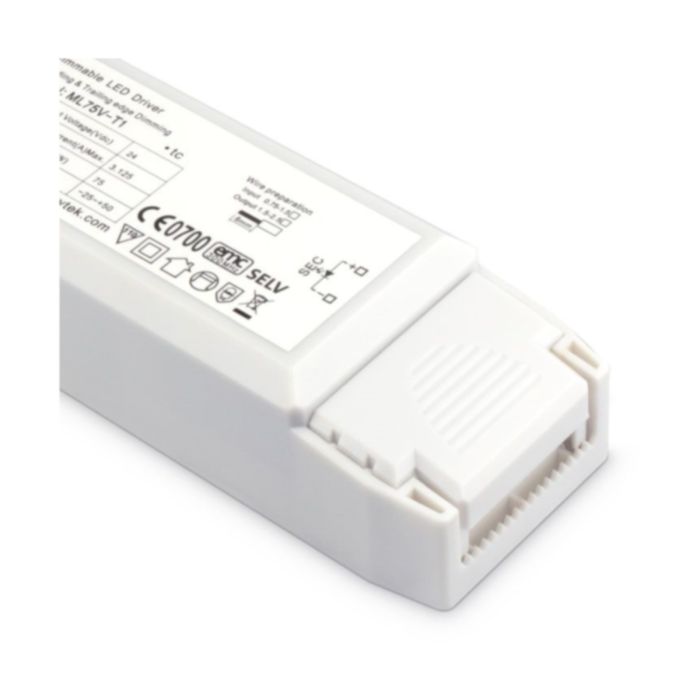

JCC BC020001 LED Dimmable Driver 75W 24V
| SKU | JCC-BC020001 |
|---|---|
| Manufacturer Part Code | BC020001 |
| Warranty | 3 Years |
| Material | Polycarbonate PC |
| Colour | White |
| Ingress Protection | IP20 |
| Mounting Method | Surface |
| Depth (mm) | 40.00 mm |
| Length (mm) | 220.00 mm |
| Width (mm) | 58.00 mm |
| Height (mm) | 40.00 mm |
| Wattage | 75W |
| Voltage | 220-240V |
| Dimmable | Yes |
| Is on Sale | No |
| Transformers Drivers Ballasts | Description | Primary Voltage | 220-240 V | |
| Transformers Drivers Ballasts | Description | Product | Driver | |
| Transformers Drivers Ballasts | Description | Product Type | LED Triac Dimmable IP20 | |
| Transformers Drivers Ballasts | Description | Qualifier | Dimmable | |
| Transformers Drivers Ballasts | Description | Secondary Current | 3.125 A | |
| Transformers Drivers Ballasts | Description | Secondary Voltage Type | DC | |
| Transformers Drivers Ballasts | Description | Secondary Voltage | 24 V | |
| Transformers Drivers Ballasts | Dimensions | Depth (EF008810) | 40 mm | |
| Transformers Drivers Ballasts | Features | Dimmable | Y | |
| Transformers Drivers Ballasts | Features | Ingress Protection (EF005474) | IP20 | |
| Transformers Drivers Ballasts | Features | Mounting (EF000003) | Surface | |
| Transformers Drivers Ballasts | Features | Wattage | 75 W | |
| Transformers Drivers Ballasts | General | CE Approved | Y | |
| Transformers Drivers Ballasts | General | Standards | BS EN 61347 | |
| Transformers Drivers Ballasts | General | Unit Weight | 0.58 kg | |
| Transformers Drivers Ballasts | General | Warranty | 2 Years | |
| Transformers Drivers Ballasts | Material & Finish | Colour (EF000007) | White | |
| Transformers Drivers Ballasts | Material & Finish | Material (EF001257) | Polycarbonate PC | |
| Transformers Drivers Ballasts | Technical Data | Frequency | 50/60 Hz | |
| Transformers Drivers Ballasts | Technical Data | Maximum Operating Temperature | +50 Degrees C | |
| Transformers Drivers Ballasts | Technical Data | Minimum Operating Temperature | -25 Degrees C | |
| Transformers Drivers Ballasts | Technical Data | Number of Phases | Single |
