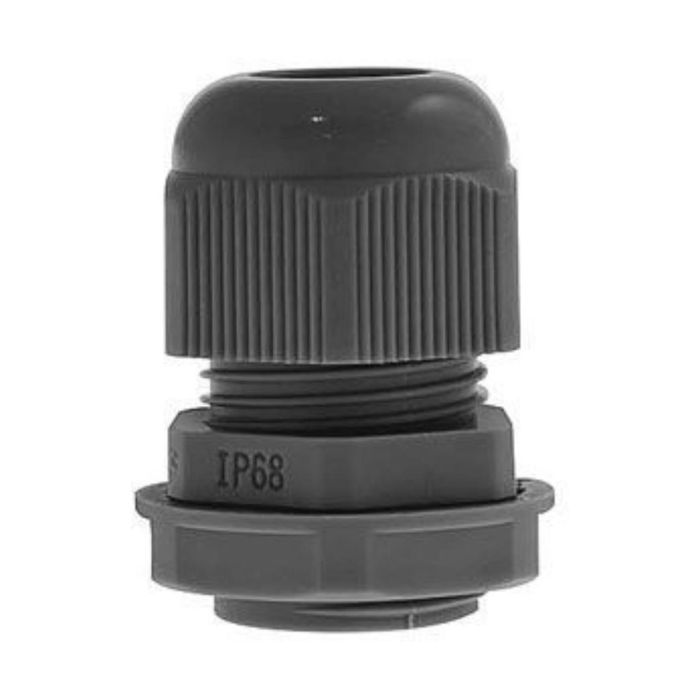

Unicrimp QCGM16BLK 16mm Nylon Cable Gland Black Pack=10
Explore our wide range of Brass and Nylon Cable Glands. We offer A variety of BW, CW & AE1W Brass Cable Glands manufactured to the latest approvals and BS 6121. Our Nylon Cable Glands, made from polyamide 6, are manufactured to the latest UL approvals.
- IP68 Rated
- 5 - 10mm Cable Dia.
- Strong & Reliable Seal
- Protects Cables
Explore our wide range of Brass and Nylon Cable Glands. We offer A variety of BW, CW & AE1W Brass Cable Glands manufactured to the latest approvals and BS 6121. Our Nylon Cable Glands, made from polyamide 6, are manufactured to the latest UL approvals.
SKU | UNIC-QCGM16BLK |
---|---|
Manufacturer Part Code | QCGM16BLK |
Product Range | Q-Crimp |
Product Finish | Black Nylon |
Ingress Protection | IP68 |
Gland size | 16 mm |
Gland material | Nylon |
Gland colour | Black |
Length (mm) | 15.50 mm |
Cable type | Non-Armoured |
Shroud material | PVC |
Standards | ANSI/UL 514B BS EN 60529: 1992 + A2: 2013 |
Temperature Range | 0|80 Degrees C |
c/w Earth Tag? | No |
c/w Locknut? | Yes |
c/w Shroud? | No |
Dimensions1 | 16mm |
Is on Sale | No |
Brand | Q-Crimp |
Cable Glands | Description | Pack Quantity | 10 |
Cable Glands | Description | Product | Cable Gland |
Cable Glands | Dimensions | Diameter | 5 - 10 mm |
Cable Glands | Dimensions | Gland Size | 16 mm |
Cable Glands | Dimensions | Length (EF004265) | 15.5 mm |
Cable Glands | Features | Cable Type | Non-Armoured |
Cable Glands | Features | Includes Locknut? | Y |
Cable Glands | Features | Ingress Protection (EF005474) | IP68 |
Cable Glands | Material & Finish | Gland Colour | Black |
Cable Glands | Technical Data | Temperature Range | 0|80 Degrees C |
