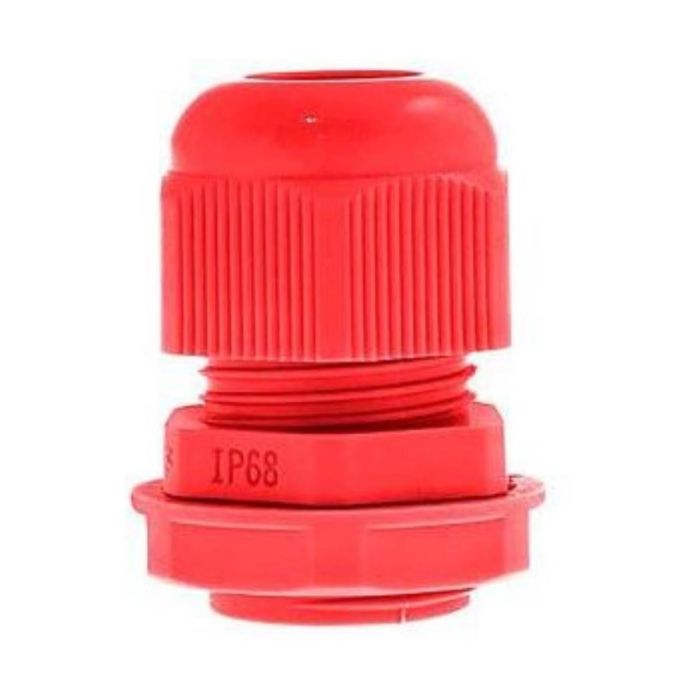

Unicrimp QCGM16RED 16mm Nylon Cable Gland Red Pack=10
Explore our wide range of Brass and Nylon Cable Glands. We offer A variety of BW, CW & AE1W Brass Cable Glands manufactured to the latest approvals and BS 6121. Our Nylon Cable Glands, made from polyamide 6, are manufactured to the latest UL approvals.
- IP68 Rated
- 5 - 10mm Cable Dia.
- Strong & Reliable Seal
- Protects Cables
Explore our wide range of Brass and Nylon Cable Glands. We offer A variety of BW, CW & AE1W Brass Cable Glands manufactured to the latest approvals and BS 6121. Our Nylon Cable Glands, made from polyamide 6, are manufactured to the latest UL approvals.
| SKU | UNIC-QCGM16RED |
|---|---|
| Manufacturer Part Code | QCGM16RED |
| Product Range | Q-Crimp |
| Product Finish | Red Nylon |
| Ingress Protection | IP68 |
| Gland size | 16 mm |
| Gland material | Nylon |
| Gland colour | Red |
| Length (mm) | 15.50 mm |
| Cable type | Non-Armoured |
| Shroud material | PVC |
| Standards | ANSI/UL 514B BS EN 60529: 1992 + A2: 2013 |
| Temperature Range | 0|80 Degrees C |
| c/w Earth Tag? | No |
| c/w Locknut? | Yes |
| c/w Shroud? | No |
| Dimensions1 | 16mm |
| Is on Sale | No |
| Brand | Q-Crimp |
| Cable Glands | Description | Pack Quantity | 10 |
| Cable Glands | Description | Product | Cable Gland |
| Cable Glands | Dimensions | Diameter | 5 - 10 mm |
| Cable Glands | Dimensions | Gland Size | 16 mm |
| Cable Glands | Dimensions | Length (EF004265) | 15.5 mm |
| Cable Glands | Features | Cable Type | Non-Armoured |
| Cable Glands | Features | Includes Locknut? | Y |
| Cable Glands | Features | Ingress Protection (EF005474) | IP68 |
| Cable Glands | Material & Finish | Gland Colour | Red |
| Cable Glands | Technical Data | Temperature Range | 0|80 Degrees C |
