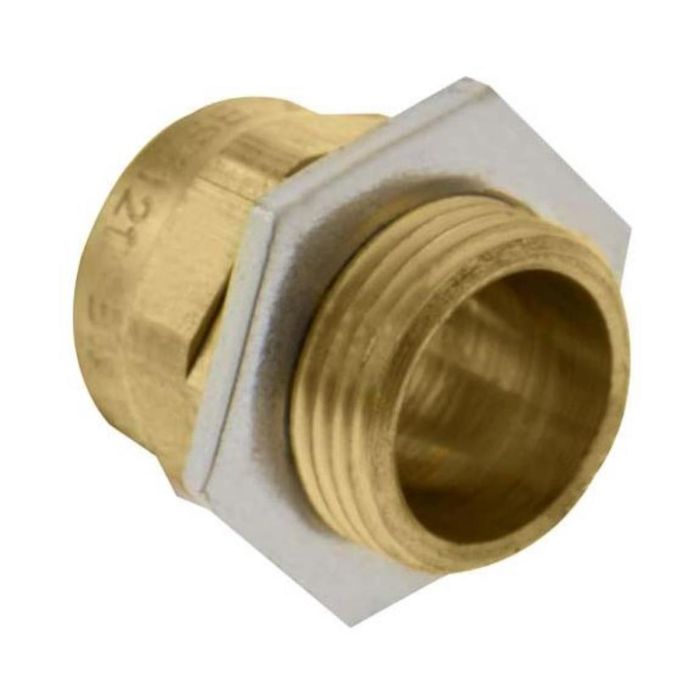

Unicrimp QBW63 63mm Brass Cable Gland BW Pack =1
Explore our wide range of Brass and Nylon Cable Glands. We offer A variety of BW, CW & AE1W Brass Cable Glands manufactured to the latest approvals and BS 6121. Our Nylon Cable Glands, made from polyamide 6, are manufactured to the latest UL approvals.
- 63mm Gland Size
- 55.9 - 68.2mm Cable Dia.
- Cast brass to BS2874
- Approved to BS6121 pt1
Explore our wide range of Brass and Nylon Cable Glands. We offer A variety of BW, CW & AE1W Brass Cable Glands manufactured to the latest approvals and BS 6121. Our Nylon Cable Glands, made from polyamide 6, are manufactured to the latest UL approvals.
| SKU | UNIC-QBW63 |
|---|---|
| Manufacturer Part Code | QBW63 |
| Product Range | Q-Crimp |
| Product Finish | Brass |
| Ingress Protection | IP30 |
| Cable type | Armoured |
| Gland material | Brass |
| Gland colour | Self Coloured |
| Gland size | 63 mm |
| Length (mm) | 15.00 mm |
| Overall Diameter (mm) | 55.90 mm |
| Shroud material | PVC |
| Qualifier | BW |
| c/w Earth Tag? | Yes |
| c/w Locknut? | Yes |
| c/w Shroud? | Yes |
| Temperature Range | -80|600 Degrees C |
| Standards | BS2874 BS6121 pt1 |
| Product Type1 | BW c/w Locknut Shroud & Earthtag |
| Dimensions1 | 63mm |
| Is on Sale | No |
| Brand | Q-Crimp | |
| Cable Glands | Description | Pack Quantity | 1 | |
| Cable Glands | Description | Product | Cable Gland | |
| Cable Glands | Description | Product Type | BW c/w Locknut Shroud & Earthtag | |
| Cable Glands | Description | Qualifier | BW | |
| Cable Glands | Dimensions | Diameter | 55.9 mm | |
| Cable Glands | Dimensions | Gland Size | 63 mm | |
| Cable Glands | Dimensions | Length (EF004265) | 15 mm | |
| Cable Glands | Features | Cable Type | Armoured | |
| Cable Glands | Features | Ingress Protection (EF005474) | IP30 | |
| Cable Glands | General | Standards | BS2874 BS6121 pt1 | |
| Cable Glands | Material & Finish | Gland Colour | Self Coloured | |
| Cable Glands | Technical Data | Temperature Range | -80|600 Degrees C |
