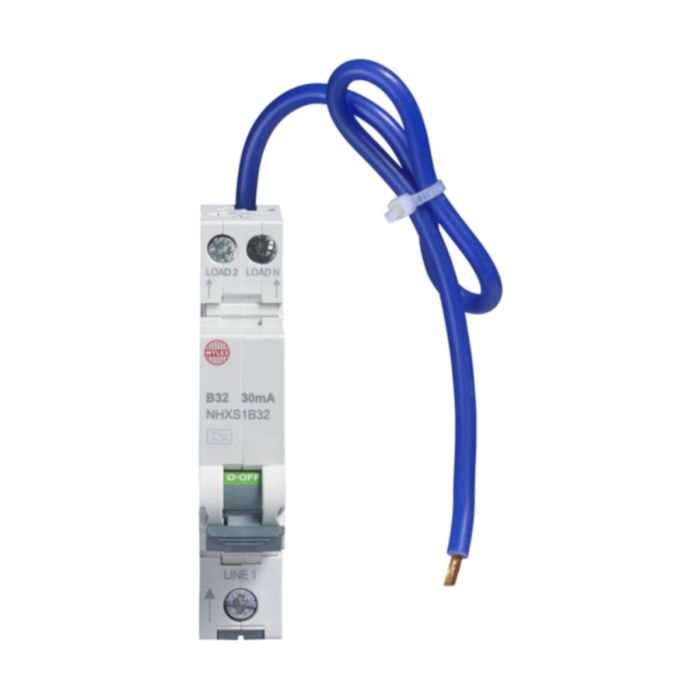

Wylex NHXS1B32 NH System SP&N Single Module B Curve RCBO 32A 30mA
New miniature RCBO Wylex NM Range of consumer Units, 6ka rated for domestic use, in type B for surges between 3-5 the start up current. Miniature RCBOs take up less space and provide more wiring space for the installer. Wylex RCBOs go one step further and have switched neutral built in as standard, live and neutral conductors do not have to be disconnected for insulation resistance testing.
Stock available Next working day
SKU
WYLEX-NHXS1B32
£16.95 £20.34
Product Downloads
Product Categories
| SKU | WYLEX-NHXS1B32 |
|---|---|
| Manufacturer Part Code | NHXS1B32 |
| Product Range | NH System |
| Current Rating | 32A |
| Trip Type | Type B |
| Short Circuit Rating | 6 kA |
| Sensitivity | 30 mA |
| Mounting Method | DIN Rail |
| Ingress Protection | IP20 |
| Is on Sale | No |
| Brand | NH System | |
| Circuit Breakers | Description | Product | RCBO | |
| Circuit Breakers | Description | Product Type | SP&N Single Module B Curve | |
| Circuit Breakers | Description | Product | RCBO | |
| Circuit Breakers | Dimensions | Height (EF008809) | 90 mm | |
| Circuit Breakers | Features | Ingress Protection (EF005474) | IP20 | |
| Circuit Breakers | Features | Mounting (EF000003) | DIN Rail | |
| Circuit Breakers | Features | Pole Configuration | SP+N | |
| Circuit Breakers | Features | Sensitivity | 30 mA | |
| Circuit Breakers | Features | Short Circuit Rating | 6 kA | |
| Circuit Breakers | Features | Trip Type | Type B | |
| Circuit Breakers | General | Standards | IEC 61009-1 | |
| Circuit Breakers | Technical Data | Current Rating (EF000227) | 32 A | |
| Circuit Breakers | Technical Data | Voltage | 195-240 V |
