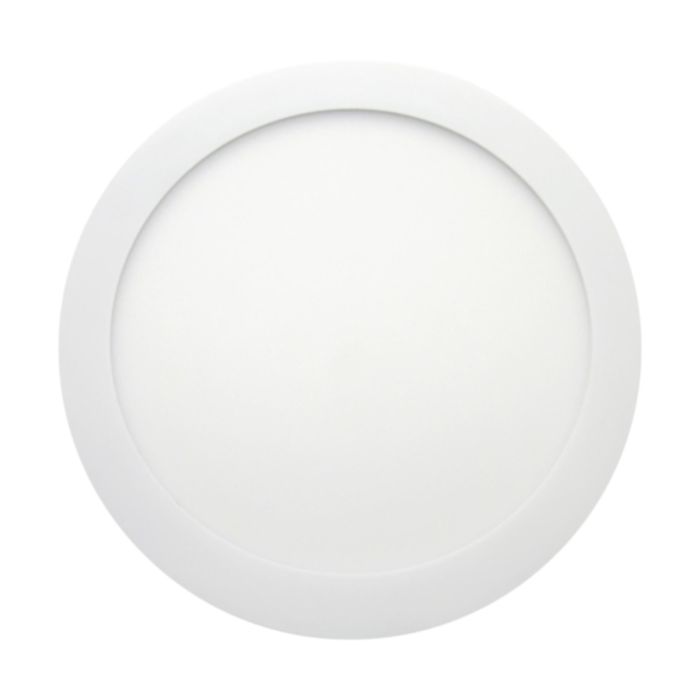

BELL 09732 Arial LED Round Panel 18W 240mm 4000K
The super slim design of the BELL Arial LED Round Panel makes this range of products ideal for office & educational environments alike. The complete range covers cut outs ranging from 130mm up to 282mm.
- Super slimline profile
- Remote Micro Driver
- Complete range covering sizes 146mm - 300mm
- Flicker Free Driver to ensure safety in public areas
- 30000 Hours
Stock available 2-3 Working days
SKU
BELL-09732
£17.98 £21.58
Product Downloads
Product Categories
18W ARIAL Round LED Panel - 240mm, 4000K
| SKU | BELL-09732 |
|---|---|
| Manufacturer Part Code | 09732 |
| Warranty | 3 Years |
| Product Range | Arial |
| Product Finish | 4000K |
| Material | Aluminium |
| Mounting Position | Ceiling |
| Ingress Protection | IP44 |
| Depth (mm) | 12.50 mm |
| Overall Diameter (mm) | 225.00 mm |
| Cut out diameter (mm) | 210.00 mm |
| Voltage | 220-240V |
| Wattage | 18W |
| Colour Temperature | 4000K |
| Colour Rendering Index | 85 |
| Light Output | 1,800.00 lm |
| LED Driver Included? | Yes |
| Lamp Type | LED Fixed |
| Dimmable | No |
| Fire Rated | No |
| Emergency | No |
| Face Shape | Circular |
| PIR Included | No |
| Cover Type | Diffuser |
| Cover Included | Yes |
| Cover material | PMMA |
| Is on Sale | No |
| Brand | Arial | |
| Luminaires | Description | Face Shape | Circular | |
| Luminaires | Description | Lamp Type | LED Fixed | |
| Luminaires | Description | Product | Luminaire | |
| Luminaires | Description | Product Type | LED Round Panel | |
| Luminaires | Description | Product | Luminaire | |
| Luminaires | Description | Type | Flat Panel | |
| Luminaires | Dimensions | Cut-Out Diameter | 210 mm | |
| Luminaires | Dimensions | Depth (EF000049) | 1.6|12.5 mm | |
| Luminaires | Dimensions | Overall Diameter | 225 mm | |
| Luminaires | Features | Cover Included | Y | |
| Luminaires | Features | Cover Type | Diffuser | |
| Luminaires | Features | Dimmable | N | |
| Luminaires | Features | Ingress Protection (EF005474) | IP44 | |
| Luminaires | Features | Mounting Type | Recessed | |
| Luminaires | Features | PIR Included | N | |
| Luminaires | Features | Wattage | 18 W | |
| Luminaires | General | Warranty | 3 Years | |
| Luminaires | Material & Finish | Cover Material | PMMA | |
| Luminaires | Material & Finish | Housing Material | Aluminium | |
| Luminaires | Technical Data | Colour Rendering Index | 85 | |
| Luminaires | Technical Data | Colour Temperature | 4000 K | |
| Luminaires | Technical Data | Light Output | 1800 Lm | |
| Luminaires | Technical Data | Voltage | 220-240 V |
