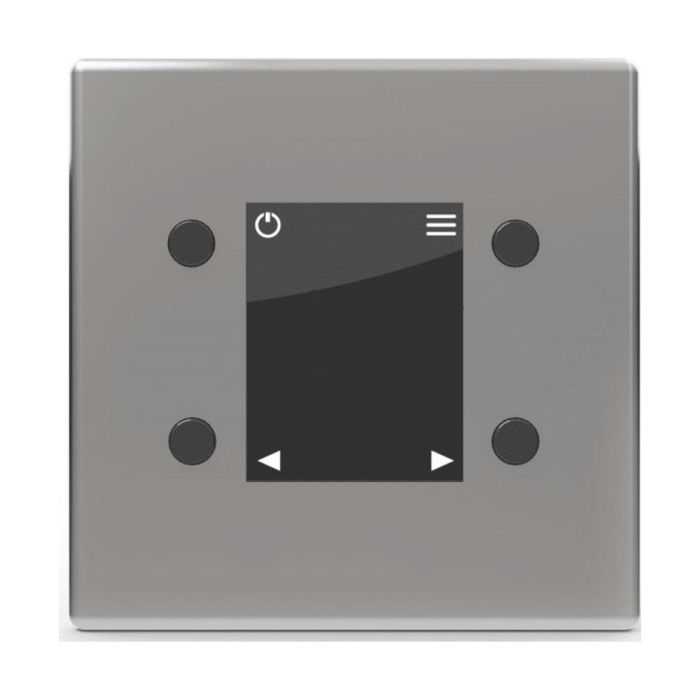

Button-Press DMX 512 Wall Control Panel 1 Zone (RGB/RGBW) (Stainless Steel)
Single-Zone 1-4 Channels (Suitable For RGB/RGBW LEDs)
- Commercial Grade RGBW LED Controller
- Remembers the last setting when powered on/off (even by the mains 240v)
- 4-channel DMX control for RGB, RGBW
- Touch screen with colour wheel allowing choosing any shade of any colour
- Create custom colours / whites using individual R/G/B/W 0-100% buttons
- Fully dimmable
- Colour scroll options
- You can have several receivers all controlled from 1 controller
- You can wire multiple strips back to one receiver
- Sound To Light function
Estimated delivery 3-5 Working days
SKU
INST-CT-DMX-BS
£239.76 £287.71
Product Categories
DMX controllers are a great option for your DMX lighting projects.
It enables simple on/off switching, dimming control, and colour selection. A sound trigger mode and a basic colourfade are also included. The operation of this DMX controller is designed to mimic a normal wall dimmer, allowing easy operation of LED lighting by casual users. This DMX controller can be used in conjunction with InStyle’s RGB/RGBW colour-change. The controller is powered by your LED driver; connection is via a 4-pin Phoenix interface (see the product datasheet for information on wiring to RJ45).
- INPUT VOLTAGE: 12V or 24V
- IP RATING: IP20
- LENGTH: 86mm
- WIDTH: 86mm
- DEPTH: 4mm
- DIMMABLE: Yes
- CONSTRUCTION: Brushed steel
- DATA OUTPUT: DMX512 (4 channel)
- DATA CONNECTION: 4-pin Phoenix (connect to RJ45)
| SKU | INST-CT-DMX-BS |
|---|---|
| Manufacturer Part Code | CT-DMX-BS |
| Is on Sale | No |
