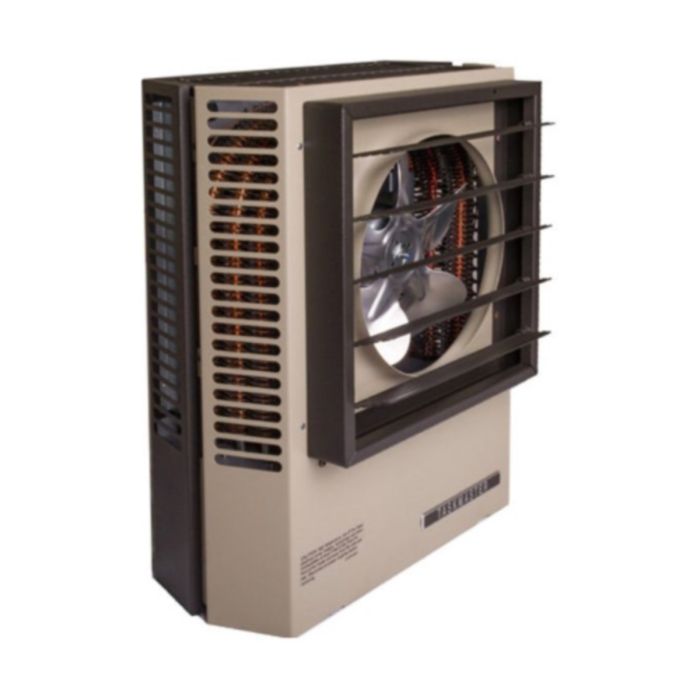

T&S CUH-07-3C Unit Heavy Duty 3Ph+N Heater c/w Integral Contactor 7.5kW 400V

APPLICATIONS Heavy duty unit heaters for horizontal or vertical mounting.

Ideal for space heating of larger areas such as warehouses, open plan stores, sports halls, factories and workshops. Also for anti-condensation heating in plant rooms.

When mounted with vertical discharge, can be used to recirculate high level hot air for improved heating efficiency.

FEATURES - Rugged heavy duty finned metal sheathed elements -

Totally enclosed permanently lubricated motor for increased reliability -

Automatic reset over temperature cut out for added safety -

Fan delay switch to purge unit of residual heat on switch off -

Draw through design for efficient air circulation -

Adjustable directional louvres for optimum airflow -

Flexibility of horizontal or vertical mounting

Design & Installation

To increase the flexibility of heavy-duty unit heaters there are a number of accessories available, including brackets for mounting unit heaters for vertical discharge that improve efficiency by recirculating high-level hot air.

ACCESSORIES AVAILABLE

• CUH-TH   Integral thermostat (range 10°C to 32°C)
• CUH-DTH   Integral de-stratification thermostat
• CUH-RTH   Remote thermostat with on/off switch (range 5°C to 35°C)
• CUH-FSW   Fan only switch
• CUH-C35   Wall bracket (3-5kW) – horizontal airflow
• CUH-C720   Wall bracket (7.5-15kW) – horizontal airflow
• CUH-C2550   Wall bracket (20-40kW) – horizontal airflow
• CUH-VB35   Vertical bracket (3-5kW) – vertical airflow
• CUH-VB720   Vertical bracket (7.5-15kW) – vertical airflow
• CUH-V2550   Vertical bracket (20-40kW) – vertical airflow
• CUH-EYE   Eye-bolt set for chain suspension
