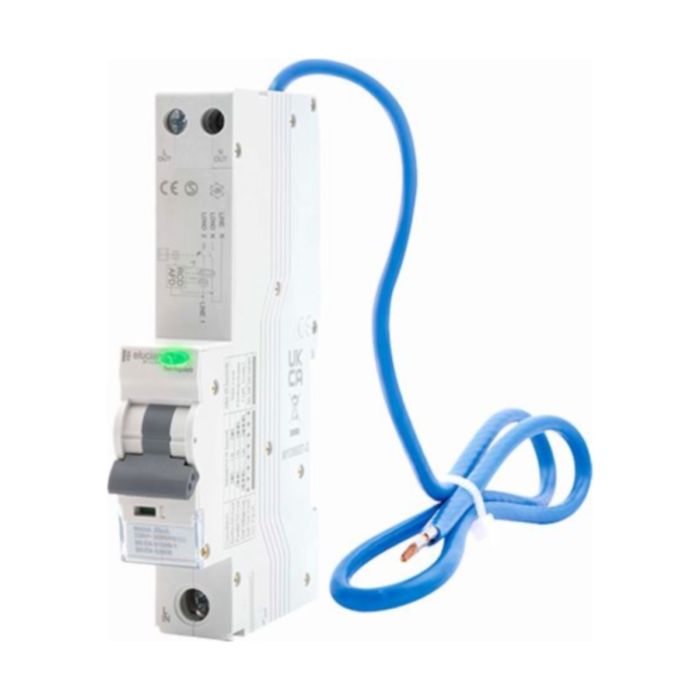

Elucian CU1AFDD40B 1 Pole True 6kA B Curve 40A AFDD & RCBO 30mA
Click AFDD CU1AFDD40B 1P 6Ka B Curve 40A Afdd+Rcbo 30Ma Type A
- Single pole + neutral
- Type A
- True 6kA
- 30mA trip current
- Arc fault protection, self monitoring
Stock available 2-3 Working days
SKU
SCOL-CU1AFDD40B
£75.22 £90.26
Product Downloads
Related Products
Elucian CU1AFDD10B 1 Pole True 6kA B Curve 10A AFDD & RCBO 30mASKU: SCOL-CU1AFDD10B£76.50 £91.80
Stock available 2-3 Working days
Elucian CU1AFDD20B 1 Pole True 6kA B Curve 20A AFDD & RCBO 30mASKU: SCOL-CU1AFDD20B£76.50 £91.80
Stock available 2-3 Working days
Elucian CU1AFDD6B 1 Pole True 6kA B Curve 6A AFDD & RCBO 30mASKU: SCOL-CU1AFDD6B£76.50 £91.80
Stock available 2-3 Working days
Elucian CU1AFDD16B 1 Pole True 6kA B Curve 16A AFDD & RCBO 30mASKU: SCOL-CU1AFDD16B£76.50 £91.80
Stock available 2-3 Working days
Elucian CU1AFDD32B 1 Pole True 6kA B Curve 32A AFDD & RCBO 30mASKU: SCOL-CU1AFDD32B£76.50 £91.80
Stock available 2-3 Working days
Click AFDD CU1AFDD40B 1P 6Ka B Curve 40A Afdd+Rcbo 30Ma Type A
| SKU | SCOL-CU1AFDD40B |
|---|---|
| Manufacturer Part Code | CU1AFDD40B |
| Warranty | 3 Years |
| Product Range | Elucian |
| Mounting Method | DIN Rail |
| Ingress Protection | IP20 |
| Current Rating | 40A |
| Trip Type | Type B |
| Sensitivity | 30 mA |
| Short Circuit Rating | 6 kA |
| Cable Capacity | 25 mm2 |
| Number of modules | 1 |
| Pole Configuration | 1P+N |
| Voltage | 240V |
| Standards | BS EN 61009-1 BS EN 62606 |
| Depth (mm) | 76.60 mm |
| Width (mm) | 17.80 mm |
| Height (mm) | 118.00 mm |
| Is on Sale | No |
| Brand | Elucian | |
| Circuit Breakers | Description | Product | AFDD | |
| Circuit Breakers | Description | Product Type | RCBO C Curve Type A True 6kA | |
| Circuit Breakers | Description | Qualifier | AFDD Devices | |
| Circuit Breakers | Dimensions | Height (EF008809) | 118 mm | |
| Circuit Breakers | Features | Mounting (EF000003) | DIN Rail | |
| Circuit Breakers | Features | Pole Configuration | SP+N | |
| Circuit Breakers | Features | Sensitivity | 30 mA | |
| Circuit Breakers | Features | Short Circuit Rating | 6 kA | |
| Circuit Breakers | Features | Trip Type | Type C | |
| Circuit Breakers | General | Standards | BS EN 62606 | |
| Circuit Breakers | General | Warranty | 3 Years | |
| Circuit Breakers | Technical Data | Current Rating (EF000227) | 32 A | |
| Circuit Breakers | Technical Data | RCD Type/Class | A | |
| Circuit Breakers | Technical Data | Voltage | 240 V |
