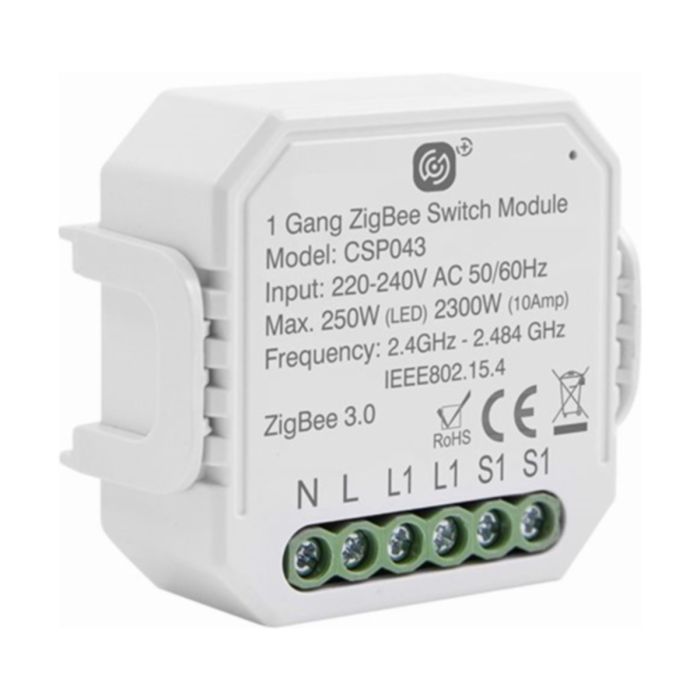

Click CSP043 10A 1 Gang Smart Switching Receiver
Click CSP043 1G Smart Switch Receiver
- Neutral required
- Utilises standard on/off switches
- 2300W resistive load maximum
- 250W LED load maximum
- Automated or manually control using the app
Click CSP043 1G Smart Switch Receiver
SKU | SCOL-CSP043 |
---|---|
Manufacturer Part Code | CSP043 |
Warranty | 2 Years |
Product Range | Click Smart+ |
Colour | White |
Material | Polycarbonate |
Depth (mm) | 18.00 mm |
Width (mm) | 46.00 mm |
Height (mm) | 46.00 mm |
Wattage | 250W |
Ingress Protection | IP20 |
Is on Sale | No |
Brand | Click Smart+ | |
Building Automation & Control Systems | Description | Product | Receiver | |
Building Automation & Control Systems | Description | Product Type | 2 Gang Smart Switching | |
Building Automation & Control Systems | Description | Qualifier | Zigbee | |
Building Automation & Control Systems | Dimensions | Depth (EF008810) | 18 mm | |
Building Automation & Control Systems | Features | Ingress Protection (EF005474) | IP20 | |
Building Automation & Control Systems | Features | Mounting (EF000003) | Surface | |
Building Automation & Control Systems | Features | Number of Channels | 2 | |
Building Automation & Control Systems | Features | Number of Gangs | 2 | |
Building Automation & Control Systems | Features | Number of Terminals | 6 | |
Building Automation & Control Systems | Features | Output Frequency | 2400|2484 MHz | |
Building Automation & Control Systems | Features | Sensing Range | <160 Metres | |
Building Automation & Control Systems | Features | Terminal Capacity | 3 x 1.5 mm2 | |
Building Automation & Control Systems | Features | Wattage | 100 W | |
Building Automation & Control Systems | Features | Wiring Method | Wireless | |
Building Automation & Control Systems | Features | c/w Remote | N | |
Building Automation & Control Systems | General | CE Approved | Y | |
Building Automation & Control Systems | General | Standards | BS EN 60669-2-1 BS EN 55035 BS EN 61000-3-2 BS EN 61000-3-3 BS EN 62311 | |
Building Automation & Control Systems | General | Warranty | 2 Years | |
Building Automation & Control Systems | Material & Finish | Colour (EF000007) | White | |
Building Automation & Control Systems | Technical Data | Maximum Humidity | 90 % | |
Building Automation & Control Systems | Technical Data | Maximum Temperature Range | 40 Degrees C | |
Building Automation & Control Systems | Technical Data | Minimum Humidity | 10 % | |
Building Automation & Control Systems | Technical Data | Minimum Temperature Range | -10 Degrees C | |
Building Automation & Control Systems | Technical Data | Voltage Frequency | 50/60 Hz | |
Building Automation & Control Systems | Technical Data | Voltage | 220-240 V |
