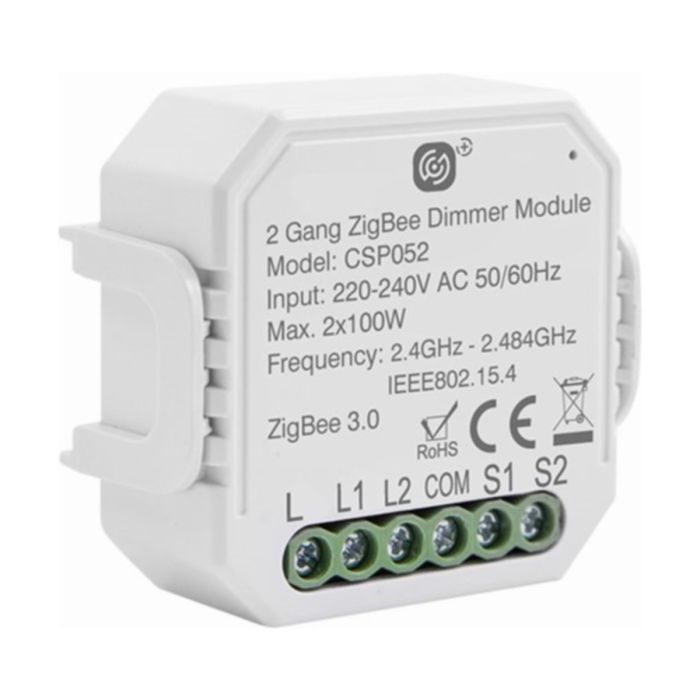

Click CSP052 100W 2 Gang Smart Dimming Receiver
Click CSP052 2G Smart Dimming Receiver
- No neutral required
- Utilises retractive switch dimming
- 2 x 100W LED load maximum
- Automated or manually control using the app
Stock available 2-3 Working days
SKU
SCOL-CSP052
£51.35 £61.62
Product Downloads
Product Categories
Click CSP052 2G Smart Dimming Receiver
| SKU | SCOL-CSP052 |
|---|---|
| Manufacturer Part Code | CSP052 |
| Warranty | 2 Years |
| Product Range | Click Smart+ |
| Colour | White |
| Material | Polycarbonate |
| Depth (mm) | 18.00 mm |
| Width (mm) | 46.00 mm |
| Height (mm) | 46.00 mm |
| Wattage | 100W |
| Ingress Protection | IP20 |
| Is on Sale | No |
| Brand | Click Smart+ | |
| Building Automation & Control Systems | Description | Product | Receiver | |
| Building Automation & Control Systems | Description | Product Type | 1 Gang Smart Dimming | |
| Building Automation & Control Systems | Description | Qualifier | Zigbee | |
| Building Automation & Control Systems | Dimensions | Depth (EF008810) | 18 mm | |
| Building Automation & Control Systems | Features | Ingress Protection (EF005474) | IP20 | |
| Building Automation & Control Systems | Features | Mounting (EF000003) | Surface | |
| Building Automation & Control Systems | Features | Number of Channels | 1 | |
| Building Automation & Control Systems | Features | Number of Gangs | 1 | |
| Building Automation & Control Systems | Features | Number of Terminals | 6 | |
| Building Automation & Control Systems | Features | Output Frequency | 2400|2483.5 MHz | |
| Building Automation & Control Systems | Features | Sensing Range | <160 Metres | |
| Building Automation & Control Systems | Features | Terminal Capacity | 3 x 1.5 mm2 | |
| Building Automation & Control Systems | Features | Wattage | 150 W | |
| Building Automation & Control Systems | Features | Wiring Method | Wireless | |
| Building Automation & Control Systems | Features | c/w Remote | N | |
| Building Automation & Control Systems | General | CE Approved | Y | |
| Building Automation & Control Systems | General | Standards | BS EN 60669-2-1 BS EN 55035 BS EN 61000-3-2 BS EN 61000-3-3 BS EN 62311 | |
| Building Automation & Control Systems | General | Warranty | 2 Years | |
| Building Automation & Control Systems | Material & Finish | Colour (EF000007) | White | |
| Building Automation & Control Systems | Technical Data | Maximum Humidity | 90 % | |
| Building Automation & Control Systems | Technical Data | Maximum Temperature Range | 40 Degrees C | |
| Building Automation & Control Systems | Technical Data | Minimum Humidity | 10 % | |
| Building Automation & Control Systems | Technical Data | Minimum Temperature Range | -10 Degrees C | |
| Building Automation & Control Systems | Technical Data | Voltage Frequency | 50/60 Hz | |
| Building Automation & Control Systems | Technical Data | Voltage | 220-240 V |
