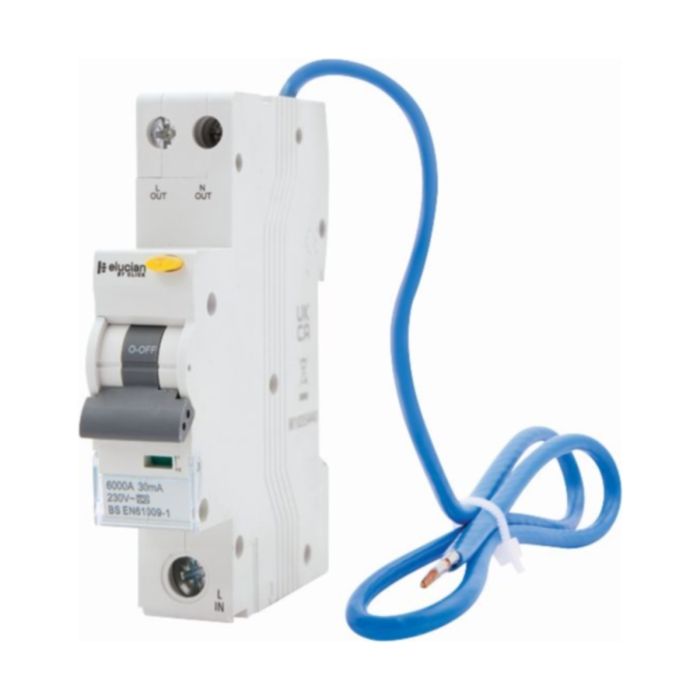

Elucian CU1RCBO20C 1 Pole True 6kA C Curve 20A 30mA RCBO
Click RCBO CU1RCBO20C 1 Pole 6Ka C Curve 20A Rcbo 30Ma A Class
- Single pole + neutral
- Type A
- True 6kA
- 30mA trip current
Stock available 2-3 Working days
SKU
SCOL-CU1RCBO20C
£11.00 £13.20
Product Downloads
Related Products
Elucian CU1RCBO10B 1 Pole True 6kA B Curve 10A 30mA RCBOSKU: SCOL-CU1RCBO10B£10.69 £12.83
Stock available Next working day
Elucian CU1RCBO6B 1 Pole True 6kA B Curve 6A 30mA RCBOSKU: SCOL-CU1RCBO6B£10.69 £12.83
Stock available Next working day
Elucian CU1RCBO16B 1 Pole True 6kA B Curve 16A 30mA RCBOSKU: SCOL-CU1RCBO16B£10.69 £12.83
Stock available Next working day
Elucian CU1RCBO20B 1 Pole True 6kA B Curve 20A 30mA RCBOSKU: SCOL-CU1RCBO20B£10.69 £12.83
Stock available Next working day
Elucian CU1RCBO32C 1 Pole True 6kA C Curve 32A 30mA RCBOSKU: SCOL-CU1RCBO32C£11.00 £13.20
Stock available 2-3 Working days
Elucian CU1RCBO40C 1 Pole True 6kA C Curve 40A 30mA RCBOSKU: SCOL-CU1RCBO40C£11.00 £13.20
Stock available 2-3 Working days
Elucian CU1RCBO10C 1 Pole True 6kA C Curve 10A 30mA RCBOSKU: SCOL-CU1RCBO10C£11.00 £13.20
Stock available 2-3 Working days
Elucian CU1RCBO6C 1 Pole True 6kA C Curve 6A 30mA RCBOSKU: SCOL-CU1RCBO6C£11.00 £13.20
Stock available 2-3 Working days
Elucian CU1RCBO16C 1 Pole True 6kA C Curve 16A 30mA RCBOSKU: SCOL-CU1RCBO16C£11.00 £13.20
Stock available 2-3 Working days
Elucian CU1RCBO32B 1 Pole True 6kA B Curve 32A 30mA RCBOSKU: SCOL-CU1RCBO32B£10.69 £12.83
Stock available Next working day
Elucian CU1RCBO40B 1 Pole True 6kA B Curve 40A 30mA RCBOSKU: SCOL-CU1RCBO40B£10.69 £12.83
Stock available Next working day
Click RCBO CU1RCBO20C 1 Pole 6Ka C Curve 20A Rcbo 30Ma A Class
| SKU | SCOL-CU1RCBO20C |
|---|---|
| Manufacturer Part Code | CU1RCBO20C |
| Warranty | 3 Years |
| Product Range | Elucian |
| Current Rating | 20A |
| Trip Type | Type C |
| Short Circuit Rating | 6 kA |
| Sensitivity | 30 mA |
| Pole Configuration | 1P |
| Voltage | 240V |
| Mounting Method | DIN Rail |
| Ingress Protection | IP20 |
| Depth (mm) | 76.60 mm |
| Height (mm) | 91.80 mm |
| Width (mm) | 17.80 mm |
| Cable Capacity | 25 mm2 |
| Standards | BS EN 61009-1 |
| Is on Sale | No |
| Brand | Elucian | |
| Circuit Breakers | Description | Product | RCBO | |
| Circuit Breakers | Description | Product Type | B Curve Type A True 6kA | |
| Circuit Breakers | Description | Qualifier | RCBO Devices | |
| Circuit Breakers | Dimensions | Height (EF008809) | 91.8 mm | |
| Circuit Breakers | Features | Mounting (EF000003) | DIN Rail | |
| Circuit Breakers | Features | Pole Configuration | Single Pole (1P) | |
| Circuit Breakers | Features | Sensitivity | 30 mA | |
| Circuit Breakers | Features | Short Circuit Rating | 6 kA | |
| Circuit Breakers | Features | Trip Type | Type B | |
| Circuit Breakers | General | CE Approved | Y | |
| Circuit Breakers | General | Standards | BS EN 61009-1 | |
| Circuit Breakers | General | Warranty | 3 Years | |
| Circuit Breakers | Technical Data | Current Rating (EF000227) | 20 A | |
| Circuit Breakers | Technical Data | RCD Type/Class | A | |
| Circuit Breakers | Technical Data | Voltage | 240 V |
