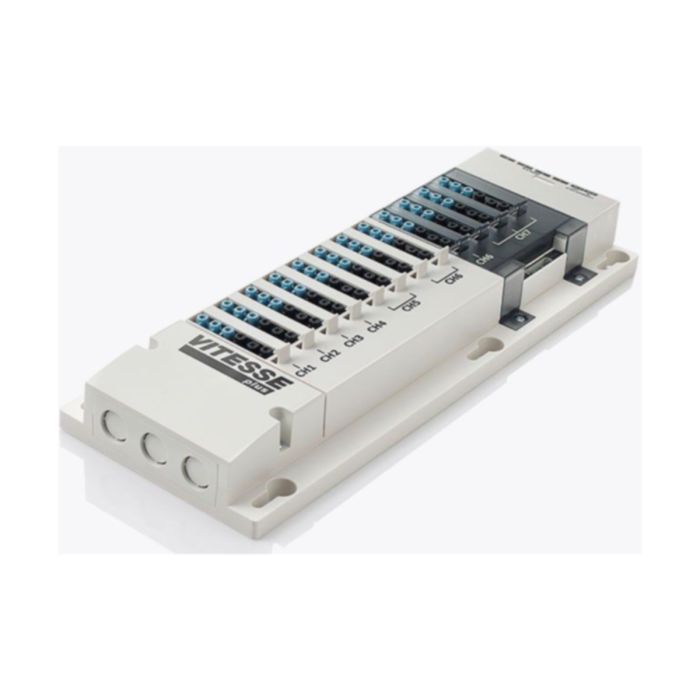

The latest generation of Vitesse Plus LCM has been engineered to adapt to changing environments.
With 7 channels and 12 outputs, the installation process is simplified. Up to 4 detectors can be connected to the Vitesse Plus LCM, maximising the capacity to save energy and money. With 11 SELV connections and the ability to facilitate graduated dimming, the Vitesse Plus LCM takes lighting control to the next level of functionality.
For easy installation and wiring
Ease of installation – Four M6 keyways allow you to fix to the slab in the ceiling void, or channel nut fixings for rod suspension or fixing to a cable basket.
Simple wiring and connectivity – There is a spacious wiring compartment with rear or side entry cable knock outs for connecting mains and switch inputs. With 12, 6-pole pluggable outputs grouped over 7 channels, Vitesse Plus offers the perfect solution to most commercial, retail and education applications.
Graduated dimming functionality – The lighting within a space dims progressively from the source of natural illuminance in response to changes in natural light levels. This maximises the use of daylight within a space and minimises energy consumption and over lighting of the space.
Absence recovery – After an occupancy time out period has elapsed in absence mode, the unit temporarily enters a presence mode for 10 seconds allowing the occupants movement to bring the lights back on.
Switch detection time – This ensures that if a switch is activated and no movement is detected the lights will switch off after 10 seconds, minimising unnecessary lit space.
Interface flexibility
Four RJ45 inputs allow you to connect detectors and scene plates. The LCM has SELV connections which allows for the connection of up to 5 centre biased retractive switches and one keyswitch for ELT.
A full range of presence detectors are available including mid-range and long range microwave detectors and both flush mount and mini PIRs. There is also a range of mounting accessories for detectors.
Scene plates are available in a white or brushed stainless steel finish.
Corridor hold is available by simply linking LCMs together using a 2 core cable and connecting to the dedicated corridor hold terminals no area controllers or networking is required.
