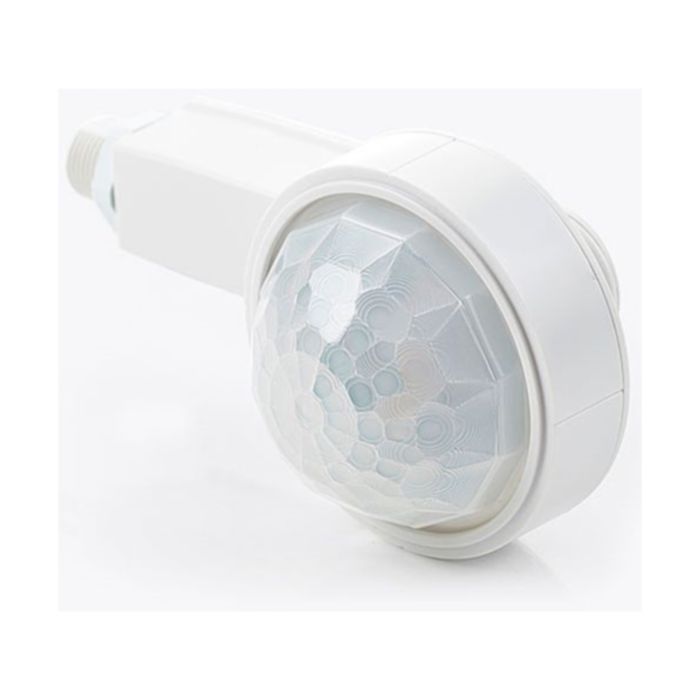

CP Electronics Presence Detector High Sensitivity PIR Direct Dim
CPE EBDHS-MB-DD H/S PIR Presence Detec
- Groundbreaking detection range up to 40m at a 15m mounting height
- Maximum mounting height up to 20m dependent on operating parameters
- 360° presence and absence detection
- Unique lens technology – high sensitivity within the detection range
- Supplied with adjustable masking shields to tailor detection zones
- Verify feature reduces false triggering by ensuring detection from more than one of the internal sensors
- All functionality is fully programmable using either the UHS5 or UNLCDHS handsets
- Switching/dimming with lux level lensing
- Pre-wired with 1m cable length
- Maintained illuminance (daylight linking or daylight harvesting)
Estimated delivery Please call Sales TBC
SKU
CPE-EBDHS-MB-DD
£117.32 £140.78
Product Downloads
Product Categories
CPE EBDHS-MB-DD H/S PIR Presence Detec
| SKU | CPE-EBDHS-MB-DD |
|---|---|
| Manufacturer Part Code | EBDHS-MB-DD |
| Warranty | 5 Years |
| Material | Plastic |
| Ingress Protection | IP65 |
| Mounting Method | Batten |
| Depth (mm) | 74.00 mm |
| Voltage | 230V |
| Number of ways | 1 |
| Detection Distance | 40M |
| Time Lag Range | 10s-99m |
| Dimmable | Yes |
| c/w PIR? | Yes |
| c/w Cable? | Yes |
| c/w Photocell? | Yes |
| Standards | EMC-2014/30/EU LVD-2014/35/EU |
| Number of Channels | 1 |
| Is on Sale | No |
| Standalone/Built In Lighting Controls | Description | Product | Presence Detector | |
| Standalone/Built In Lighting Controls | Description | Product Type | High Sensitivity PIR Direct Dim | |
| Standalone/Built In Lighting Controls | Features | Detection Distance | 40 Metres | |
| Standalone/Built In Lighting Controls | Features | Dimmable | Y | |
| Standalone/Built In Lighting Controls | Features | Ingress Protection (EF005474) | IP65 | |
| Standalone/Built In Lighting Controls | Features | Maximum Load (W) | 2A W | |
| Standalone/Built In Lighting Controls | Features | Mounting (EF000003) | Batten | |
| Standalone/Built In Lighting Controls | Features | Number of Channels | 1 | |
| Standalone/Built In Lighting Controls | Features | Number of Ways | 1 | |
| Standalone/Built In Lighting Controls | Features | Supply Voltage | 230 V | |
| Standalone/Built In Lighting Controls | Features | Time Lag Range | 10s-99m | |
| Standalone/Built In Lighting Controls | Features | c/w Cable | Y | |
| Standalone/Built In Lighting Controls | Features | c/w Mounting Bracket | Y | |
| Standalone/Built In Lighting Controls | Features | c/w PIR | Y | |
| Standalone/Built In Lighting Controls | Features | c/w Photocell | Y | |
| Standalone/Built In Lighting Controls | General | CE Approved | Y | |
| Standalone/Built In Lighting Controls | General | Standards | EMC-2014/30/EU LVD-2014/35/EU | |
| Standalone/Built In Lighting Controls | General | Unit Weight | 0.15 kg | |
| Standalone/Built In Lighting Controls | General | Warranty | 5 Years |
