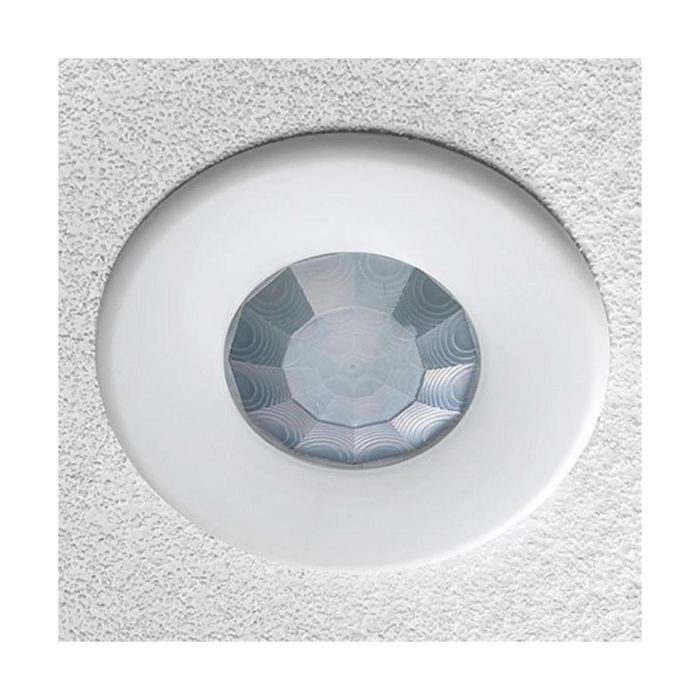

CP Electronics Presence Ceiling Detector DSI/DALI 8A 230V

The EBDSPIR-DD is a compact ceiling PIR Presence Detector, provide automatic control for lighting, heating and ventilation loads. The PIR sensor can be mounted either flush into a ceiling tile or using a surface mounting box. The low profile design means the unit can be mounted in a narrow ceiling void. No external control boxes are required as the unit is self contained. The simple plug in connections reduce installation time. The optional infrared remote handset allows the user to override the
  • Low profile design
  • 360° presence and absence detection
  • Programmable via our programming handset
  • Switching/dimming with lux level lensing
  • User handset available to control on/off, lux levels and preset scenes
  • Range up to 7m at 2.8m mounting height
  • Maintained illuminance (daylight linking or daylight harvesting)
  • Step-down illuminance
  • Suitable for all lighting types
  • Scene setting and recall
Stock available Next working day
SKU
CPE-EBDSPIR-DD
£71.89 £86.27
Product Downloads
Stock available Next working day
£71.89 £86.27
