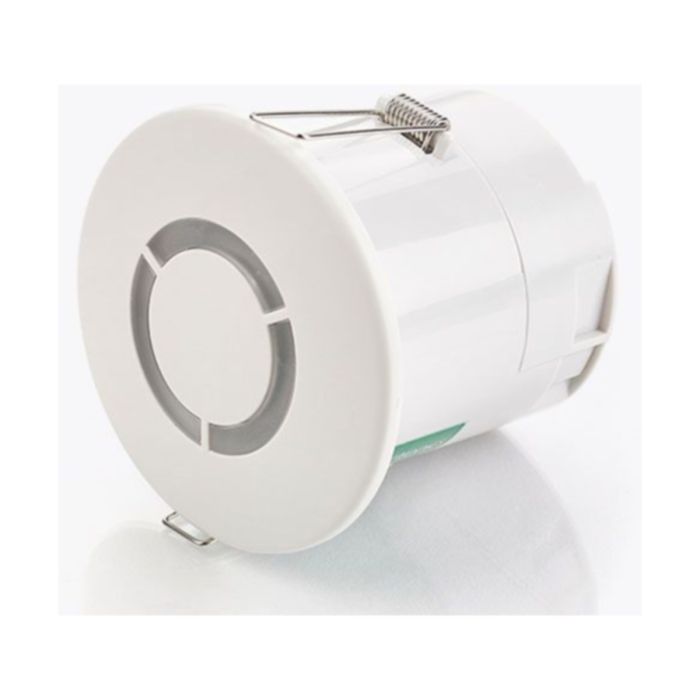

This is a mid-range Microwave Presence/Absence Detector, for the automatic control of lighting, heating and ventilation. This detector has a low profile design which allows flush mounting into a ceiling tile, or surface mounting using a detector back box. Its reduced head size makes it unobtrusive to occupants. The MWS6 detects movement using a highly sensitive microwave detector. The simple plug in connections reduce installation time. The CP Electronics MWS6-PRM is a compact IP40-rated recessed microwave presence/absence detector designed for ceiling flush mounting. It offers highly sensitive motion detection for automatic control of lighting, heating, and ventilation. Its low-profile, unobtrusive design ensures seamless integration into modern interiors, with easy plug-in connections and programmable settings via remote handset. Ideal for energy-efficient smart lighting systems
Low profile design
360° presence and absence detection
Programmable via our programming handset
Switching with lux level sensing
User handset available to control on/off and lux levels
The CP Electronics MWS6-PRM is a compact, IP40-rated microwave presence and absence detector designed for ceiling flush mounting. Its low-profile design allows it to be discreetly installed into ceiling tiles or surface-mounted with a back box, making it unobtrusive for occupants. This mid-range detector uses highly sensitive microwave technology to detect movement, enabling automatic control of lighting, heating, and ventilation systems. Installation is simplified with plug-in connections, reducing setup time. The device’s functionality is fully programmable via CP Electronics’ UHS5 or UNLCDHS infrared remote handsets, allowing users to override settings conveniently. Ideal for energy-efficient building management, the MWS6-PRM enhances comfort and reduces energy waste by activating systems only when presence is detected. Its robust design and IP40 rating make it suitable for indoor commercial and residential environments where discreet, reliable motion detection is required. This presence detector is a practical solution for modern lighting control, supporting sustainability and operational efficiency in various applications.
Model
Presence detector
Sensor type
High frequency
With DALI interface
No
Constant light control
Yes
HVAC-control
No
Forced switch off
Yes
Animal zone
No
Creep-under protection
No
Background monitoring
No
Networkable
No
Optimum mounting height
2.8 m
Staircase light controller
Yes
Bridging switch
No
Max. reach sideways
8 m
Max. reach frontally
8 m
Diameter reach on floor
16 m
Suitable for wireless transmission
No
Remote operation
Yes
Supplied remote control
Yes
Response value sensitivity adjustable
Yes
Response value luminosity adjustable
Yes
With signal unit
No
Teach-function for response value luminosity
No
Dim function with dimmer basic element
No
Mounting method
Flush-mounted
Material
Plastic
Material quality
Thermoplastic
Halogen free
Yes
Surface protection
Untreated
Surface finishing
Matt
Antimicrobial treatment
No
Colour
White
RAL-number (similar)
9002
Transparent
No
Degree of protection (IP)
IP40
degree of impact strength (IK)
IK05
Voltage type
AC
Frequency
50-50 Hz
Nominal voltage
230-230 V
Min. switch-on time
0.5 s
Max. duty cycle
99 min
Switch-off delay
10 s
Switching-on delay
1 s
Detection angle horizontal
360-360 °
Pivoting range sensor, horizontal
0-0 °
Pivoting range sensor, vertical
0-0 °
Response value luminosity
0-2000 lx
Max. switching power
2300 W
Suitable for C-load
No
Temperature
-10-50 °C
Number of switching zones
1
Max. starting current
80 A
Control current
4.7826086957 mA
Substation input
No
With alarm function
No
With acoustic sensor
No
Width
76 mm
Height
76 mm
Depth
68.5 mm
Built-in depth
64.8 mm
With connection cable
No
Connection cable length
0 mm
Operating / setting temperature
-10-50 °C
Storage temperature
-10-50 °C
Standby consumption
2.8913043478 mA
Mandatory neutral
Yes
Terminals capacity
2.5-2.5 mm²
Label space/information surface
No
Tube diameter for wall mounted product
64-64 mm
Maximum Input cable diameter
2.5 mm
Entry membrane gland type
Not applicable
Auto switch
No
More Information
SKU
CPE-MWS6-PRM
Manufacturer Part Code
MWS6-PRM
Voltage
230V
Time Lag Range
10sec to 99min
Is on Sale
No
Standalone/Built In Lighting Controls | Description | Product
Detector
Standalone/Built In Lighting Controls | Description | Product Type
Microwave Presence/Absence
Standalone/Built In Lighting Controls | Features | Supply Voltage
230 V
Standalone/Built In Lighting Controls | Features | Time Lag Range
10sec to 99min
