Stock available Next working day
SKU
CSS-FB113
£1.50 £1.80
Product Downloads
Product Categories

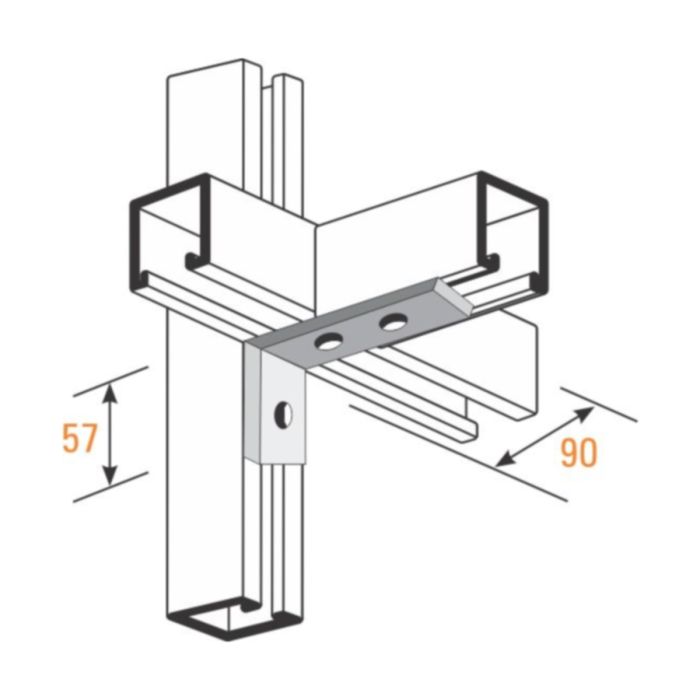

CSS FB113 Bracket Angle 3 Hole
| SKU | CSS-FB113 |
|---|---|
| Manufacturer Part Code | FB113 |
| Depth (mm) | 57.00 mm |
| Width (mm) | 40.00 mm |
| Length (mm) | 90.00 mm |
| Angle | 90 Degree |
| Slotted? | No |
| Static Load | 170 Newtons (N) |
| Thickness | £5.00 |
| Standards | BS6946 |
| Qualifier | One Hole Two Hole |
| Unit Weight | 0.24 kg |
| Material | Steel |
| Is on Sale | No |
| Channel | Description | Product | Bracket | |
| Channel | Description | Product Type | 3 Hole Angle | |
| Channel | Dimensions | Angle | 90 Degree | |
| Channel | Dimensions | Depth (EF008810) | 90 mm | |
| Channel | Dimensions | Length (EF004265) | 57 mm | |
| Channel | Dimensions | Width (EF008808) | 40 mm | |
| Channel | Features | Static Load | 170 Newtons (N) | |
| Channel | Features | Thread | 14 | |
| Channel | General | Unit Weight | 0.24 kg |
