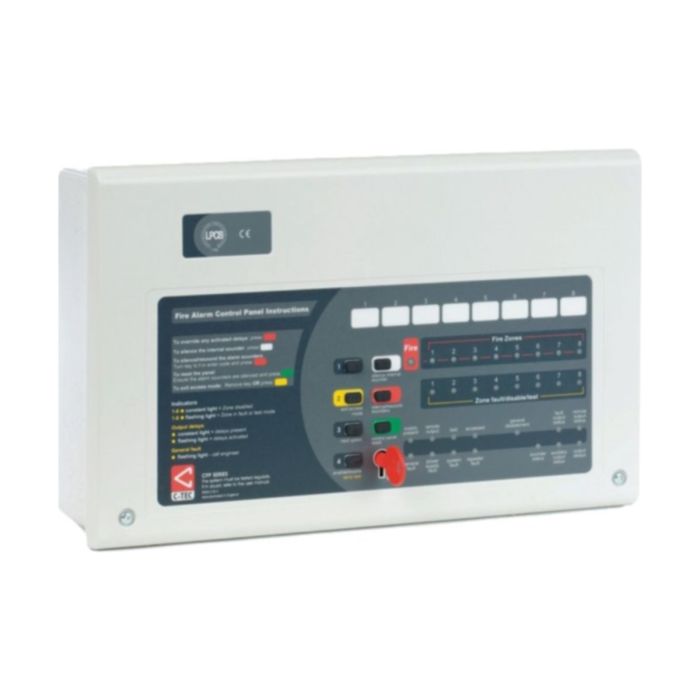

C-TEC CFP702-4 CFP Standard 2 Zone Fire Alarm Panel
The CTEC CFP702-4 Fire Alarm Panel is a CFP Standard 2 Zone Conventional Fire Alarm Panel suitable for small to medium-sized installations. It has two detection zones that can hold up to 32 devices per zone, as well as four sounder outputs. The panel provides class-leading EN54-2/4 performance specifications and has an integral battery backup.
- Requires 2x12V 3.2Ah VLRA Battery
- Colour-coded buttons and combined keypad/keyswitch entry.
- Two detector zone circuits.
- Four conventional sounder circuits
- Integral 1.5A EN54-4/A2 compliant switch mode PSU.
- Zone test, coincidence, zone delay and non-latching zones.
- Two on-board relays (Fire and Fault).
- Two open-collector outputs (Remote and Reset).
- Installer-friendly design.
- Low 25mA quiescent current.
- Multiple indicators.
- Space for two x 12V 3.3Ah VRLA batteries.
Stock available Next working day
SKU
CTEC-CFP702-4
£95.03 £114.04
Product Downloads
Product Categories
Choose your Call Points
Apollo Fire Detectors Apollo Conventional Manual Call Point SKU: CTEC-SC2900-001APO
Stock available Next working day
£11.04 £13.25
Eaton Fulleon CX Weatherproof Call Point c/w LED indicator, Glass + Plastic Resettable element 470R+680R SKU: FULL-4990047FULL-0420X
Estimated delivery 5-7 Working days
£38.40 £46.08
Fulleon CX Call Point c/w LED indicator, Glass + Plastic Resettable Element SKU: FULL-4920016FULL-0018XC
Stock available Next working day
£8.68 £10.42
Choose your Detectors
Apollo Fire Detectors Series 65 Optical Smoke Detector Flashing LED + Reed Switch SKU: CTEC-55000-315APO
Estimated delivery 5-7 Working days
£17.73 £21.28
Apollo Fire Detectors Series 65 Diode Base SKU: CTEC-45681-201APO
Stock available Next working day
£2.45 £2.94
Apollo Fire Detectors Series 65 BR Heat Detector Standard SKU: CTEC-55000-127APO
Stock available Next working day
£12.89 £15.47
Apollo Fire Detectors Series 65 CS Heat Detector Standard SKU: CTEC-55000-137APO
Stock available Next working day
£12.79 £15.35
Apollo Series 65 CR Heat Detector with Flashing LED - 55000-131APO SKU: CTEC-55000-131APO
Estimated delivery 5-7 Working days
£12.93 £15.52
Apollo Fire Detectors Series 65 A1R Heat Detector Standard SKU: CTEC-55000-122APO
Stock available Next working day
£12.20 £14.64
Apollo Fire Detectors Series 65 CR Heat Detector Standard SKU: CTEC-55000-132APO
Stock available Next working day
£11.90 £14.28
Apollo Series 65 BR Heat Detector with Flashing LED - 55000-126APO SKU: CTEC-55000-126APO
Estimated delivery 5-7 Working days
£12.91 £15.49
Choose your Sounders
Fulleon RoLP Solista Sounder with LED SKU: FULL-ROLSB/SV/RL/R/D
Stock available Next working day
£43.29 £51.95
Fulleon RoLP Roshni Sounder Red Deep Base SKU: FULL-ROLP/SV/R/D/3
Estimated delivery 5-7 Working days
£17.88 £21.46
Cranford Controls VTG sounder, 24v, 32 Tone, deep base, red-EN54-3 approved. SKU: CRAN-VTG-32E-DB-R
Estimated delivery 3-5 Working days
£16.85 £20.22
Fulleon RoLP Solista Combined Sounder & LED Beacon, Wall Mounted, Shallow Base SKU: FULL-ROLPSB/SV/RL/R/S
Stock available Next working day
£42.49 £50.99
Related Products
The CTEC CFP702-4 Fire Alarm Panel is a CFP Standard 2 Zone Conventional Fire Alarm Panel suitable for small to medium-sized installations. The panel comes with two detection zones that can hold up to 32 devices per zone, as well as four sounder outputs. It provides class-leading EN54-2/4 performance specifications and has an integral battery backup.
The CFP702-4 is easy to install and operate, with a user-friendly interface that makes it simple to program and customize to specific requirements. In addition, the panel has a range of programmable features that enable it to meet the needs of most installation scenarios.
| SKU | CTEC-CFP702-4 |
|---|---|
| Manufacturer Part Code | CFP702-4 |
| Material | Plastic |
| Ingress Protection | IP30 |
| Depth (mm) | 96.00 mm |
| Width (mm) | 380.00 mm |
| Length (mm) | 235.00 mm |
| c/w Batteries? | Yes |
| Voltage | 230V |
| Output Capacity | 3.2 A/Hr |
| Number of Zones | 2 |
| Maximum number of detectors | 25 |
| Standards | EN54-2/4 |
| Is on Sale | No |
| Fire & Intruder Alarms | Description | Product | Fire Alarm Panel | |
| Fire & Intruder Alarms | Description | Product Type | CFP Standard 2 Zone | |
| Fire & Intruder Alarms | Description | Qualifier | Fire | |
| Fire & Intruder Alarms | Dimensions | Depth (EF008810) | 96 mm | |
| Fire & Intruder Alarms | Features | Ingress Protection (EF005474) | IP30 | |
| Fire & Intruder Alarms | Features | Integral Charger | 350 mA | |
| Fire & Intruder Alarms | Features | Maximum number of detectors | 25 | |
| Fire & Intruder Alarms | Features | Number of Zones | 2 | |
| Fire & Intruder Alarms | Features | Output Capacity | 3.2 A/Hr | |
| Fire & Intruder Alarms | Features | Power Supply Mains | 230 V | |
| Fire & Intruder Alarms | Features | c/w Batteries | Y | |
| Fire & Intruder Alarms | Features | c/w Call Points | Y | |
| Fire & Intruder Alarms | General | CE Approved | Y | |
| Fire & Intruder Alarms | General | Standards | EN54-2/4 | |
| Fire & Intruder Alarms | General | Unit Weight | 1.75 kg | |
| Fire & Intruder Alarms | Technical Data | Current Rating (EF000227) | 1.5 A | |
| Fire & Intruder Alarms | Technical Data | Maximum Operating Temperature | 40 Degrees C |
