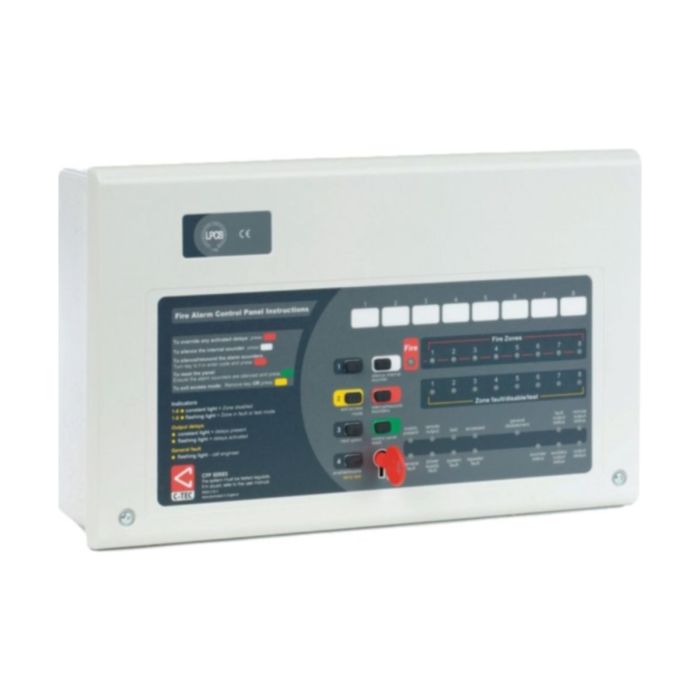

C-TEC CFP704-2 CFP AlarmSense 4 Zone 2 Wire Fire Alarm Panel
The CFP704-2 includes four AlarmSense zones, four conventional sounder circuits, class change & alert inputs and on-board fire & fault relays. A wide range of engineering functions are also provided including selectable zone delays, coincidence and non-latching zone facilities.
Optional repeaters and relay expansion boards also available.
- Colour-coded buttons and combined keypad/keyswitch entry.
- Four AlarmSense zone circuits
- Compatible with Apollo’s AlarmSense detectors, call points, sounders and visual indicators.
- Four conventional sounder circuits.
- Integral 1.5A EN54-4/A2 compliant switch mode PSU.
- Zone test, coincidence, zone delay and non-latching zones.
- Two on-board relays (Fire and Fault).
- Two open-collector outputs (Remote and Reset).
- ‘Class change’ and alert inputs.
- Installer-friendly design.
- Low 25mA quiescent current.
- Multiple indicators.
- System expansion connections provided for up to eight two-wire repeaters
- Space for two x 12V 3.3Ah VRLA batteries.
Stock available Next working day
SKU
CTEC-CFP704-2
£166.33 £199.60
Product Downloads
Product Categories
Related Products
The CFP704-2 includes four AlarmSense zones, four conventional sounder circuits, class change & alert inputs and on-board fire & fault relays. A wide range of engineering functions are also provided including selectable zone delays, coincidence and non-latching zone facilities.
Optional repeaters and relay expansion boards also available.
| SKU | CTEC-CFP704-2 |
|---|---|
| Manufacturer Part Code | CFP704-2 |
| Material | Plastic |
| Ingress Protection | IP30 |
| Depth (mm) | 96.00 mm |
| Width (mm) | 380.00 mm |
| Length (mm) | 235.00 mm |
| c/w Batteries? | Yes |
| Voltage | 230V |
| Output Capacity | 3.2 A/Hr |
| Number of wires | 2 |
| Number of Zones | 4 |
| Maximum number of detectors | 25 |
| Standards | EN54-2/4 |
| Is on Sale | No |
| Fire & Intruder Alarms | Description | Product | Fire Alarm Panel | |
| Fire & Intruder Alarms | Description | Product Type | CFP AlarmSense 4 Zone 2 Wire | |
| Fire & Intruder Alarms | Description | Qualifier | Fire | |
| Fire & Intruder Alarms | Dimensions | Depth (EF008810) | 96 mm | |
| Fire & Intruder Alarms | Features | Ingress Protection (EF005474) | IP30 | |
| Fire & Intruder Alarms | Features | Integral Charger | 350 mA | |
| Fire & Intruder Alarms | Features | Maximum number of detectors | 25 | |
| Fire & Intruder Alarms | Features | Number of Wires | 2 | |
| Fire & Intruder Alarms | Features | Number of Zones | 4 | |
| Fire & Intruder Alarms | Features | Output Capacity | 3.2 A/Hr | |
| Fire & Intruder Alarms | Features | Power Supply Mains | 230 V | |
| Fire & Intruder Alarms | Features | c/w Batteries | Y | |
| Fire & Intruder Alarms | Features | c/w Call Points | Y | |
| Fire & Intruder Alarms | General | CE Approved | Y | |
| Fire & Intruder Alarms | General | Standards | EN54-2/4 | |
| Fire & Intruder Alarms | General | Unit Weight | 1.75 kg | |
| Fire & Intruder Alarms | Technical Data | Current Rating (EF000227) | 1.5 A |
