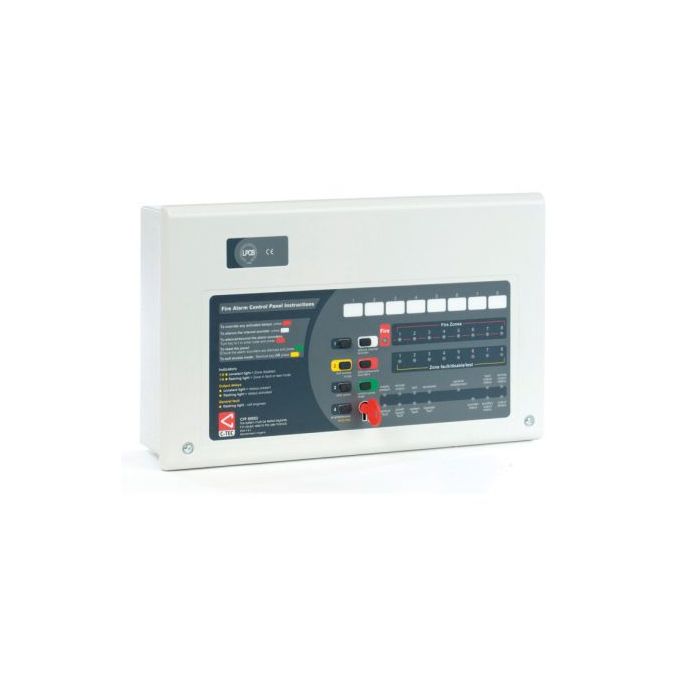

C-TEC CFP Standard 4 Zone Conventional Fire Alarm Panel (CFP704-4)
LPCB certified to EN54-2/4, C-TEC's CFP 4 zone conventional fire alarm panel offers an array of user and installer-friendly features at a very competitive price.
Supplied in an attractive flush or surface mountable plastic enclosure, it includes two detector zones, four conventional sounder circuits, class change and alert inputs, on-board fire and fault relays and combined keypad/keyswitch entry.
A wide range of engineering functions are also provided including selectable zone delays, coincidence and non-latching zone facilities. Comprehensive test and fault finding facilities are also provided.
- Requires 2 x 12V 3.2Ah VRLA batteries.
- Colour-coded buttons and combined keypad/keyswitch entry.
- Four detector zone circuits.
- Four conventional sounder circuits
- Integral 1.5A EN54-4/A2 compliant switch mode PSU.
- Zone test, coincidence, zone delay and non-latching zones.
- Two on-board relays (Fire and Fault).
- Two open-collector outputs (Remote and Reset).
- Installer-friendly design.
- Low 25mA quiescent current.
- Multiple indicators.
C-TEC Spare Key for CFP / XFP / ZFP Fire Panels (S-KEY)SKU: CTEC-S-KEY£1.64 £1.97
Stock available Next working day
UK Delivery:
Orders over £150 excluding VAT - FREE DELIVERY
Orders under £150 excluding VAT - Delivery charge of £7.50 excl VAT
A very small number of large, heavy items may attract an additional pallet charge to certain areas. This charge is calculated based on the overall order value and the delivery postcode area. Depending on your area, there will usually be a carriage paid order value threshold where FREE delivery can still be attained.
Same Day Despatch On In-Stock Items:
We despatch in-stock items on the same working day when they are ordered before 3PM GMT. Stock available: Next working day.
If You Have A Deadline:
Out of stock items can take up to the recommended Delivery Time, which you can find on every product page. We will notify you if they are likely to take any longer than this. If you have a deadline, please feel free to contact us by email or phone. We would like to work with you to arrange a better-suited delivery time or date. Estimated delivery: 1+ Days.
Next Working Day:
All in-stock items are despatched via traceable and insured carriers on a next day service. If there are items which state a longer delivery time then please contact us as we can arrange a next day on most items at an additional cost where applicable. Stock available: Next working day.
NON Stock Items:
Any items that are not stock items will be ordered and sent directly from our suppliers. All manufacturers we use are highly recommended and also despatched via traceable and insured carriers. These items may take longer than the expected delivery time. We will notify you in advance if this is likely to happen. Stock available: 1+ Day Lead time.
Received Damaged:
Any items being returned as damaged in transit, requiring replacement or refund, should notify us either verbally or in writing within 48 hours of delivery. They must be accompanied by clear photographs showing both the packaging - particularly any damage to the packaging - and also the damaged item(s). The correct paperwork can then be sent to us. The photographs will ensure that replacement or refund can then be processed with the minimum of delay.
| SKU | CTEC-CFP704-4 |
|---|---|
| Manufacturer Part Code | CFP704-4 |
| Material | Plastic |
| Ingress Protection | IP30 |
| Depth (mm) | 96.00 mm |
| Width (mm) | 380.00 mm |
| Length (mm) | 235.00 mm |
| c/w Batteries? | Yes |
| Voltage | 230V |
| Output Capacity | 3.2 A/Hr |
| Number of Zones | 4 |
| Maximum number of detectors | 25 |
| Standards | EN54-2/4 |
| Is on Sale | No |
| Fire & Intruder Alarms | Description | Product | Fire Alarm Panel | |
| Fire & Intruder Alarms | Description | Product Type | CFP Standard 4 Zone | |
| Fire & Intruder Alarms | Description | Qualifier | Fire | |
| Fire & Intruder Alarms | Dimensions | Depth | 96 mm | |
| Fire & Intruder Alarms | Features | Ingress Protection | IP30 | |
| Fire & Intruder Alarms | Features | Integral Charger | 350 mA | |
| Fire & Intruder Alarms | Features | Maximum number of detectors | 25 | |
| Fire & Intruder Alarms | Features | Number of Zones | 4 | |
| Fire & Intruder Alarms | Features | Output Capacity | 3.2 A/Hr | |
| Fire & Intruder Alarms | Features | Power Supply Mains | 230 V | |
| Fire & Intruder Alarms | Features | c/w Batteries | Y | |
| Fire & Intruder Alarms | Features | c/w Call Points | Y | |
| Fire & Intruder Alarms | General | CE Approved | Y | |
| Fire & Intruder Alarms | General | Standards | EN54-2/4 | |
| Fire & Intruder Alarms | General | Unit Weight | 1.75 kg | |
| Fire & Intruder Alarms | Technical Data | Current Rating | 1.5 A | |
| Fire & Intruder Alarms | Technical Data | Maximum Operating Temperature | 40 Degrees C |
