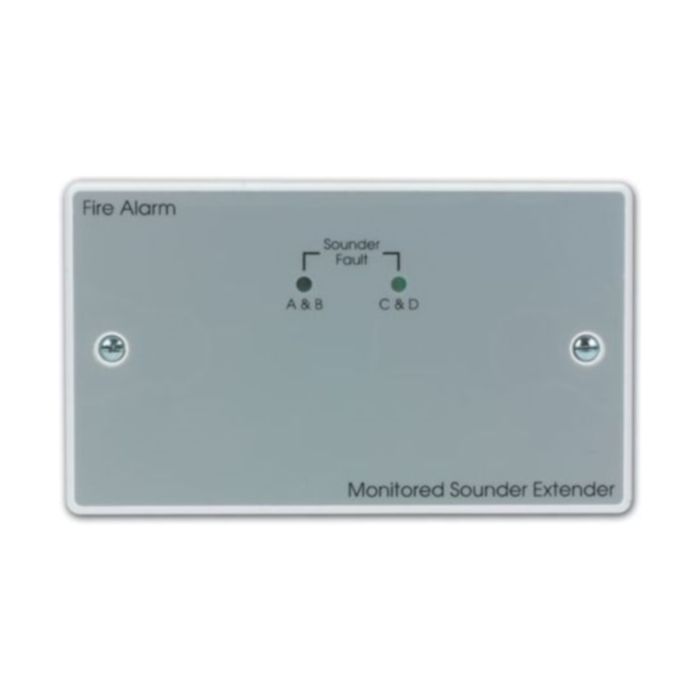

C-TEC 4 Zone Monitored Sounder Circuit Extender (FF502P)

C-TEC 4 Zone Monitored Sounder Circuit Extender (FF502P)

CTEC-FF502P
  • Provides four extra conventional sounder circuits with open and short circuit fault monitoring.
  • Compatible with most manufacturers' fire alarm control panels.
  • Supplied on a double gang plate.
  • Basic connection requires four wires: 24 VDC, 0V, Sounder ?Ve & Sounder +Ve.
  • Sounder -Ve & Sounder +Ve can be connected at the host panel or any convenient point on a sounder circuit (DO NOT SPUR). 24 VDC and 0V can be derived from the host panel or, alternatively, from an external PSU.
  • If connecting the FF502P to a C-TEC fire panel only three input control wires are required (Sounder -Ve is not required as our conventional panels have a common 0V rail).
  • Fits on standard UK 25mm flush or surface mount back boxes.

CE

SELL PACK QTY: 1

Estimated delivery

5-7 Working days
Excl. VAT: £62.69 Incl. VAT: £75.23
CTec FF502P Sounder Extender 4 Zone
PDF Icon Technical Data Sheet
View on Trimble Luckins
Description | Product TypeMonitored Sounder on Plate 4 Zone
Description | ProductExtender
SKU FF502P
Manufacturer C-TEC
Product Range MFP Range 4-28 Zone Microprocessor Control Panels
SKU CTEC-FF502P
Dimensions 146 W x 85 H x D 23mm (Can be mounted on a standard UK 25mm double gang flush or surface back box).
Operating Temp. -10ºC to +60ºC.
Quiescent Current Less than 5mA @ 27 VDC (includes monitoring current)
Notes A/B and C/D Trigger Inputs pull down to 0V.
EOL Resistor Value 4 x 6K8 0.25W for sounder circuits A, B, C and D
Operating Voltage 15-30 VDC
IP Rating IP40.
No of Sounder Circuits 4
Application Operation When the host sounder circuit is activated, the FF502P’s sounder circuits follow. If an open or short is detected on any extender circuit, the FF502P connects a 680Ω resistor across the host circuit to indicate a fault on the host sounder zone.
Construction Finish White PVC plate; Light grey label.
Max Sounder Output Current 400mA max. current per circuit. Total output current to be no greater than 1A.
