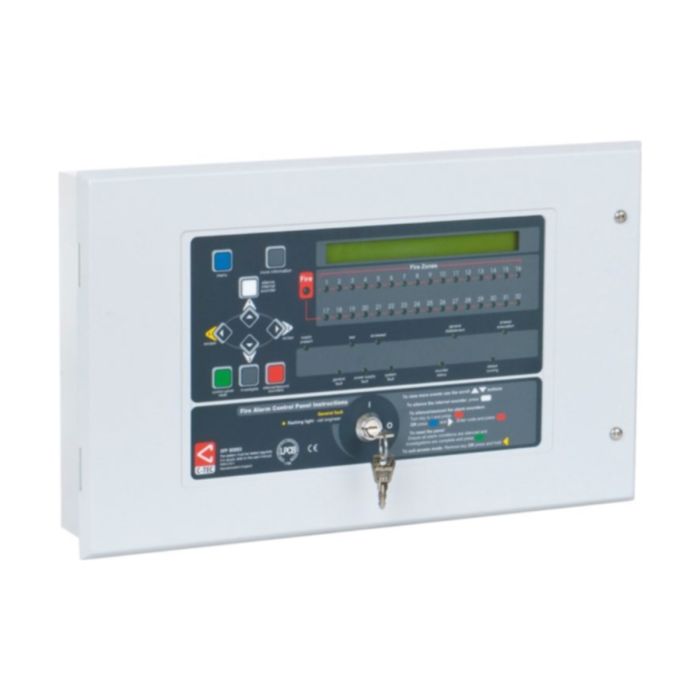

C-TEC XFP501/X XFP 1 Loop 32 Zone XP95/Discovery Fire Alarm Panel
- Requires 2x 12v 7Ah VLRA Batteries
- Third-party certified to EN54-2/4 by the Loss Prevention Certification Board (LPCB).
- Compatibility with Apollo's XP95/Discovery protocol.
- Two independently programmable conventional sounder circuits.
- Two programmable inputs.
- A fault output relay and three programmable relay outputs with voltage free changeover contacts.
- A selection of zone dependency/coincidence functions.
- A day/night (building occupied/unoccupied) function.
- An investigation delay period function.
- Phased evacuation facility.
- An alarm counter that records how many times the panel has been in alarm state.
- Powerful short circuit protected loop drivers, capable of supporting up to 40 loop powered 10mA sounders per loop.
- An integral EN54-4/A2 switch mode power supply.
- Adjustable contamination levels.
- Earth fault monitoring.
- Combined keypad / keyswitch entry to Access Levels 2 and 3.
- 999 event monitoring.
- Optional flush-mounting bezel and glazed stainless steel enclosure also available.
UK Delivery:
- Orders over £150 excluding VAT – FREE DELIVERY
- Orders under £150 excluding VAT – Delivery £7.50 + VAT
A very small number of large, heavy items may attract an additional charge. This charge is calculated based on the length/weight. Depending on your area, there will usually be a carriage-paid order value threshold where FREE delivery can still be attained.
Same Day Despatch On In-Stock Items:
We despatch in-stock items on the same working day when they are ordered before 3 PM GMT.
Delivery Charges for Length Items (UK Mainland):
- 1-2M Length Items: Free delivery to UK Mainland on orders over £500; for orders under £500, delivery is charged at £12.50 + VAT.
- 2M+ Length Items: Free delivery to UK Mainland on orders over £800; for orders under £800, delivery is charged at £15.00 + VAT.
- Pallet Delivery: For items requiring pallet delivery, free delivery is available for UK Mainland orders over £3000; for orders under £3000, a £50 delivery charge applies.
Delivery Charges for Scottish Highlands, Northern Ireland, and Channel Isles:
- Parcels: £20 + VAT delivery charge.
- 1-2M Length Items: £35 + VAT delivery charge.
- 2M+ Length Items: £55 + VAT delivery charge.
- Pallet Delivery: £120 + VAT delivery charge.
No free delivery is available for these regions.
If You Have a Deadline:
Out-of-stock items can take up to the recommended Delivery Time, which you can find on every product page. We will notify you if they are likely to take longer than this. If you have a deadline, please contact us by email or phone. We will work with you to arrange a better-suited delivery time or date.
Next Working Day:
All in-stock items are despatched via traceable and insured carriers on a next-day service. If certain items state a longer delivery time, please contact us as we can often arrange next-day delivery for most items at an additional cost where applicable.
NON-Stock Items:
Any items that are not stock items will be ordered and sent directly from our suppliers. All manufacturers we use are highly recommended and despatch their products via traceable and insured carriers. These items may take longer than the expected delivery time, but we will notify you in advance if this is likely to occur.
Received Damaged:
If any items are received damaged in transit and require a replacement or refund, please notify us verbally or in writing within 48 hours of delivery. Ensure that clear photographs are provided showing both the packaging—particularly any damage to it—and the damaged item(s). This will help us process the correct paperwork for a replacement or refund with minimal delay.
SKU | CTEC-XFP501/X |
---|---|
Manufacturer Part Code | XFP501/X |
Material | Metal |
Mounting Method | Flush |
Ingress Protection | IP30 |
Depth (mm) | 80.00 mm |
Width (mm) | 410.00 mm |
Length (mm) | 250.00 mm |
c/w Batteries? | Yes |
Voltage | 230V |
Addressable | Yes |
Output Capacity | 7 A/Hr |
Number of wires | 2 |
Number of Zones | 32 |
Number of Loops | 1 |
Standards | EN54-2/4 |
Is on Sale | No |
Fire & Intruder Alarms | Description | Product | Fire Alarm Panel | |
Fire & Intruder Alarms | Description | Product Type | XFP 1 Loop 32 Zone XP95/Discovery | |
Fire & Intruder Alarms | Description | Qualifier | Fire | |
Fire & Intruder Alarms | Dimensions | Depth (EF008810) | 80 mm | |
Fire & Intruder Alarms | Features | Addressable | Y | |
Fire & Intruder Alarms | Features | Ingress Protection (EF005474) | IP30 | |
Fire & Intruder Alarms | Features | Integral Charger | 680 mA | |
Fire & Intruder Alarms | Features | Mounting (EF000003) | Flush | |
Fire & Intruder Alarms | Features | Number of Loops | 1 | |
Fire & Intruder Alarms | Features | Number of Wires | 2 | |
Fire & Intruder Alarms | Features | Number of Zones | 32 | |
Fire & Intruder Alarms | Features | Output Capacity | 7 A/Hr | |
Fire & Intruder Alarms | Features | Power Supply Mains | 230 V | |
Fire & Intruder Alarms | Features | c/w Batteries | Y | |
Fire & Intruder Alarms | General | CE Approved | Y | |
Fire & Intruder Alarms | General | Standards | EN54-2/4 | |
Fire & Intruder Alarms | General | Unit Weight | 4.5 kg | |
Fire & Intruder Alarms | Technical Data | Current Rating (EF000227) | 3 A | |
Fire & Intruder Alarms | Technical Data | Maximum Operating Temperature | 40 Degrees C |
