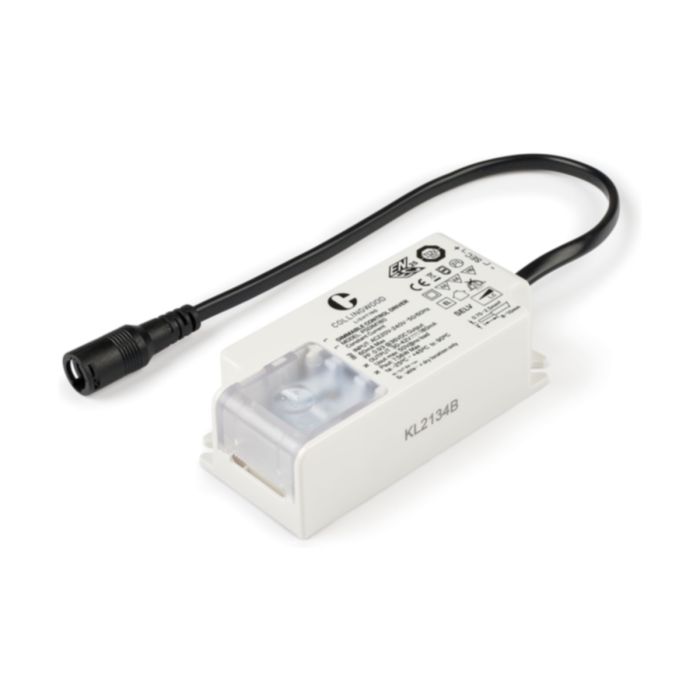

Collingwood PSDIM180 Driver Downlight Module Dim Cameta 85W 180mA
Cwood PSDIM180 LED Driver 85W 180mA
- Equivalent to 50W halogen
- MR16 for retrofit into existing housings
- Plug and Play connector for quick installation
Estimated delivery 2-3 Working days
SKU
CLW-PSDIM180
£15.47 £18.56
Product Downloads
Product Categories
A 25W constant current LED driver for 180mA Collingwood LED products. Fit up to 18x1W or 6x3W 350mA LED products, also compatible with Collingwood's new range of recessed LED retail lights. Fit up to 2 x RDSS or SQSS products. The PSDIM350 can be controlled by a 1-10v analogue dimmer if you wish to dim. Link up to ten PSDIM350 to one 1-10v dimmer by using a 1m sync cable provided, an extended sync cable of 4m is also available as a separate product to further extend the distance between each power supply.
| SKU | CLW-PSDIM180 |
|---|---|
| Manufacturer Part Code | PSDIM180 |
| Material | Plastic |
| Colour | White |
| Ingress Protection | IP20 |
| Depth (mm) | 30.00 mm |
| Width (mm) | 46.00 mm |
| Height (mm) | 118.00 mm |
| Voltage | 220-240V |
| Is on Sale | No |
| Transformers Drivers Ballasts | Description | Primary Current | 0.038 A | |
| Transformers Drivers Ballasts | Description | Primary Voltage | 220-240 V | |
| Transformers Drivers Ballasts | Description | Product | Driver | |
| Transformers Drivers Ballasts | Description | Product Type | Downlight Module | |
| Transformers Drivers Ballasts | Description | Qualifier | LED | |
| Transformers Drivers Ballasts | Description | Secondary Current | 0.18 A | |
| Transformers Drivers Ballasts | Description | Secondary Voltage Type | DC | |
| Transformers Drivers Ballasts | Description | Secondary Voltage | 42 V | |
| Transformers Drivers Ballasts | Dimensions | Depth (EF008810) | 30 mm | |
| Transformers Drivers Ballasts | Features | Connection Type (EF000124) | Pre-wired | |
| Transformers Drivers Ballasts | Features | Ingress Protection (EF005474) | IP20 | |
| Transformers Drivers Ballasts | General | CE Approved | Y | |
| Transformers Drivers Ballasts | General | Unit Weight | 0.103 kg | |
| Transformers Drivers Ballasts | Material & Finish | Colour (EF000007) | White | |
| Transformers Drivers Ballasts | Material & Finish | Material (EF001257) | Plastic | |
| Transformers Drivers Ballasts | Technical Data | Frequency | 50 Hz | |
| Transformers Drivers Ballasts | Technical Data | Number of Phases | Single |
