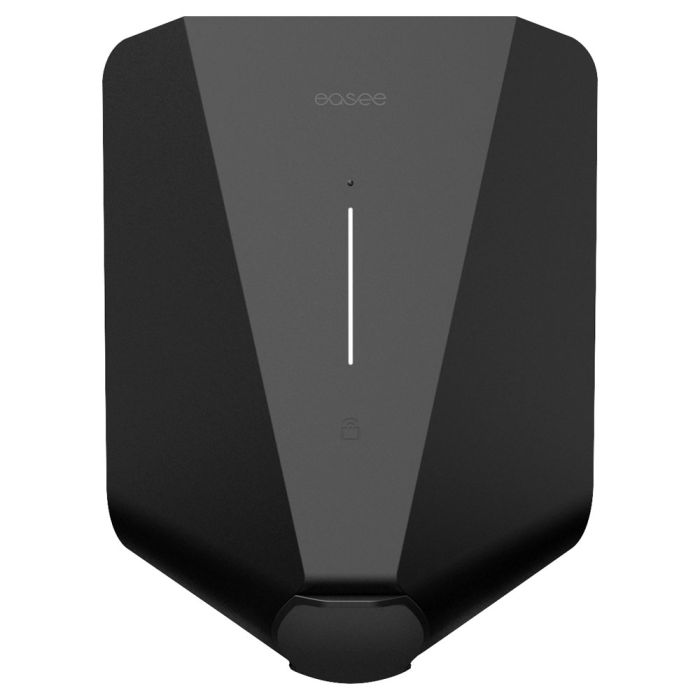

Easee 10223 Easee Charge Single Phase & 3Phase up to 22kW EV Charger in Black
With the Easee 10223 Charge it has never been easier to charge in commercial buildings and workplaces. With dynamic load balancing, Easee utilises all available electrical capacity in commercial buildings.
- 22kW EV Charger
- Fully dynamic charging (1 & 3 Phase)
- Reduces capacity requirements by up to 90%
- Install up to 101 chargers per fuse
- Automatic queuing system
- Load and phase balancing works on and offline
- Wifi connectivity and integrated eSIM
- Locking cable option
- Universal Type 2 Socket
- LED Charge Status Indicator
- One-touch control, RFID Access and App Control
- Software updates
- Designed to fit all electric vehicles
- Load up to 3 units per fuse
- Integrated RCD protection
With the Easee 10223 Charge it has never been easier to charge in commercial buildings and workplaces. With dynamic load balancing, Easee utilises all available electrical capacity in commercial buildings.
The Charging Robot distributes the available current automatically between units – so both employees and visitors can charge in a smart and safe way.
This intelligent charger can charge on both single phase and three phase and supports charging up to 22kW. The Easee charge features a standard type 2 connector.
The ultimate solution for delivering EV-Charging at scale for workplace, apartment blocks, car parks and fleet.
| G | Yes |
|---|---|
| Bluetooth | Yes |
| Colour | Black |
| DC Leakage Protection (6mA DC) | Yes |
| Dimensions (H x W x D) | 256 x 193 x 106mm |
| Dynamic Load | Yes |
| Ethernet (RJ45) | Yes |
| IK Rating | IK10 |
| IP Rating | IP54 |
| Maximum Current | 32A |
| Mounting | Wall or Pedestal |
| Number of Output Sockets | 1 |
| OCPP 1.6J | Yes |
| PME Protection | No |
| Power Output Per Socket | 22kW |
| Residual Current Detection (RCD) | Yes |
| RFID | Yes |
| Smartphone App | Yes |
| Socket Type | Type 2 |
| Solar Integration | No |
| Supply Phase | Single Phase or Three Phase |
| Supply Voltage | 230 or 400V AC |
| Tethered | No |
| Tethered Cable Length | N/Am |
| Type | Electric Vehicle Charger |
| Weight | 1.5kg |
| SKU | EASEE-10223 |
|---|---|
| Manufacturer Part Code | 10223 |
| Is on Sale | No |
| Type | AC Chargepoint |
|---|---|
| Supply Voltage | 230 or 400V AC |
| Supply Phase | Single or Three |
| Power Output Per Socket | 22kW |
| Maximum Current | 32A |
| Socket Type | Type 2 |
| Number of Output Sockets | 1 |
| Tethered | No |
| Tethered Cable Length | 0m |
| Dynamic Load Management | Yes |
| PME Protection | No |
| Residual Current Detection (Type A 30mA) | Yes |
| DC Leakage Protection (6mA DC) | Yes |
| Dimensions (H x W x D) | 256 x 193 x 106mm |
| Weight | 1.5kg |
| Warranty | 36 Months |
| IP Rating | IP54 |
| IK Rating | IK10 |
| Mounting | Wall or Post |
| Colour | Black |
| Smartphone App | Yes |
| Bluetooth | Yes |
| 4G | Yes |
| WiFi | Yes |
| Ethernet (RJ45) | No |
| RFID | Yes |
| OCPP 1.6J | Yes |
| Solar Integration | No |
