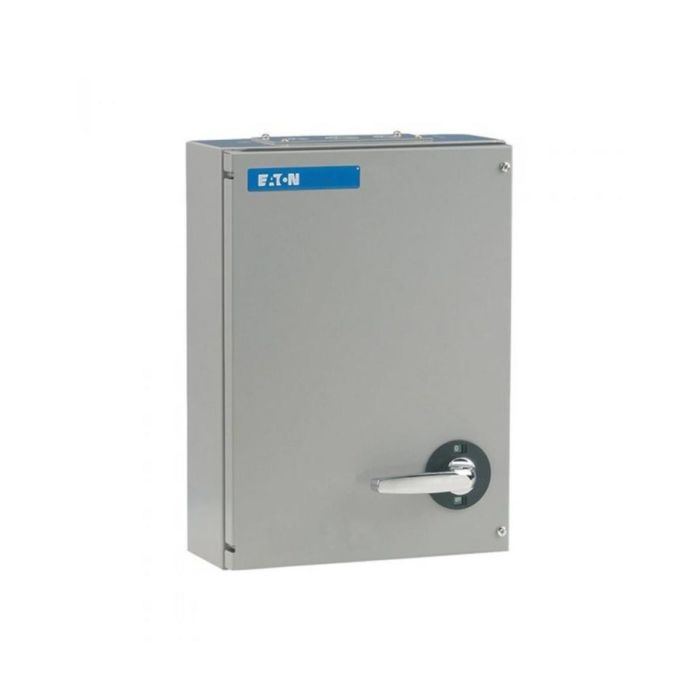

Eaton 60KXSC2F Exel 2 SP&SN c/w Fuse Links Switchfuse 63A Grey

HRC fuse carriers are designed for offset contact fuse links to BS 88: part 2, Eaton MEM HRC fuse links fitted to switch-disconnector-fuses are suitable on systems up to 415V ac, Eaton MEM fuses used in these products are also suitable for 250V DC systems

Size 351x310x173mm
Standards BS EN 60947-3, BS 88: Part 2
Material Sheet Steel (Enclosure)
Voltage Rating 415V AC (Ue), 250V DC
Current Rating 63A (Ie), 63A (AC22A), 63A (DC23)
Mounting Type Surface
Fixing Centre 273mm x 168mm
Number of Knockouts Six Knockouts
Entry Type Conduit
Cable Capacity 35 sq mm

Estimated delivery Please call sales TBC

SKU

EATON-60KXSC2F

£210.84 £253.01

Product Downloads

Product Categories

More Information
SKU	EATON-60KXSC2F
Manufacturer Part Code	60KXSC2F
Product Range	Exel 2
Material	Sheet Steel
Current Rating	63A
Voltage	415V
Depth (mm)	129.00 mm
Width (mm)	310.00 mm
Length (mm)	351.00 mm
Ingress Protection	IP41
Standards	BS EN 60947-3 BS 88
Is on Sale	No

Brand	Exel 2
Switchgear \| Description \| Product	Switchfuse
Switchgear \| Description \| Product Type	SP&SN c/w Fuse Links
Switchgear \| Dimensions \| Depth (EF008810)	129 mm
Switchgear \| Dimensions \| Length (EF004265)	351 mm
Switchgear \| Features \| Ingress Protection (EF005474)	IP41
Switchgear \| Features \| Mounting Type	Surface
Switchgear \| General \| Standards	BS EN 60947-3 BS 88
Switchgear \| Technical Data \| Breaking Current	80 kA
Switchgear \| Technical Data \| Rated Current	63 A
Switchgear \| Technical Data \| Rated Short Circuit Withstand Current	1s for 2000A rms kA
