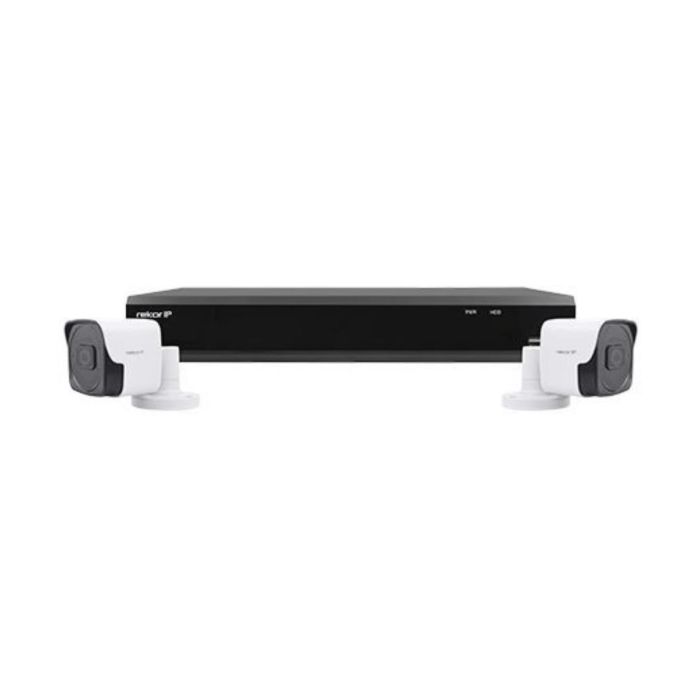

Contents: NVR (HDD inc.), 2 x IP Cameras, 2 x 18.3 Meter Pre-terminated Network Cable, System Power Supply, Manual, Software CD, HDMI Lead, Mouse Control,Remote Control (Battery Inc.)
View on Trimble Luckins
| System |
| Operating System | LINUX |
| Recording Bandwidth | 50Mbps |
| POE | 4CH (<100 Meters per Channel) |
| Video & Audio |
| Video Input | 4CH |
| Audio Output | 1CH |
| Display |
| Output | 1 x HDMI, 1 x VGA |
| Display Split | 1/4 |
| Resolution | 1024*768, 1280*720, 1280*1024, 1440*900, 1920*1080, 2560*1440, 3840*2160 |
| Recording |
| Compression | H.265/H.264 |
| Resolution | 2 Megapixel |
| Record Rate (Main Stream) | 2 Megapixel |
| Recording Mode | Manual/Motion Detection/Schedule |
| Playback & Backup |
| Sync Playback | 2 Megapixel |
| Backup Mode | Network/2 x USB2.0 |
| Network |
| Ethernet | RJ-45 port (100/1000M) |
| Network Functions | HTTP, IPv4/IPv6, TCP/IP, UPNP, RTSP, UDP, SMTP, NTP, DHCP, DNS, PPPOE, DDNS, FTP |
| Network Monitoring | Web browser, Client Software, Android & IOS |
| Storage |
| Internal HDD | 1TB HDD |
| General |
| NVR Power Consumption | <7W (without hard disk) |
| NVR Power Source | IEEE802.3af |
| Operation Condition | 0ºC – +55ºC / 10% – 90% |
| Dimensions | 300X227X53mm |
| External Power Supply |
| Power Input | AC 110~240V |
| Power Output | DC48V/1.2A - 60W |
