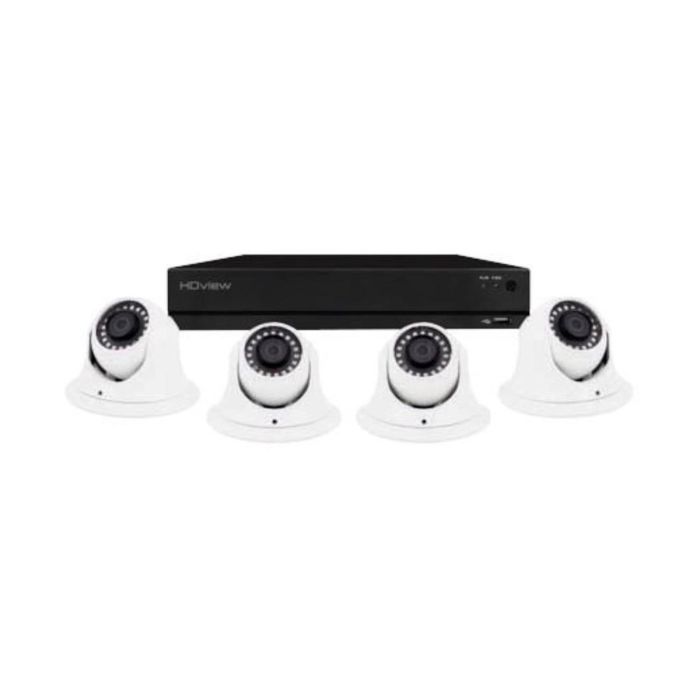

ESP CCTV System 4 Channel Wire Free Full HD 8TB

ESP CCTV System 4 Channel Wire Free Full HD 8TB

ESP-SHDV4KD4W8TB
  • Complete with DVR, Cameras, Cable & System Power Supply
  • 4 x 4MP HD day/night dome Cameras - SHDVC36FDG/ SHDVC36FDW
  • Hard drive options: SHDV4KD - 500GB, 1TB, 2TB, 4TB or 8TB
  • 4 Channel System (Supports up to 4 cameras)
  • 4 Megapixel live view and recording
  • Recording options – Continuous / Scheduled / Motion
  • Remote view via ESP® HDview APP for smartphones
  • USB back up of recordings for easy evidence transfer
  • Video outputs HDMI / VGA for connection to a monitor
  • Premium Surveillance Hard Drive pre-installed
  • Programmable Spot Output
  • CMS software included for remote viewing via a pc
  • Remote monitoring via wired connection or PowerLine Adapter (PLA)
  • Mouse driven comprehensive user interface
  • Silent DVR operation
SELL PACK QTY: 1

Stock available

2-3 Working days
Excl. VAT: £758.99 Incl. VAT: £910.79
  • Complete with DVR, Cameras, Cable & System Power Supply
  • 4 x 4MP HD day/night dome Cameras - SHDVC36FDG/ SHDVC36FDW
  • Hard drive options: SHDV4KD - 500GB, 1TB, 2TB, 4TB or 8TB
  • 4 Channel System (Supports up to 4 cameras)
  • 4 Megapixel live view and recording
  • Recording options – Continuous / Scheduled / Motion
  • Remote view via ESP HDview APP for smartphones
  • USB back up of recordings for easy evidence transfer
  • Video outputs HDMI / VGA for connection to a monitor
  • Renowned Western Digital Surveillance Hard Drive pre-installed
  • Programmable Spot Output
  • CMS software included for remote viewing via a pc
  • Remote monitoring via wired connection or Wi-Fi (requires DVRWLA)
  • Mouse driven comprehensive user interface
  • RS485 control for PTZ cameras
  • Silent DVR operation
View on Trimble Luckins
System
Main ProcessorEmbedded Processor
Operating SystemEmbedded LINUX
Video & Audio
Video InputSHDV4KD - 4 channel BNCSHDV8KD - 8 channel BNC
Audio InputSHDV4KD - 4 channel RCASHDV8KD - 4 channel RCA
Audio Output1 channel RCA
Display
Video Output1 x HDMI, 1 x VGA, 1 x Auxiliary
Display SplitSHDV4KD - 1 and 4SHDV8KD - 1, 4 and 10
Resolution1024×768, 1280×720, 1280×1024, 1440×900, 1920×1080, 2560x1440
Recording
Video/Audio CompressionH.264 Mainprofile/G.711A
Resolution4 Megapixel
Record Rate (Main Stream)SHDV4KD - 4ch 4MP recordingSHDV8KD - 8ch 2MP recording
Recording ModeManual/Motion Detection/Schedule
Playback & Backup
Sync PlaybackSHDV4KD - 4ch 4MP recordingSHDV8KD - 8ch 4MP recording
Backup ModeNetwork/USB2.0 devices
Network
EthernetRJ45 10M/100M
Network FunctionsHTTP, IPv4/IPv6, TCP/IP, UPNP, RTSP, UDP, SMTP, NTP, DHCP, DNS, PPPOE, DDNS, FTP
Network MonitoringWeb browsers, CMS, Android & iPhone apps
Storage
Internal HDD1 SATA HDD, up to 8TB per HDD
Auxiliary Interface
USB Interface2
General
Power SupplyDC12V/2A
Power Consumption<10W (without hard disk)
Operation Condition0ºC – +55ºC / 10% – 90%
Dimensions250(W)x230(D)x45(H)mm
SKU SHDV4KD4W8TB
Manufacturer ESP
SKU ESP-SHDV4KD4W8TB
No. Cameras 4
Main Processor Embedded Processor
Video Output 1 x HDMI, 1 x VGA, 1 x Auxiliary
Display Split SHDV4KD - 1 and 4 SHDV8KD - 1, 4 and 10
Video/Audio Compression H.264 Mainprofile/G.711A
Power Supply DC12V/2A
Recording Mode Manual/Motion Detection/Schedule
Sync Playback SHDV4KD - 4ch 4MP recording SHDV8KD - 8ch 4MP recording
Backup Mode Network/USB2.0 devices
Ethernet RJ45 10M/100M
Network Functions HTTP, IPv4/IPv6, TCP/IP, UPNP, RTSP, UDP, SMTP, NTP, DHCP, DNS, PPPOE, DDNS, FTP
Network Monitoring Web browsers, CMS, Android & iPhone apps
Internal HDD 1 SATA HDD, up to 8TB per HDD
USB Interface 2
Power Consumption <10W (without hard disk)
Video Input SHDV4KD - 4 channel BNC SHDV8KD - 8 channel BNC
Audio Input SHDV4KD - 4 channel RCA SHDV8KD - 4 channel RCA
Audio Output 1 channel RCA
PTZ Control RS485 with multi-protocol
