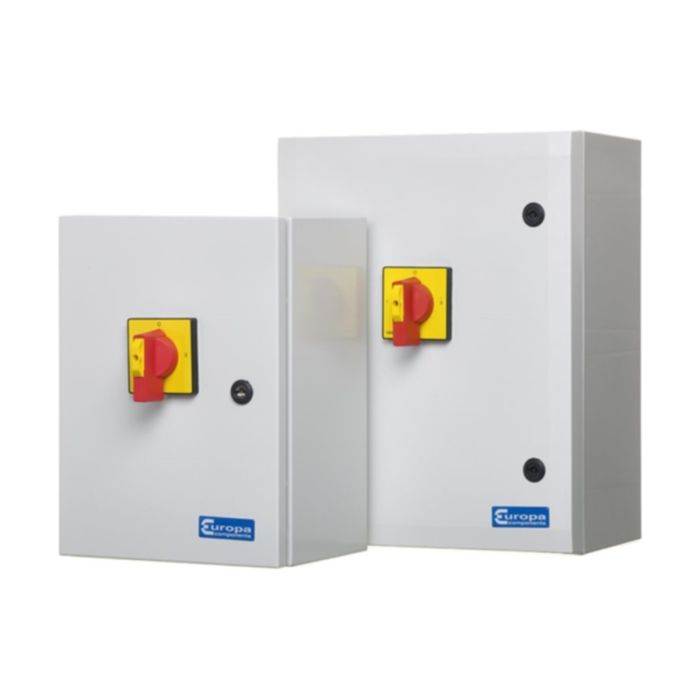

Europa LBC1254PGP Isolator Change Over 4P IP65 125A Polycarbonate
Europa LBC1254PGP Ch/Ov Switch 125A
- Added safety and security
- Time saving
- Easy installation
- Reliable
- Cost effective
- Robust design
- Easy wiring
- Wide range of applications
Estimated delivery 3-5 Working days
SKU
EURP-LBC1254PGP
£320.52 £384.62
Product Downloads
Product Categories
Europa LBC1254PGP Ch/Ov Switch 125A
| SKU | EURP-LBC1254PGP |
|---|---|
| Manufacturer Part Code | LBC1254PGP |
| Material | Steel |
| Ingress Protection | IP66 |
| Current Rating | 125A |
| Pole Configuration | 4P |
| Voltage | 690V |
| Enclosed | Yes |
| Depth (mm) | 270.00 mm |
| Width (mm) | 400.00 mm |
| Length (mm) | 500.00 mm |
| Lockable | Yes |
| Terminal type | Screw |
| Switched | Yes |
| c/w Fuses | No |
| Rated Short Circuit Withstand Current | 30 kA |
| Standards | EN60947-3 |
| Is on Sale | No |
| Switchgear | Description | Product | Isolator | |
| Switchgear | Description | Product Type | Change Over 4P IP65 | |
| Switchgear | Dimensions | Depth (EF008810) | 270 mm | |
| Switchgear | Dimensions | Length (EF004265) | 500 mm | |
| Switchgear | Features | Enclosed | Y | |
| Switchgear | Features | Flexible | N | |
| Switchgear | Features | Ingress Protection (EF005474) | IP66 | |
| Switchgear | Features | Lockable? | Y | |
| Switchgear | Features | Mounting Type | Surface | |
| Switchgear | Features | Switched | Y | |
| Switchgear | Features | Terminal Type | Screw | |
| Switchgear | Features | c/w Fuses | N | |
| Switchgear | General | Standards | EN60947-3 | |
| Switchgear | Technical Data | Rated Current | 125 A | |
| Switchgear | Technical Data | Rated Short Circuit Withstand Current | 30 kA |
