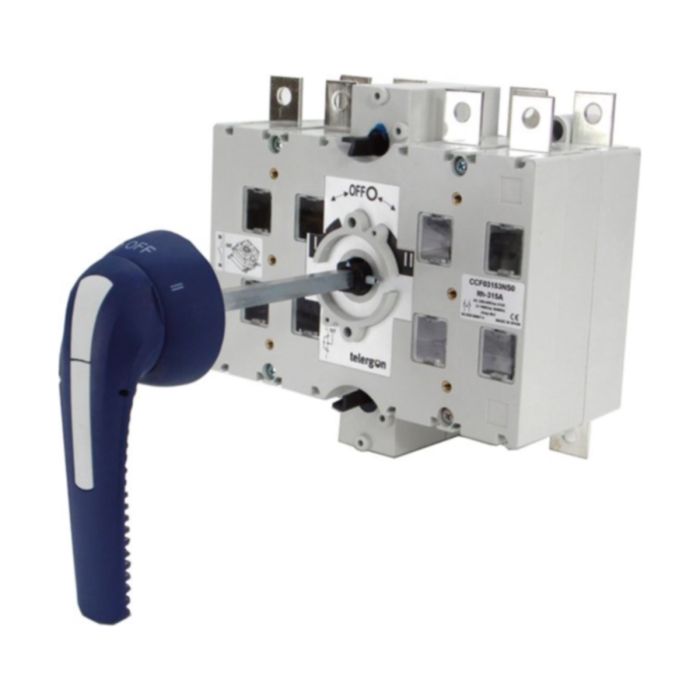

Europa LBCD2503PSN Changeover Switch Door Interlocked 3P & Sw Neutral c/w Handle 250A
Europa LBCD2503PSN Changeover Sw 250A
- Easy to install
- Added security
- Enhanced safety
- Flexible installation options (multiple configurations)
Estimated delivery 3-5 Working days
SKU
EURP-LBCD2503PSN
£514.79 £617.75
Product Categories
Related Products
Europa LBC10003PSNME Changeover Switch Enclosed 3P & Switched Neutral IP65 AC-23 1000ASKU: EURP-LBC10003PSNME£2,961.73 £3,554.08
Estimated delivery 3-5 Working days
Europa LBCD2503PSN Changeover Sw 250A
| SKU | EURP-LBCD2503PSN |
|---|---|
| Manufacturer Part Code | LBCD2503PSN |
| Material | Plastic |
| Ingress Protection | IP65 |
| Pole Configuration | 4P |
| Current Rating | 250A |
| Depth (mm) | 145.60 mm |
| Width (mm) | 192.00 mm |
| Length (mm) | 154.00 mm |
| c/w Fuses | No |
| Flexible | No |
| Enclosed | No |
| Lockable | Yes |
| Voltage | 400V |
| Switched | Yes |
| Terminal type | Bolt |
| Rated Short Circuit Withstand Current | 7 kA |
| Standards | EN60947-1 3 |
| Is on Sale | No |
| Switchgear | Description | Product | Changeover Switch | |
| Switchgear | Description | Product Type | Door Interlocked 3P & Sw Neutral | |
| Switchgear | Dimensions | Depth | 145.6 mm | |
| Switchgear | Dimensions | Length Min Max | 154 mm | |
| Switchgear | Features | Enclosed | N | |
| Switchgear | Features | Flexible | N | |
| Switchgear | Features | Ingress Protection | IP65 | |
| Switchgear | Features | Lockable? | Y | |
| Switchgear | Features | Mounting Type | Backplate | |
| Switchgear | Features | Switched | Y | |
| Switchgear | Features | Terminal Type | Bolt | |
| Switchgear | Features | c/w Fuses | N | |
| Switchgear | General | Standards | EN60947-1 3 | |
| Switchgear | Technical Data | Rated Current | 250 A | |
| Switchgear | Technical Data | Rated Short Circuit Withstand Current | 7 kA |
