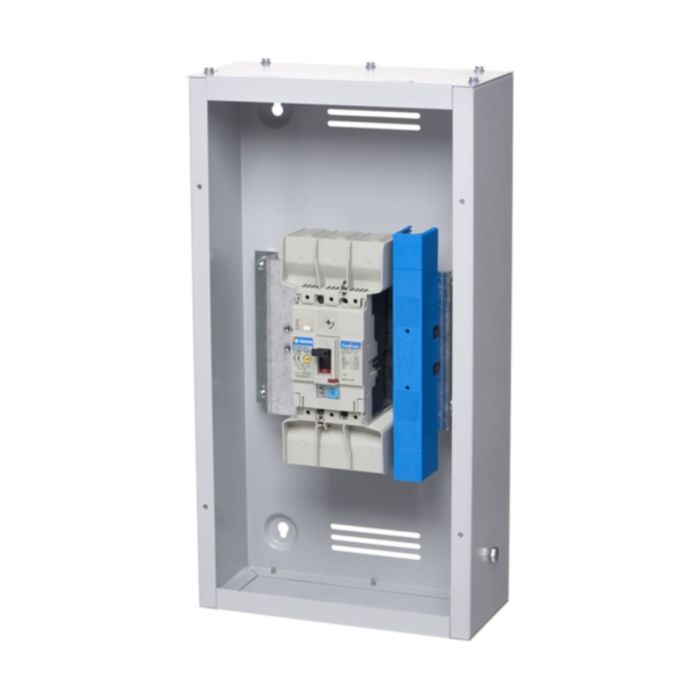

Europa MCCB400-3PNL-36AA-MC MCCB TP+N Enclosed 400A 25kA
Europa MCCB400-3PNL-36AA-MC TP+N MCCB
- High reliability
- Enhanced safety
- Increased security
- Easy installation
- Bespoke options available
- Robust construction
- Flexible current options
Estimated delivery 3-5 Working days
SKU
EURP-MCCB400-3PNL-36AA-MC
£1,374.17 £1,649.00
Product Categories
Europa MCCB400-3PNL-36AA-MC TP+N MCCB
| SKU | EURP-MCCB400-3PNL-36AA-MC |
|---|---|
| Manufacturer Part Code | MCCB400-3PNL-36AA-MC |
| Product Finish | Polyester Epoxy Powder Coated |
| Material | Steel |
| Ingress Protection | IP4X |
| Depth (mm) | 197.00 mm |
| Width (mm) | 500.00 mm |
| Length (mm) | 1,000.00 mm |
| Current Rating | 400A |
| Pole Configuration | 3P |
| Terminal type | Bolt |
| Voltage | 690V |
| Enclosed | Yes |
| Rated Short Circuit Withstand Current | 36 kA |
| Switched | Yes |
| Standards | EN60947-2 |
| Lockable | Yes |
| Is on Sale | No |
| Switchgear | Description | Product | MCCB | |
| Switchgear | Description | Product Type | TP+N Enclosed | |
| Switchgear | Dimensions | Depth | 197 mm | |
| Switchgear | Dimensions | Length Min Max | 1000 mm | |
| Switchgear | Features | Enclosed | Y | |
| Switchgear | Features | Flexible | N | |
| Switchgear | Features | Ingress Protection | IP4X | |
| Switchgear | Features | Lockable? | Y | |
| Switchgear | Features | Mounting Type | Surface | |
| Switchgear | Features | Switched | Y | |
| Switchgear | Features | Terminal Type | Bolt | |
| Switchgear | General | Standards | EN60947-2 | |
| Switchgear | Technical Data | Rated Current | 400 A | |
| Switchgear | Technical Data | Rated Short Circuit Withstand Current | 36 kA |
