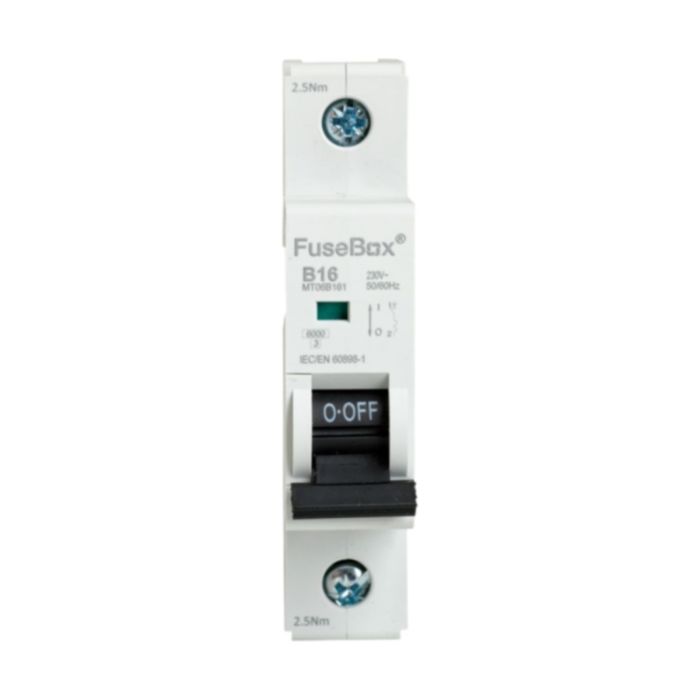

FuseBox MT06B161 16A MCB SP B Curve 6kA
FuseBox MT06B161 16A SP MCB SP B Curve 6kA is a miniature circuit breaker designed to protect electrical circuits from overloads and short circuits. It has a rated breaking capacity of 6000A (6kA) and thermal magnetic tripping characteristics.
- 6kA 1 pole B CURVE
- 35mm din rail
- Thermal magnetic
- PA6 (Nylon 6) material
- B CURVE : 3-5In tripping characteristics
- 10,000 mechanical endurance
- IEC/EN 60898-1 standard
- 230V rated voltage (Un/AC)
- 50/60 frequency (Hz)
- 6000A (6kA) rated breaking capacity (Icu)
- 16mm² maximum terminal capacity
- Recommended tightening torque (Nm): 2.5
- Thermal magnetic tripping type
- Mounting: 35mm din rail
- PA6 (Nylon 6) material
The FuseBox MT06B161 16A SP MCB SP B Curve 6kA is a Miniature Circuit Breaker that is designed to protect electrical circuits from overloads and short circuits. It has a rated voltage of 230V and a rated breaking capacity of 6000A (6kA). The MT06B161 is equipped with thermal magnetic tripping characteristics and made of PA6 (Nylon 6) material which enhances its durability and longevity. It also has a recommended tightening torque of 2.5 Nm and can be mounted on a 35mm din rail.
This MCB is ideal for residential and commercial applications due to its superior performance and longevity
| SKU | FUSEB-MT06B161 |
|---|---|
| Manufacturer Part Code | MT06B161 |
| Current Rating | 16A |
| Trip Type | Type B |
| Short Circuit Rating | 6 kA |
| Pole Configuration | 1P |
| Voltage | 230V |
| Mounting Method | DIN Rail |
| Width (mm) | 18.00 mm |
| Standards | BS EN 60898-1 |
| Is on Sale | No |
| Circuit Breakers | Description | Product | MCB | |
| Circuit Breakers | Description | Product Type | SP Type B | |
| Circuit Breakers | Dimensions | Width (EF008808) | 18 mm | |
| Circuit Breakers | Features | Mounting (EF000003) | DIN Rail | |
| Circuit Breakers | Features | Number of Modules | 1 | |
| Circuit Breakers | Features | Pole Configuration | Single Pole (1P) | |
| Circuit Breakers | Features | Short Circuit Rating | 6 kA | |
| Circuit Breakers | Features | Trip Type | Type B | |
| Circuit Breakers | General | Standards | BS EN 60898-1 | |
| Circuit Breakers | Technical Data | Current Rating (EF000227) | 16 A | |
| Circuit Breakers | Technical Data | Voltage | 230 V |
