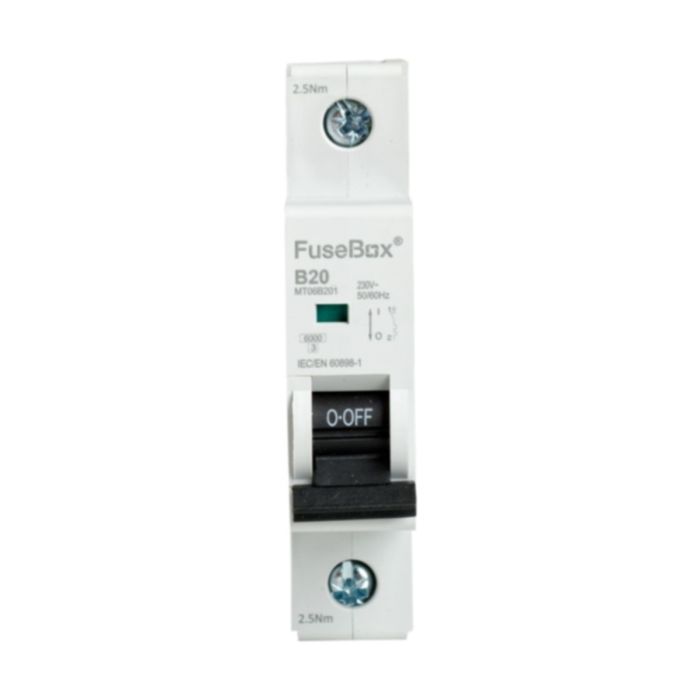

FuseBox MT06B201 20A MCB SP B Curve 6kA
Get reliable protection against overloads and short circuits with the FuseBox MT06B201 MCB SP Type B 20A 6kA. This miniature circuit breaker features thermal magnetic technology, B curve tripping characteristics, 6kA rated breaking capacity & more.
- 6kA 1 pole B CURVE
- 35mm din rail
- Thermal magnetic
- PA6 (Nylon 6) material
- B curve tripping characteristics: 3-5In
- Rated breaking capacity 10,000A
- Rated voltage 230V/AC
- Frequency 50/60Hz
- Maximum terminal capacity 16mm²
- Recommended tightening torque 2.5Nm
- IP protection degree
- Weight (1pc) 0.12Kg
- IEC/EN 60898-1 standard compliant
Get reliable protection against overloads and short circuits with the FuseBox MT06B201 MCB SP Type B 20A 6kA. This miniature circuit breaker features thermal magnetic technology, which combines thermal protection against overloads with magnetic protection against short circuits.
The FuseBox MT06B201 has a rated breaking capacity of up to 6kA, making it suitable for use in industrial and residential applications. Its B curve tripping characteristics (3-5In) ensure reliable tripping in case of overload or short circuit, while its 35mm din rail mount and 1 pole design make installation easy.
The FuseBox MT06B201 MCB is made of PA6 (Nylon 6) material,
| SKU | FUSEB-MT06B201 |
|---|---|
| Manufacturer Part Code | MT06B201 |
| Current Rating | 20A |
| Trip Type | Type B |
| Short Circuit Rating | 6 kA |
| Pole Configuration | 1P |
| Voltage | 230V |
| Mounting Method | DIN Rail |
| Width (mm) | 18.00 mm |
| Standards | BS EN 60898-1 |
| Is on Sale | No |
| Circuit Breakers | Description | Product | MCB | |
| Circuit Breakers | Description | Product Type | SP Type B | |
| Circuit Breakers | Dimensions | Width (EF008808) | 18 mm | |
| Circuit Breakers | Features | Mounting (EF000003) | DIN Rail | |
| Circuit Breakers | Features | Number of Modules | 1 | |
| Circuit Breakers | Features | Pole Configuration | Single Pole (1P) | |
| Circuit Breakers | Features | Short Circuit Rating | 6 kA | |
| Circuit Breakers | Features | Trip Type | Type B | |
| Circuit Breakers | General | Standards | BS EN 60898-1 | |
| Circuit Breakers | Technical Data | Current Rating (EF000227) | 20 A | |
| Circuit Breakers | Technical Data | Voltage | 230 V |
