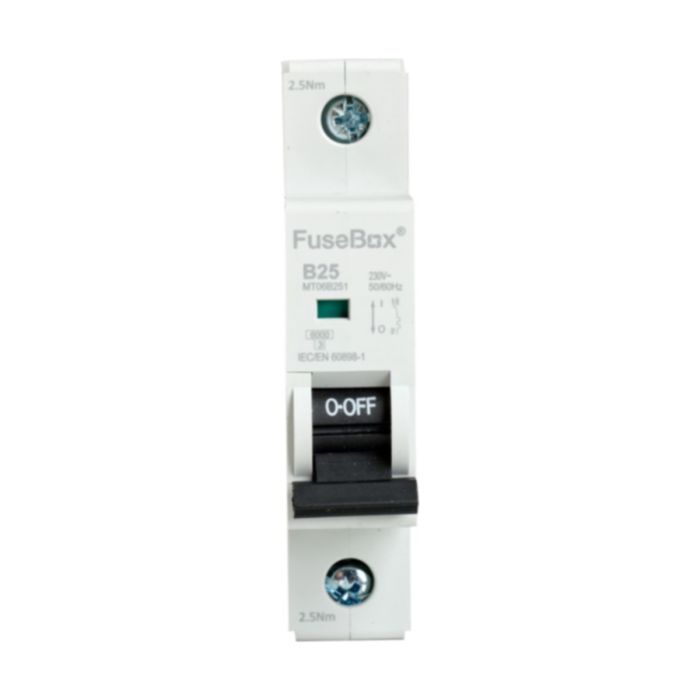

FuseBox MT06B251 25A MCB SP B Curve 6kA
The FuseBox MT06B251 is a 25A SP MCB SP B Curve 6kA that offers reliable protection against short circuits and overloads. It features 1 pole B CURVE tripping characteristics and a miniature circuit breaker with a 6kA rated breaking capacity
- 6kA 1 pole B CURVE
- Thermal magnetic
- 35mm din rail
- PA6 (Nylon 6) material
- Rated current: 25A
- Rated breaking capacity: 6000A (6kA)
- Tripping characteristics: B CURVE : 3-5In
- Rated voltage (Un/AC): 230V
- Frequency (Hz): 50/60
- Standard: IEC/EN 60898-1
- Maximum terminal capacity: 16mm²
- Recommended tightening torque: 2.5 Nm
- Mechanical endurance: 10,000 cycles
The FuseBox MT06B251 is a 25A SP MCB SP B Curve 6kA that offers reliable protection against short circuits and overloads. It features a miniature circuit breaker with a 6kA rated breaking capacity and 1 pole B CURVE tripping characteristics, capable of withstanding up to 10,000 cycles. The thermal magnetic mechanism ensures efficient and accurate tripping with a rated voltage of 230V and frequency of 50/60Hz.
This MCB is designed for 35mm din rail and made of PA6 (Nylon 6) material, providing high mechanical strength and resistance to heat and chemicals. It has a maximum terminal capacity of 16mm², and its recommended tightening torque is 2.5 Nm. Additionally, it weighs only 0.12 Kg (1PC).
With its compliance with IEC/EN 60898-1 standards, the FuseBox MT06B251 is a reliable choice for electrical protection in homes and commercial buildings
| SKU | FUSEB-MT06B251 |
|---|---|
| Manufacturer Part Code | MT06B251 |
| Current Rating | 25A |
| Trip Type | Type B |
| Short Circuit Rating | 6 kA |
| Pole Configuration | 1P |
| Voltage | 230V |
| Mounting Method | DIN Rail |
| Width (mm) | 18.00 mm |
| Standards | BS EN 60898-1 |
| Is on Sale | No |
| Circuit Breakers | Description | Product | MCB | |
| Circuit Breakers | Description | Product Type | SP Type B | |
| Circuit Breakers | Dimensions | Width (EF008808) | 18 mm | |
| Circuit Breakers | Features | Mounting (EF000003) | DIN Rail | |
| Circuit Breakers | Features | Number of Modules | 1 | |
| Circuit Breakers | Features | Pole Configuration | Single Pole (1P) | |
| Circuit Breakers | Features | Short Circuit Rating | 6 kA | |
| Circuit Breakers | Features | Trip Type | Type B | |
| Circuit Breakers | General | Standards | BS EN 60898-1 | |
| Circuit Breakers | Technical Data | Current Rating (EF000227) | 25 A | |
| Circuit Breakers | Technical Data | Voltage | 230 V |
