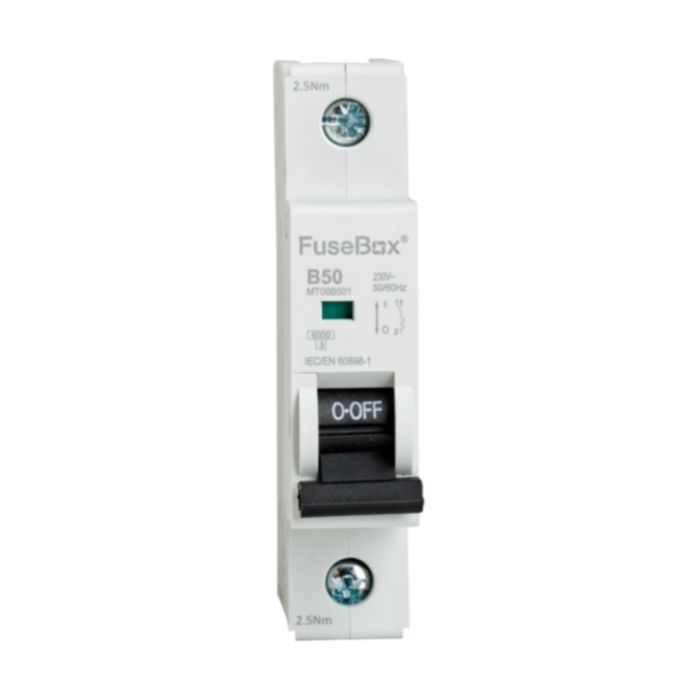

FuseBox MT06B501 50A MCB SP B Curve 6kA
FuseBox MT06B501 is a B Curve 1 pole miniature circuit breaker that is designed to provide protection against short circuits and overloading currents
- B Curve : 3-5In Tripping Characteristics
- Thermal magnetic
- PA6 (Nylon 6) Material
- Rated Breaking Capacity (Icu): 6kA
- Recommended Tightening Torque (Nm): 2.5
- Standard: IEC/EN 60898-1
- Number of Poles: 1
- Rated Voltage (Un/AC): 230V
- Frequency (Hz): 50/60
- Mechanical Endurance: 10,000
- Protection Degree (IP): 20
- Maximum Terminal Capacity: 16mm²
Stock available Next working day
SKU
FUSEB-MT06B501
£1.81 £2.17
Product Downloads
FuseBox MT06B501 is a B Curve 1 pole miniature circuit breaker. The MCB has a rated breaking capacity of 6kA and a rated current of 50A. It can be mounted on a 35mm din rail and has a recommended tightening torque of 2.5 Nm.
| SKU | FUSEB-MT06B501 |
|---|---|
| Manufacturer Part Code | MT06B501 |
| Current Rating | 50A |
| Trip Type | Type B |
| Short Circuit Rating | 6 kA |
| Pole Configuration | 1P |
| Voltage | 230V |
| Mounting Method | DIN Rail |
| Width (mm) | 18.00 mm |
| Standards | BS EN 60898-1 |
| Is on Sale | No |
| Circuit Breakers | Description | Product | MCB | |
| Circuit Breakers | Description | Product Type | SP Type B | |
| Circuit Breakers | Dimensions | Width (EF008808) | 18 mm | |
| Circuit Breakers | Features | Mounting (EF000003) | DIN Rail | |
| Circuit Breakers | Features | Number of Modules | 1 | |
| Circuit Breakers | Features | Pole Configuration | Single Pole (1P) | |
| Circuit Breakers | Features | Short Circuit Rating | 6 kA | |
| Circuit Breakers | Features | Trip Type | Type B | |
| Circuit Breakers | General | Standards | BS EN 60898-1 | |
| Circuit Breakers | Technical Data | Current Rating (EF000227) | 50 A | |
| Circuit Breakers | Technical Data | Voltage | 230 V |
