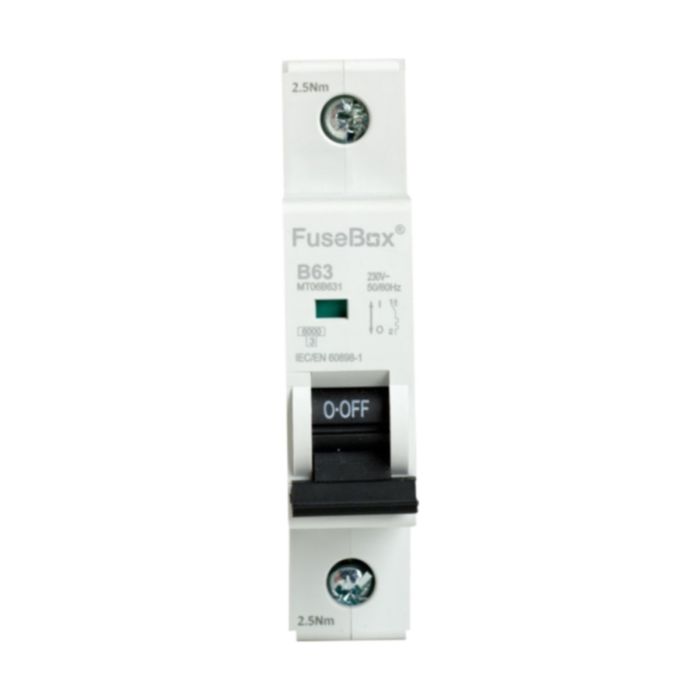

FuseBox MT06B631 63A MCB SP B Curve 6kA
The FuseBox MT06B631 63A SP MCB SP B Curve 6kA is a highly reliable miniature circuit breaker that provides protection against overloads and short circuits in electrical circuits. It has a B curve tripping characteristic and is made of durable PA6 (Nylon 6) material. This circuit breaker is compliant with IEC/EN 60898-1 standard
- 35mm din rail
- Thermal magnetic
- PA6 (Nylon 6) material
- B Curve tripping characteristics (3-5In)
- Rated voltage: 230V AC
- Frequency: 50/60Hz
- Rated breaking capacity: 6000A (6kA)
- Maximum terminal capacity: 16mm²
- Recommended tightening torque: 2.5Nm
- Mechanical endurance: 10000 cycles
- Complies with IEC/EN 60898-1 standard
The FuseBox MT06B631 63A SP MCB SP B Curve 6kA is a high-quality miniature circuit breaker that provides reliable protection against overloads and short circuits in electrical circuits. This 1 pole circuit breaker has a B curve tripping characteristic, which means it trips between 3 and 5 times the rated current. It is designed to be mounted on a 35mm din rail and has a recommended tightening torque of 2.5Nm.
The FuseBox MT06B631 63A SP MCB SP B Curve 6kA is made of durable and high-quality PA6 (Nylon 6) material and has a rated breaking capacity of 6000A (6kA). It is rated for 230V AC and has a frequency of 50/60Hz. This circuit breaker has a protection degree of IP20 and can accommodate a maximum terminal capacity of 16mm².
The FuseBox MT06B631 63A SP MCB SP B Curve 6kA is compliant with IEC/EN 60898-1 standard and has a mechanical endurance of 10000 cycles.
| SKU | FUSEB-MT06B631 |
|---|---|
| Manufacturer Part Code | MT06B631 |
| Current Rating | 63A |
| Trip Type | Type B |
| Short Circuit Rating | 6 kA |
| Pole Configuration | 1P |
| Voltage | 230V |
| Mounting Method | DIN Rail |
| Width (mm) | 18.00 mm |
| Standards | BS EN 60898-1 |
| Is on Sale | No |
| Circuit Breakers | Description | Product | MCB | |
| Circuit Breakers | Description | Product Type | SP Type B | |
| Circuit Breakers | Dimensions | Width (EF008808) | 18 mm | |
| Circuit Breakers | Features | Mounting (EF000003) | DIN Rail | |
| Circuit Breakers | Features | Number of Modules | 1 | |
| Circuit Breakers | Features | Pole Configuration | Single Pole (1P) | |
| Circuit Breakers | Features | Short Circuit Rating | 6 kA | |
| Circuit Breakers | Features | Trip Type | Type B | |
| Circuit Breakers | General | Standards | BS EN 60898-1 | |
| Circuit Breakers | Technical Data | Current Rating (EF000227) | 63 A | |
| Circuit Breakers | Technical Data | Voltage | 230 V |
