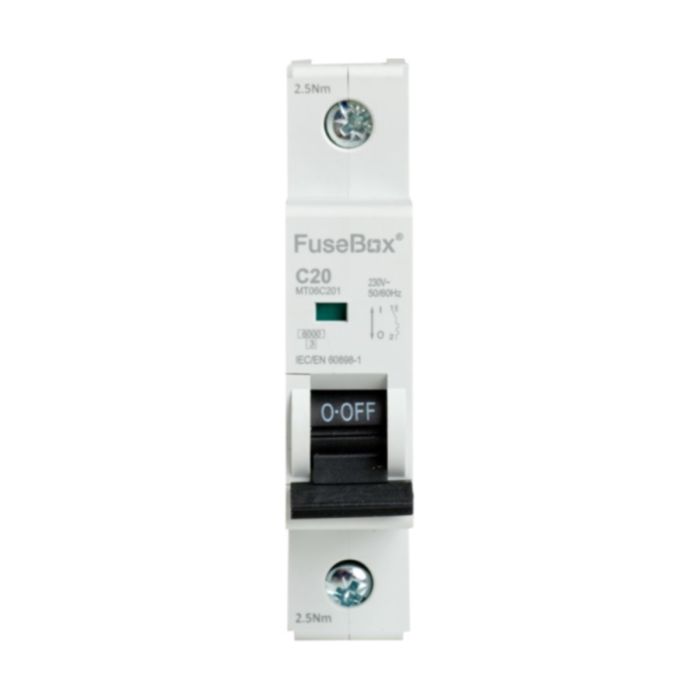

FuseBox MT06C201 20A MCB SP C Curve 6kA
 FuseBox MT06C201 20A SP MCB SP C Curve 6kA. This MCB is perfect for medium-level electrical protection and has a breaking capacity of 6kA.
- Miniature Circuit Breaker 6kA 1 pole C CURVE
- 35mm din rail
- Thermal magnetic
- PA6 (Nylon 6) material
- C curve : 5-10In tripping characteristics
- 10,000 rated breaking capacity (Icu)
- Recommended tightening torque of 2.5 Nm
- 16mm² maximum terminal capacity
- 2.5 kg weight (1pc)
- IEC/EN 60898-1 standard
Stock available Next working day
SKU
FUSEB-MT06C201
£1.81 £2.17
Product Downloads
.The FuseBox MT06C201 20A SP MCB SP C Curve 6kA is a miniature circuit breaker designed for electrical protection in both residential and commercial settings. It features a thermal magnetic mechanism and a breaking capacity of 6kA, making it ideal for medium-level protection against overloads and short circuits.
The MCB is made from reinforced PA6 (Nylon 6) material. It also has a maximum terminal capacity of 16mm² and a recommended tightening torque of 2.5 Nm. The FuseBox MT06C201 is suitable for use with 35mm din rails and comes with a tripping characteristic of C curve : 5-10In.
Rated at 20A, this MCB is designed for easy installation and operation, and it conforms to the IEC/EN 60898-1 standard.
| SKU | FUSEB-MT06C201 |
|---|---|
| Manufacturer Part Code | MT06C201 |
| Current Rating | 20A |
| Trip Type | Type C |
| Short Circuit Rating | 6 kA |
| Pole Configuration | 1P |
| Voltage | 230V |
| Mounting Method | DIN Rail |
| Width (mm) | 18.00 mm |
| Standards | BS EN 60898-1 |
| Is on Sale | No |
| Circuit Breakers | Description | Product | MCB | |
| Circuit Breakers | Description | Product Type | SP Type C | |
| Circuit Breakers | Dimensions | Width (EF008808) | 18 mm | |
| Circuit Breakers | Features | Mounting (EF000003) | DIN Rail | |
| Circuit Breakers | Features | Number of Modules | 1 | |
| Circuit Breakers | Features | Pole Configuration | Single Pole (1P) | |
| Circuit Breakers | Features | Short Circuit Rating | 6 kA | |
| Circuit Breakers | Features | Trip Type | Type C | |
| Circuit Breakers | General | Standards | BS EN 60898-1 | |
| Circuit Breakers | Technical Data | Current Rating (EF000227) | 20 A | |
| Circuit Breakers | Technical Data | Voltage | 230 V |
