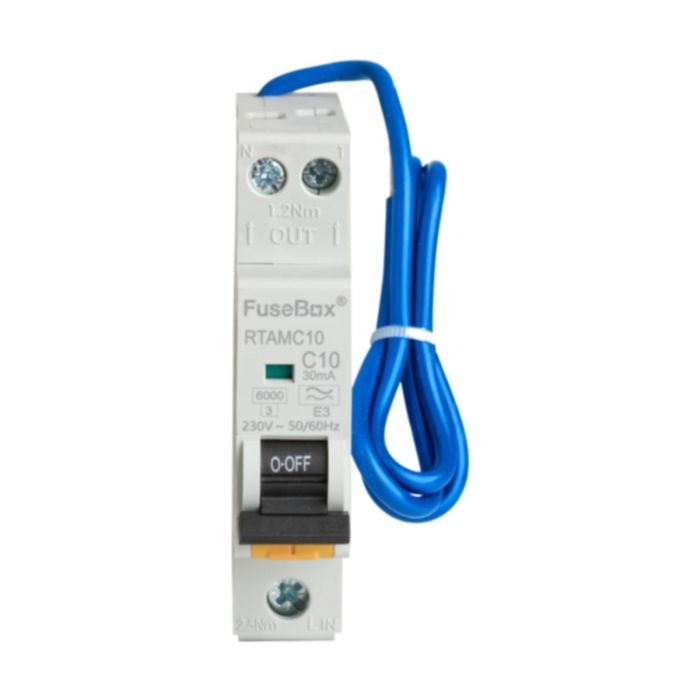

FuseBox RTAMC10 10A 2P Mini RCBO Type A C Curve 30mA 6kA
FuseBox RTAMC10 Mini RCBO Type A C Curve 30mA 6kA for your electrical circuits. This 10A 2P mini RCBO is easy to install and provides protection against electrical faults and overloads.
- Mini RCBO 6kA 2 pole (C CURVE) TYPE A
- Rated current (In): 10A
- Breaking capacity: 6kA
- Poles: 2P
- Tripping characteristics: C Curve : 5-10In
- Residual current characteristics: TYPE A (AC and pulsating DC up to 6mA)
- Recommended tightening torque (Nm): 2.5Nm
- Flying neutral cable length (mm): 450 (can be cut to suit)
FuseBox RTAMC10 10A 2P Mini RCBO Type A C Curve 30mA 6kA by FuseBox is an electrical device that provides protection against electrical faults and overloads. It is designed to protect your home, office, or buildings electrical circuits from short circuits, earth faults, leakage currents, and other electrical hazards.
This mini RCBO has a breaking capacity of 6kA and is equipped with C curve tripping characteristics (5-10In) and TYPE A residual current characteristics (AC and pulsating DC up to 6mA). It is rated at 10A and has a residual operating current of 0.03A. This device has two poles and is recommended for rated voltage (Un/AC) of 230V and frequency (Hz) of 50/60.
The FuseBox RTAMC10 Mini RCBO is easy to install with a 35mm din rail mounting and has a protection degree of IP20. The recommended tightening torque is 2.5Nm L IN / 1.2Nm OUT N L, and the maximum terminal capacity is 1-16mm² L IN / 1-10mm² OUT N L. This mini RCBO weighs 0.144 kg and has a mechanical endurance of 10,000.
| SKU | FUSEB-RTAMC10 |
|---|---|
| Manufacturer Part Code | RTAMC10 |
| Product Range | Edition 4 |
| Current Rating | 10A |
| Trip Type | Type C |
| Short Circuit Rating | 6 kA |
| Sensitivity | 30 mA |
| Pole Configuration | 2P |
| Voltage | 230V |
| Mounting Method | DIN Rail |
| Ingress Protection | IP20 |
| Width (mm) | 18.00 mm |
| Standards | BS EN 61009-1 |
| Is on Sale | No |
| Circuit Breakers | Description | Product | RCBO | |
| Circuit Breakers | Description | Product Type | Mini DP Type A Class C | |
| Circuit Breakers | Dimensions | Width (EF008808) | 18 mm | |
| Circuit Breakers | Features | Mounting (EF000003) | DIN Rail | |
| Circuit Breakers | Features | Pole Configuration | Double Pole (2P) | |
| Circuit Breakers | Features | Sensitivity | 30 mA | |
| Circuit Breakers | Features | Short Circuit Rating | 6 kA | |
| Circuit Breakers | Features | Trip Type | Type C | |
| Circuit Breakers | General | Standards | BS EN 61009-1 | |
| Circuit Breakers | Technical Data | Current Rating (EF000227) | 10 A | |
| Circuit Breakers | Technical Data | RCD Type/Class | A | |
| Circuit Breakers | Technical Data | Voltage | 230 V |
