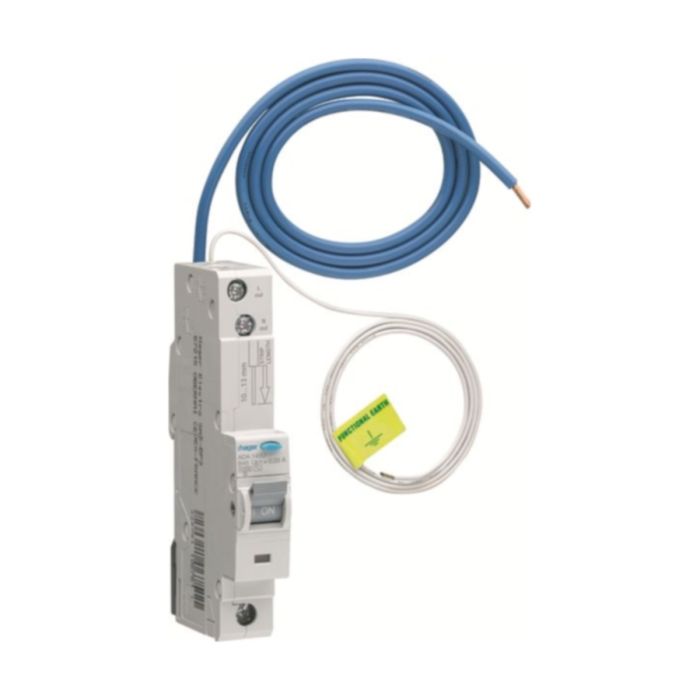

Hager ADA145U 45A SP RCBO Type A B Curve 30mA 10kA
The Hager ADA145U is a 45A single-pole RCBO Type A with B curve, offering 30mA residual current protection and 10kA breaking capacity. Ideal for commercial distribution, it combines circuit protection and earth leakage detection to enhance safety and reliability in electrical installations.
- Compact protection devices which combine the overcurrent functions of an MCB with the earth fault functions of an RCCB in a single unit.
- These devices are single pole & solid neutral.
- Locking kit = Cat ref.: MZN175.
- Conforms to IEC 61009-1, IEC 61009-2-2, EN 61009-1.
- Flying neutral lead: 700mm
- Terminal Capacities, 25mm² rigid, 16mm² flexible.
- 230V A.C.
- 10mA, 30mA & 100mA.
The Hager ADA145U 45A Single Pole RCBO (Residual Current Breaker with Overcurrent protection) is a Type A device designed for commercial electrical distribution systems. Featuring a B curve trip characteristic, it provides reliable protection against both earth leakage currents and overcurrent faults, including short circuits and overloads. This RCBO offers a rated current of 45 amps, a residual operating current of 30mA for enhanced personal protection, and a breaking capacity of 10kA, ensuring it can safely interrupt high fault currents typical in commercial environments. This device is ideal for safeguarding circuits in commercial distribution boards, combining the functions of an MCB and an RCD in a single compact unit, which simplifies installation and saves space. The Type A classification means it can detect both AC and pulsating DC residual currents, making it suitable for modern electrical loads including electronic equipment. Its robust design complies with relevant safety standards, providing dependable circuit protection and reducing the risk of electrical fires and electric shocks. Perfect for commercial applications requiring high safety and reliability, the Hager ADA145U supports efficient power management and compliance with electrical regulations, making it a trusted choice for electricians and contractors. Its compact size and clear labeling facilitate quick installation and maintenance in commercial distribution systems.
SKU | HG-ADA145U |
---|---|
Manufacturer Part Code | ADA145U |
Current Rating | 45A |
Trip Type | Type B |
Short Circuit Rating | 10 kA |
Sensitivity | 30 mA |
Pole Configuration | 1P |
Voltage | 230V |
Mounting Method | DIN Rail |
Ingress Protection | IP20 |
Depth (mm) | 70.00 mm |
Height (mm) | 110.00 mm |
Width (mm) | 17.50 mm |
Cable Capacity | 16 mm2 |
Standards | BSEN61009 |
Is on Sale | No |
Circuit Breakers | Description | Product | RCBO | |
Circuit Breakers | Description | Product Type | SP Class A Type B | |
Circuit Breakers | Description | Product | Circuit Breaker | |
Circuit Breakers | Dimensions | Height (EF008809) | 110 mm | |
Circuit Breakers | Features | Ingress Protection (EF005474) | IP20 | |
Circuit Breakers | Features | Mounting (EF000003) | DIN Rail | |
Circuit Breakers | Features | Pole Configuration | Single Pole (1P) | |
Circuit Breakers | Features | Sensitivity | 30 mA | |
Circuit Breakers | Features | Short Circuit Rating | 10 kA | |
Circuit Breakers | Features | Trip Type | Type B | |
Circuit Breakers | General | Standards | BSEN61009 | |
Circuit Breakers | Technical Data | Current Rating (EF000227) | 45 A | |
Circuit Breakers | Technical Data | Voltage | 230 V |
