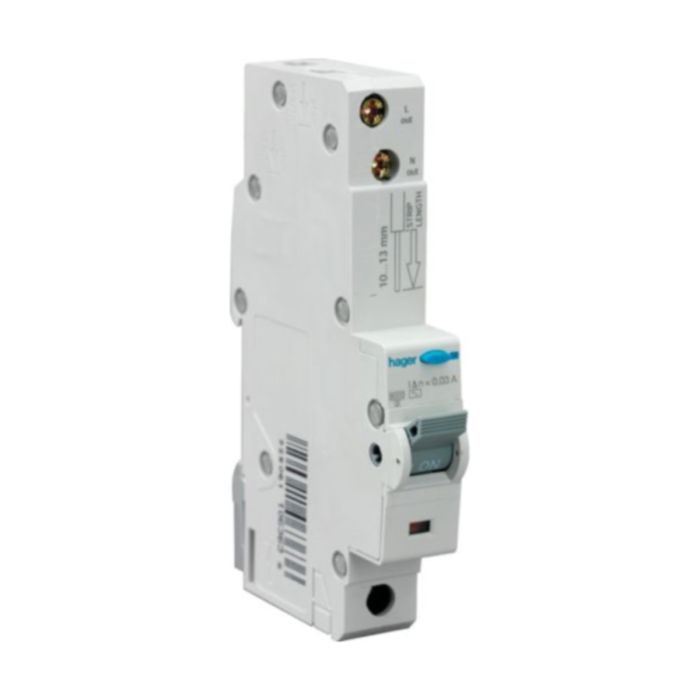

Hager ADA182U 32A SP RCBO Type A C Curve 30mA 10kA
Hager ADA Electronic Residual Current Circuit Breaker with Overcurrent Protection (RCBO) provides MCB overload protection and RCD earth leakage protection (protects against electrical shocks by direct or indirect contact). This is ideal residential, commercial and industrial applications. This RCDO is designed for din rail mounting in Hager domestic consumer units and 3 phase fuseboards. It is commonly used in light commercial environments such as offices with large fluorescent or LED lighting c
- Compact protection devices which combine the overcurrent functions of an MCB with the earth fault functions of an RCCB in a single unit.
- These devices are single pole & solid neutral.
- Locking kit = Cat ref.: MZN175.
- Conforms to IEC 61009-1, IEC 61009-2-2, EN 61009-1.
- Flying neutral lead: 700mm
- Terminal Capacities, 25mm² rigid, 16mm² flexible.
- 230V A.C.
- 10mA, 30mA & 100mA.
Stock available Next working day
SKU
HG-ADA182U
£28.37 £34.04
Product Downloads
Product Categories
Hager ADA182U RCBO SP A C 32A 30mA 10kA
| SKU | HG-ADA182U |
|---|---|
| Manufacturer Part Code | ADA182U |
| Current Rating | 32A |
| Trip Type | Type C |
| Short Circuit Rating | 10 kA |
| Sensitivity | 30 mA |
| Pole Configuration | 1P |
| Voltage | 230V |
| Mounting Method | DIN Rail |
| Ingress Protection | IP20 |
| Depth (mm) | 70.00 mm |
| Height (mm) | 110.00 mm |
| Width (mm) | 17.50 mm |
| Cable Capacity | 16 mm2 |
| Standards | BSEN61009 |
| Is on Sale | No |
| Circuit Breakers | Description | Product | RCBO | |
| Circuit Breakers | Description | Product Type | SP Class A Type C | |
| Circuit Breakers | Description | Product | Circuit Breaker | |
| Circuit Breakers | Dimensions | Height (EF008809) | 110 mm | |
| Circuit Breakers | Features | Ingress Protection (EF005474) | IP20 | |
| Circuit Breakers | Features | Mounting (EF000003) | DIN Rail | |
| Circuit Breakers | Features | Pole Configuration | Single Pole (1P) | |
| Circuit Breakers | Features | Sensitivity | 30 mA | |
| Circuit Breakers | Features | Short Circuit Rating | 10 kA | |
| Circuit Breakers | Features | Trip Type | Type C | |
| Circuit Breakers | General | Standards | BSEN61009 | |
| Circuit Breakers | Technical Data | Current Rating (EF000227) | 32 A | |
| Circuit Breakers | Technical Data | Voltage | 230 V |
