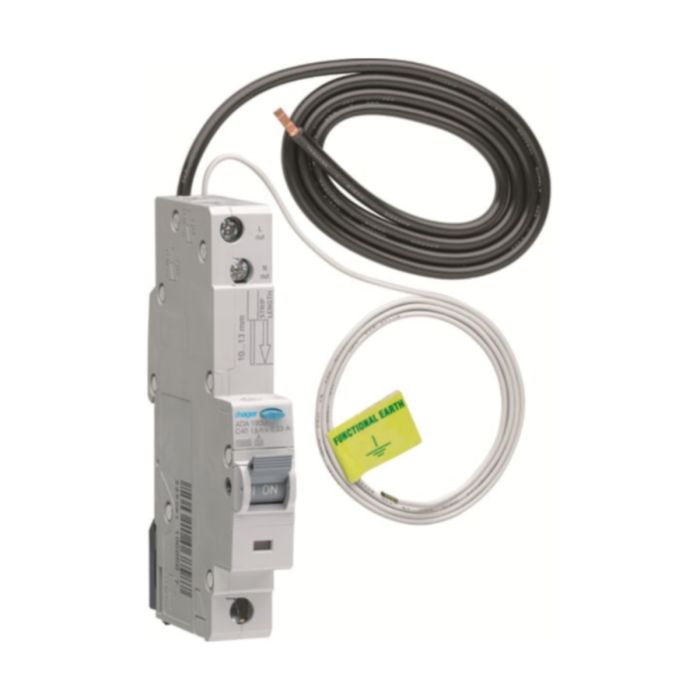

Hager ADA190U 40A SP RCBO Type A C Curve 30mA 10kA
Hager ADA190U RCBO SP A C 40A 30mA 10kA
- Compact protection devices which combine the overcurrent functions of an MCB with the earth fault functions of an RCCB in a single unit.
- These devices are single pole & solid neutral.
- Locking kit = Cat ref.: MZN175.
- Conforms to IEC 61009-1, IEC 61009-2-2, EN 61009-1.
- Flying neutral lead: 700mm
- Terminal Capacities, 25mm² rigid, 16mm² flexible.
- 230V A.C.
- 10mA, 30mA & 100mA.
Stock available Next working day
SKU
HG-ADA190U
£28.37 £34.04
Product Downloads
Product Categories
Hager ADA190U RCBO SP A C 40A 30mA 10kA
| SKU | HG-ADA190U |
|---|---|
| Manufacturer Part Code | ADA190U |
| Current Rating | 40A |
| Trip Type | Type C |
| Short Circuit Rating | 10 kA |
| Sensitivity | 30 mA |
| Pole Configuration | 1P |
| Voltage | 230V |
| Mounting Method | DIN Rail |
| Ingress Protection | IP20 |
| Depth (mm) | 70.00 mm |
| Height (mm) | 110.00 mm |
| Width (mm) | 17.50 mm |
| Cable Capacity | 16 mm2 |
| Standards | BSEN61009 |
| Is on Sale | No |
| Circuit Breakers | Description | Product | RCBO | |
| Circuit Breakers | Description | Product Type | SP Class A Type C | |
| Circuit Breakers | Description | Product | Circuit Breaker | |
| Circuit Breakers | Dimensions | Height (EF008809) | 110 mm | |
| Circuit Breakers | Features | Ingress Protection (EF005474) | IP20 | |
| Circuit Breakers | Features | Mounting (EF000003) | DIN Rail | |
| Circuit Breakers | Features | Pole Configuration | Single Pole (1P) | |
| Circuit Breakers | Features | Sensitivity | 30 mA | |
| Circuit Breakers | Features | Short Circuit Rating | 10 kA | |
| Circuit Breakers | Features | Trip Type | Type C | |
| Circuit Breakers | General | Standards | BSEN61009 | |
| Circuit Breakers | Technical Data | Current Rating (EF000227) | 40 A | |
| Circuit Breakers | Technical Data | Voltage | 230 V |
