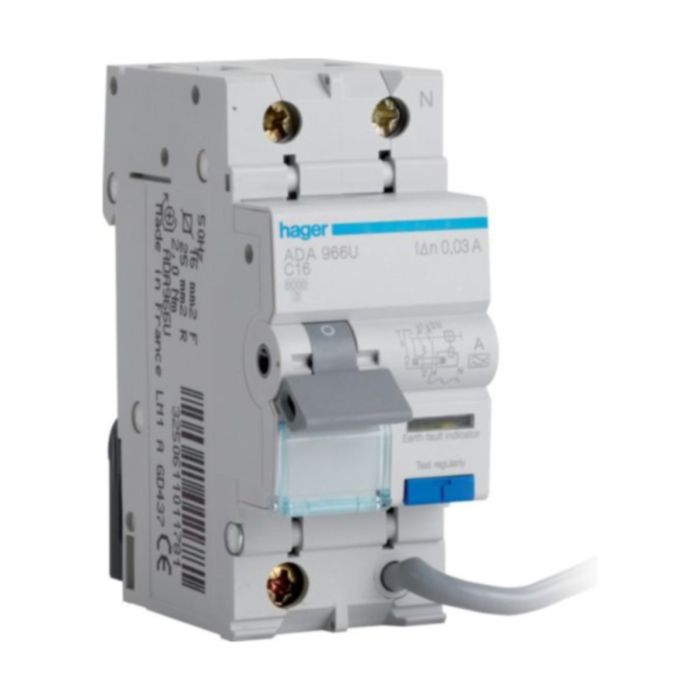

Hager ADA966U RCBO SPSN Type C 2 Module 16A 30mA 6kA
Hager ADA966U RCBO SPSN C 16A 30mA 6kA
- Compact protection devices which provide MCB overcurrent protection and RCCB earth fault protection in a single unit.
- The device switches both the line and neutral conductors. All ratings have 30mA earth fault protection.
- The units feature Indicators which show whether a trip is due to an overcurrent or earth fault.
- Breaking capacity: 4.5kA.
- Conforms to EN 61009-1
- Operating Voltage: 230V A.C. -15% +10% 50Hz.
Estimated delivery 3-5 Working days
SKU
HG-ADA966U
£22.80 £27.36
Product Downloads
Product Categories
Hager ADA966U RCBO SPSN C 16A 30mA 6kA
| SKU | HG-ADA966U |
|---|---|
| Manufacturer Part Code | ADA966U |
| Current Rating | 16A |
| Trip Type | Type C |
| Short Circuit Rating | 6 kA |
| Sensitivity | 30 mA |
| Pole Configuration | 1P+SN |
| Voltage | 110-230V |
| Mounting Method | DIN Rail |
| Ingress Protection | IP20 |
| Depth (mm) | 68.00 mm |
| Width (mm) | 35.00 mm |
| Cable Capacity | 16Sq.mm (Flexible) 25Sq.mm (Rigid) mm2 |
| Standards | BS EN 61009 |
| Is on Sale | No |
| Circuit Breakers | Description | Product | RCBO | |
| Circuit Breakers | Description | Product Type | SPSN Type C | |
| Circuit Breakers | Description | Product | Circuit Breaker | |
| Circuit Breakers | Description | Type | RCBO | |
| Circuit Breakers | Dimensions | Width (EF008808) | 35 mm | |
| Circuit Breakers | Features | Pole Configuration | SP & SN | |
| Circuit Breakers | Features | Sensitivity | 30 mA | |
| Circuit Breakers | Features | Short Circuit Rating | 6 kA | |
| Circuit Breakers | Features | Trip Type | Type C | |
| Circuit Breakers | General | Standards | BS EN 61009 | |
| Circuit Breakers | Technical Data | Current Rating (EF000227) | 16 A | |
| Circuit Breakers | Technical Data | Voltage | 110 | 230 V |
