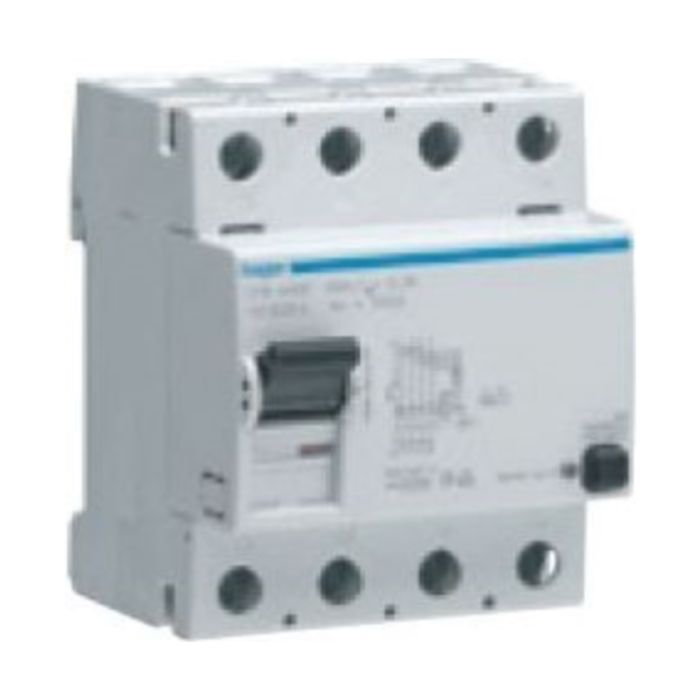

Hager CDB463F RCCB 4P B 63A 30mA 6kA
- All RCCBs have trip free mechanisms and can be padlocked either on or off with the use of a MZN175.
- Conforms to BS EN 61008, IEC1008
Estimated delivery 3-5 Working days
SKU
HG-CDB463F
£990.90 £1,189.08
Product Downloads
Product Categories
| SKU | HG-CDB463F |
|---|---|
| Manufacturer Part Code | CDB463F |
| Current Rating | 63A |
| Short Circuit Rating | 6 kA |
| Sensitivity | 30 mA |
| Voltage | 400V |
| Pole Configuration | 4P |
| Ingress Protection | IP20 |
| Cable Capacity | 50 mm2 |
| Mounting Method | DIN Rail |
| Width (mm) | 70.00 mm |
| Standards | BSEN61008 |
| Is on Sale | No |
| Circuit Breakers | Description | Product | RCCB | |
| Circuit Breakers | Description | Product Type | 4P Type B | |
| Circuit Breakers | Description | Product | Circuit Breaker | |
| Circuit Breakers | Features | Ingress Protection (EF005474) | IP20 | |
| Circuit Breakers | Features | Mounting (EF000003) | DIN Rail | |
| Circuit Breakers | Features | Pole Configuration | Four Pole (4P) | |
| Circuit Breakers | Features | Sensitivity | 30 mA | |
| Circuit Breakers | Features | Short Circuit Rating | 6 kA | |
| Circuit Breakers | General | Standards | BSEN61008 | |
| Circuit Breakers | Technical Data | Current Rating (EF000227) | 63 A | |
| Circuit Breakers | Technical Data | Voltage | 400 V |
