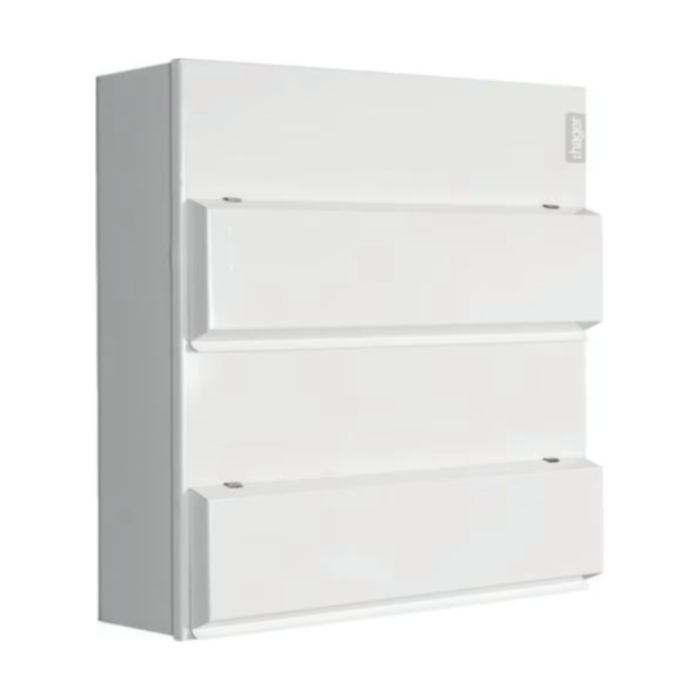

Hager VML90610CUSPD 6+10 Way Dual Row Dual 100A RCD SPD High Integrity Consumer Unit 2x100A
- Surface Mounted Consumer Units
- Configurable High Integrity
- Metal split load and configurable consumer units with the ability to protect selected circuits with RCBOs/MCBs and the remainder of circuits split across two RCCBs.
- All Design 10 consumer units contain top, bottom & rear knockouts and a meter tail cable entry plate (VM04CE) as standard
- Supplied with 2 x Type A RCCBs, a full metal DIN rail, 100A switch disconnector incomer and a full complement of earth and neutral terminals along with marking labels, busbar and instructions.
- References ending in SPD come with a Type 2 SPD fitted.
- Conforms to BS EN 61439-3 Including Annex ZB (16kA rating).
- References ending in SPD come with a Type 2 SPD fitted.
UK Delivery:
- Orders over £150 excluding VAT – FREE DELIVERY
- Orders under £150 excluding VAT – Delivery £7.50 + VAT
A very small number of large, heavy items may attract an additional charge. This charge is calculated based on the length/weight. Depending on your area, there will usually be a carriage-paid order value threshold where FREE delivery can still be attained.
Same Day Despatch On In-Stock Items:
We despatch in-stock items on the same working day when they are ordered before 3 PM GMT.
Delivery Charges for Length Items (UK Mainland):
- 1-2M Length Items: Free delivery to UK Mainland on orders over £500; for orders under £500, delivery is charged at £12.50 + VAT.
- 2M+ Length Items: Free delivery to UK Mainland on orders over £800; for orders under £800, delivery is charged at £15.00 + VAT.
- Pallet Delivery: For items requiring pallet delivery, free delivery is available for UK Mainland orders over £3000; for orders under £3000, a £50 delivery charge applies.
Delivery Charges for Scottish Highlands, Northern Ireland, and Channel Isles:
- Parcels: £20 + VAT delivery charge.
- 1-2M Length Items: £35 + VAT delivery charge.
- 2M+ Length Items: £55 + VAT delivery charge.
- Pallet Delivery: £120 + VAT delivery charge.
No free delivery is available for these regions.
If You Have a Deadline:
Out-of-stock items can take up to the recommended Delivery Time, which you can find on every product page. We will notify you if they are likely to take longer than this. If you have a deadline, please contact us by email or phone. We will work with you to arrange a better-suited delivery time or date.
Next Working Day:
All in-stock items are despatched via traceable and insured carriers on a next-day service. If certain items state a longer delivery time, please contact us as we can often arrange next-day delivery for most items at an additional cost where applicable.
NON-Stock Items:
Any items that are not stock items will be ordered and sent directly from our suppliers. All manufacturers we use are highly recommended and despatch their products via traceable and insured carriers. These items may take longer than the expected delivery time, but we will notify you in advance if this is likely to occur.
Received Damaged:
If any items are received damaged in transit and require a replacement or refund, please notify us verbally or in writing within 48 hours of delivery. Ensure that clear photographs are provided showing both the packaging—particularly any damage to it—and the damaged item(s). This will help us process the correct paperwork for a replacement or refund with minimal delay.
Manufacturer Part Code | VML90610CUSPD |
---|---|
SKU | HG-VML90610CUSPD |
Product Range | Design 10 |
Material | Steel |
Colour | White |
Ingress Protection | IP3X |
Mounting Method | Surface |
Outgoing Ways | 16 Way |
Number of RCDs | 2 |
Depth (mm) | 100.00 mm |
Width (mm) | 370.00 mm |
Height (mm) | 486.00 mm |
Door/Lid Type | Solid |
Pole Configuration | 1P |
Incomer current rating | 100 A |
Incomer Included | Yes |
RCD Sensitivity | 30 mA |
RCD included | Yes |
Split Load | Yes |
Metered | No |
Outgoing Devices Included | No |
18th Edition Compliant | Yes |
Standards | BSEN61439-3 |
Is on Sale | No |
Brand | Design 10 | |
Distribution Boards | Description | Product | Consumer Unit | |
Distribution Boards | Description | Product Type | 6+10 Way High Integrity RCCB SPD | |
Distribution Boards | Description | Product | Consumer Unit | |
Distribution Boards | Dimensions | Width | 370 mm | |
Distribution Boards | Features | Door/Lid Type | Solid | |
Distribution Boards | Features | High Integrity | Yes | |
Distribution Boards | Features | Incomer Current Rating? | 100 A | |
Distribution Boards | Features | Incomer Included? | Y | |
Distribution Boards | Features | Ingress Protection | IP3X | |
Distribution Boards | Features | Metered | N | |
Distribution Boards | Features | Mounting | Surface | |
Distribution Boards | Features | Number of RCD s | 2 | |
Distribution Boards | Features | Outgoing Devices Included | N | |
Distribution Boards | Features | Outgoing Ways | 16 Way | |
Distribution Boards | Features | Pole Configuration | Single Pole (1P) | |
Distribution Boards | Features | RCD 2 Rating | 80 A | |
Distribution Boards | Features | RCD 2 Sensitivity | 30 mA | |
Distribution Boards | Features | RCD Rating | 80 A | |
Distribution Boards | Features | RCD Sensitivity | 30 mA | |
Distribution Boards | Features | RCD s Included | Y | |
Distribution Boards | Features | Split Load | Y | |
Distribution Boards | General | Standards | BSEN61439-3 | |
Distribution Boards | Material & Finish | Body Colour | White | |
Distribution Boards | Technical Data | 17th Edition Compliant | N | |
Distribution Boards | Technical Data | 18th Edition Compliant | Y |
