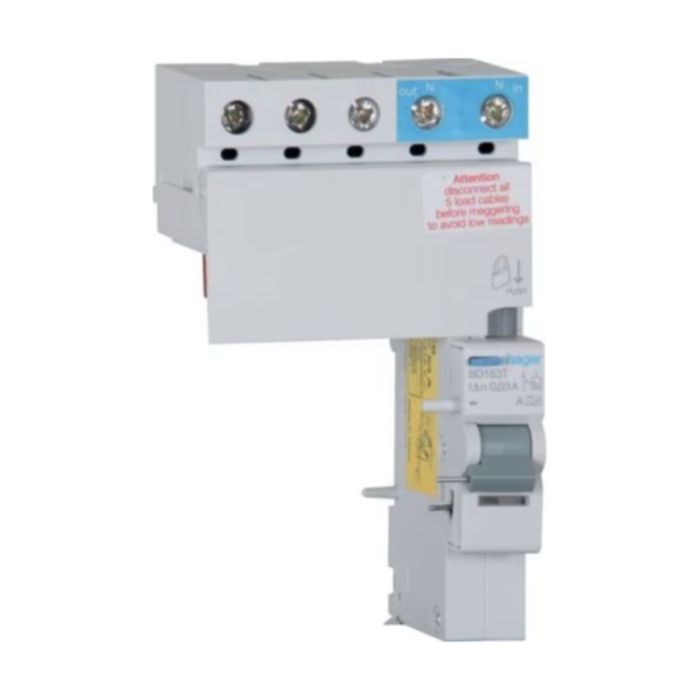

Hager BE163T RCD 3 Phase Add-On Class A 4 Module 63A 100mA
Hager BE163T RCD 3Phs Add-On A 63A 100mA
- Can be fitted to any Hager 3 pole 10kA MCB up to 63A ,Provides 3 Phase Earth Leakage Protection , Also protects against 'pulsating DC'
- Can be used in combination with any Hager 3 pole 10kA MCB up to 63A. Requires the use of the adjacent outgoing way
- 3 Phase earth leakage protection up to 63A.
- One module add-on block + MCB combinations suit all Hager distribution boards.
- BS EN 61009-1 Appendix G.
Estimated delivery 3-5 Working days
SKU
HG-BE163T
£301.64 £361.97
Product Downloads
Product Categories
Hager BE163T RCD 3Phs Add-On A 63A 100mA
| SKU | HG-BE163T |
|---|---|
| Manufacturer Part Code | BE163T |
| Current Rating | 63A |
| Voltage | 400V |
| Sensitivity | 100 mA |
| Pole Configuration | 3P |
| Cable Capacity | 25 mm2 |
| Depth (mm) | 69.00 mm |
| Width (mm) | 70.00 mm |
| Height (mm) | 103.00 mm |
| Ingress Protection | IP20 |
| Standards | BSEN61008 |
| Mounting Method | DIN Rail |
| Is on Sale | No |
| Circuit Breakers | Description | Product | RCD | |
| Circuit Breakers | Description | Product Type | 3 Phase Add-On Class A | |
| Circuit Breakers | Description | Product | Circuit Breaker | |
| Circuit Breakers | Dimensions | Depth (EF008810) | 69 mm | |
| Circuit Breakers | Dimensions | Height (EF008809) | 103 mm | |
| Circuit Breakers | Features | Ingress Protection (EF005474) | IP20 | |
| Circuit Breakers | Features | Mounting (EF000003) | DIN Rail | |
| Circuit Breakers | Features | Pole Configuration | Triple Pole (3P) | |
| Circuit Breakers | Features | Sensitivity | 100 mA | |
| Circuit Breakers | General | Standards | BSEN61008 | |
| Circuit Breakers | Technical Data | Current Rating (EF000227) | 63 A | |
| Circuit Breakers | Technical Data | Voltage | 400 V |
