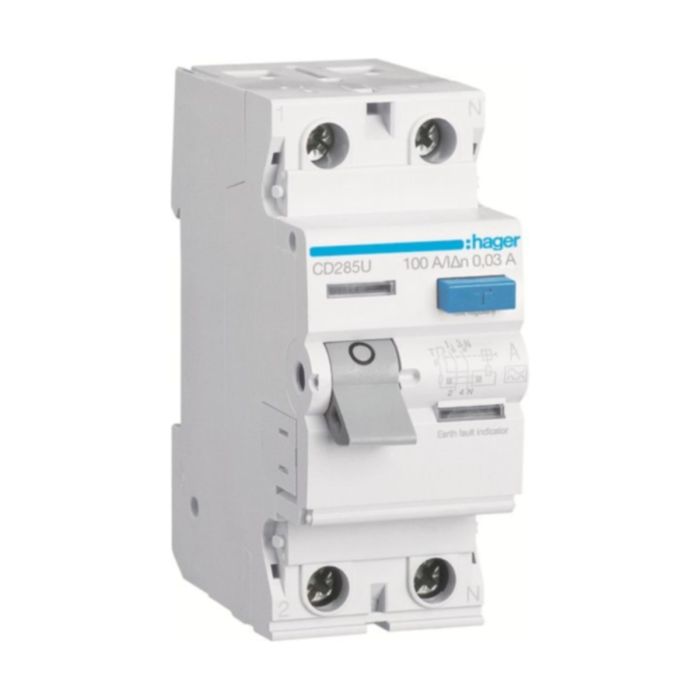

Hager CD285U 100A DP RCCB Type A 30mA
Hager CD285U RCCB DP A 100A 30mA
- To open a circuit automatically in the event an earth fault between line and earth, and/or neutral and earth
- Conforms to BS EN 61008, IEC1008
- Terminal capacities: 16-63A Rigid 25mm², Flexible 16mm² / 80 & 100A Rigid 50mm², Flexible 35mm²
- Positive contact indication is provided by the rectangular flag indicator
- Red = Closed
- Green = Open
- Indication of trip is provided by the flag indicator
- Yellow = Tripped
Stock available Next working day
SKU
HG-CD285U
£45.49 £54.59
Product Downloads
Product Categories
Hager CD285U RCCB DP A type 100A 30mA
| SKU | HG-CD285U |
|---|---|
| Manufacturer Part Code | CD285U |
| Ingress Protection | IP20 |
| Width (mm) | 35.00 mm |
| Current Rating | 100A |
| Sensitivity | 30 mA |
| Pole Configuration | 2P |
| Cable Capacity | 50 mm2 |
| Voltage | 230V |
| Standards | BSEN61008 |
| Mounting Method | DIN Rail |
| Is on Sale | No |
| Circuit Breakers | Description | Product | RCCB | |
| Circuit Breakers | Description | Product Type | DP Type A | |
| Circuit Breakers | Description | Product | Circuit Breaker | |
| Circuit Breakers | Features | Ingress Protection (EF005474) | IP20 | |
| Circuit Breakers | Features | Mounting (EF000003) | DIN Rail | |
| Circuit Breakers | Features | Pole Configuration | Double Pole (2P) | |
| Circuit Breakers | Features | Sensitivity | 30 mA | |
| Circuit Breakers | General | Standards | BSEN61008 | |
| Circuit Breakers | Technical Data | Current Rating (EF000227) | 100 A | |
| Circuit Breakers | Technical Data | Voltage | 230 V |
