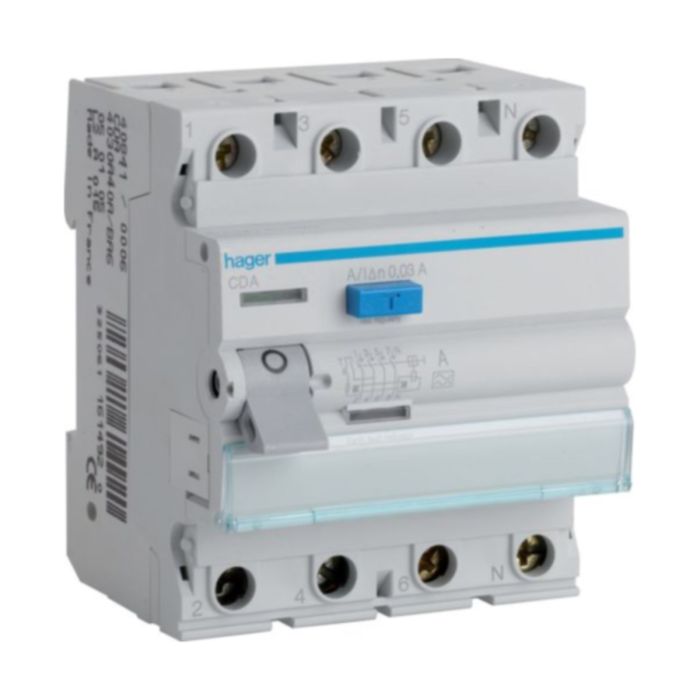

Hager CDA440U RCCB 4P Class A 40A 30mA
Hager RCCB is a 4-pole, 30mA residual operating current with A sensitivity. It is used to open a circuit automatically in the event an earth fault between phase and earth, and/or neutral and earth. Suitable for domestic, commercial and industrial applications.
- To open a circuit automatically in the event an earth fault between line and earth, and/or neutral and earth
- Conforms to BS EN 61008, IEC1008
- Terminal capacities: 16-63A Rigid 25mm², Flexible 16mm² / 80 & 100A Rigid 50mm², Flexible 35mm²
- Positive contact indication is provided by the rectangular flag indicator
- Red = Closed
- Green = Open
- Indication of trip is provided by the flag indicator
- Yellow = Tripped
Hager CDA440U RCCB 4P A 40A 30mA
SKU | HG-CDA440U |
---|---|
Manufacturer Part Code | CDA440U |
Warranty | 2 Years |
Current Rating | 40A |
Trip Type | Type A |
Sensitivity | 30 mA |
Voltage | 230-400V |
Pole Configuration | 4P |
Cable Capacity | 16Sq.mm (Flexible) 25Sq.mm (Rigid) mm2 |
Width (mm) | 70.00 mm |
Standards | BS EN 61008 IEC1008 |
Is on Sale | No |
Circuit Breakers | Description | Product | RCCB | |
Circuit Breakers | Description | Product Type | 4P Class A | |
Circuit Breakers | Description | Product | Circuit Breaker | |
Circuit Breakers | Description | Type | RCCB | |
Circuit Breakers | Dimensions | Width (EF008808) | 70 mm | |
Circuit Breakers | Features | Pole Configuration | Four Pole (4P) | |
Circuit Breakers | Features | Sensitivity | 30 mA | |
Circuit Breakers | Features | Trip Type | Type A | |
Circuit Breakers | General | Standards | BS EN 61008 IEC1008 | |
Circuit Breakers | General | Warranty | 2 Years | |
Circuit Breakers | Technical Data | Current Rating (EF000227) | 40 A | |
Circuit Breakers | Technical Data | Voltage | 230 | 400 V |
