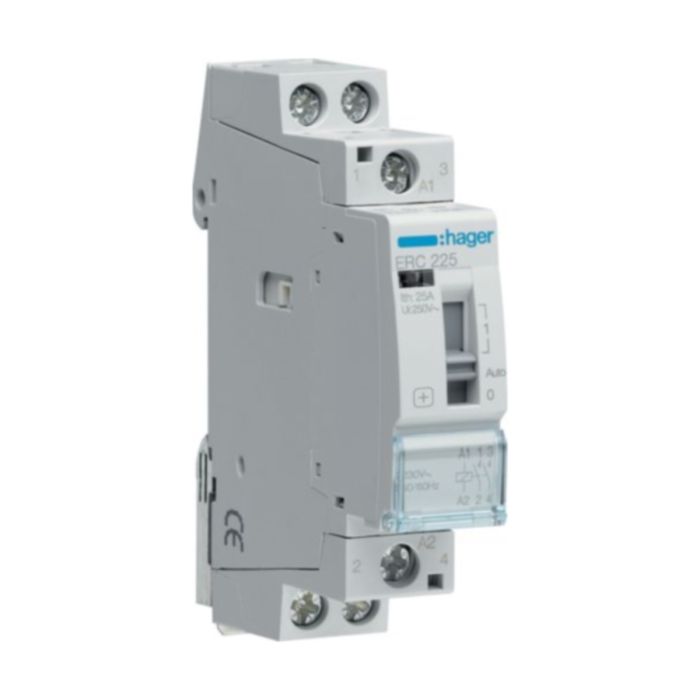

Hager ERC225 Relay 2NO 25A 230V
Hager ERC225 Relay 2NO 25A 230V
- Override Contactors Manual override facility allows temporary override, with automatic return at next coil energisation. Permanent off can also be selected. ETC225S is a low noise version.
- The choice of contactor depends upon a number of parameters, e.g. the nature of the supply, the power it is switching, the characteristics of the load, the control voltage required, number of operations
- All contactor ratings are for AC1 loads only – if the load differs from AC1 the contactor may need de-rating
- The use of LZ060 (heat dissipation inserts) between all contactors installed or between contactors and adjacent devices is required.
- Options: Contact choice Normally open (NO) - Normally closed (NC)
- All contactors will accept auxiliary, ESC080 contact.
Estimated delivery 3-5 Working days
SKU
HG-ERC225
£40.57 £48.68
Product Downloads
Product Categories
Hager ERC225 Relay 2NO 25A 230V
| SKU | HG-ERC225 |
|---|---|
| Manufacturer Part Code | ERC225 |
| Material | Plastic |
| Colour | White |
| Depth (mm) | 60.00 mm |
| Height (mm) | 83.00 mm |
| Width (mm) | 17.85 mm |
| Voltage | 230V |
| Standards | EN 61095 |
| Mounting Method | Clip-On/DIN Rail |
| Is on Sale | No |
| Modular Control Devices | Description | Product | Relay | |
| Modular Control Devices | Description | Product Type | 2NO | |
| Modular Control Devices | Description | Product | Contactor | |
| Modular Control Devices | Dimensions | Width (EF008808) | 17.85 mm | |
| Modular Control Devices | Features | Mounting (EF000003) | Clip-On/DIN Rail | |
| Modular Control Devices | Features | Number of Modules | 1 | |
| Modular Control Devices | Features | Number of Poles | 2P | |
| Modular Control Devices | Features | Operating Durability | 30000 Cyc | |
| Modular Control Devices | Features | Pole Configuration | 2NO | |
| Modular Control Devices | Features | Rated Voltage | 230 V | |
| Modular Control Devices | Features | Short Circuit Current | 3000 A | |
| Modular Control Devices | Features | Surge Protection Included | No | |
| Modular Control Devices | Features | Terminal Capacity | 1-10 mm2 | |
| Modular Control Devices | General | Standards | EN 61095 | |
| Modular Control Devices | Material & Finish | Colour (EF000007) | White | |
| Modular Control Devices | Material & Finish | Material (EF001257) | Plastic | |
| Modular Control Devices | Technical Data | Coil Voltage | 230VAC | |
| Modular Control Devices | Technical Data | Electrical Supply Frequency | 50 Hz | |
| Modular Control Devices | Technical Data | Minimum Operating Temperature | -10 Degrees C | |
| Modular Control Devices | Technical Data | Rated Current | 25 A |
