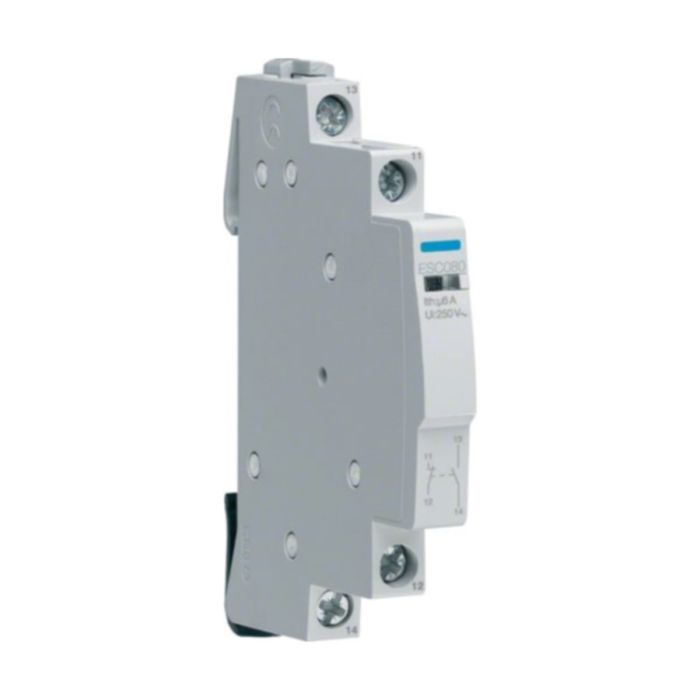

Hager ESC080 Auxiliary Contact 1NO+1NC
Hager ESC080 Auxiliary Contact 1NO+1NC
- Auxiliary unit for modular devices
Stock available Next working day
SKU
HG-ESC080
£18.14 £21.77
Product Downloads
Product Categories
Hager ESC080 Auxiliary Contact 1NO+1NC
| SKU | HG-ESC080 |
|---|---|
| Manufacturer Part Code | ESC080 |
| Colour | White |
| Material | Plastic |
| Depth (mm) | 60.00 mm |
| Width (mm) | 11.00 mm |
| Height (mm) | 83.00 mm |
| Current Rating | 6A |
| Number of modules | 1 |
| Mounting Method | Side |
| Voltage | 230V |
| Is on Sale | No |
| Modular Control Devices | Description | Product | Auxiliary Contact | |
| Modular Control Devices | Description | Product Type | 1NO+1NC | |
| Modular Control Devices | Description | Product | Auxiliary Contact | |
| Modular Control Devices | Dimensions | Width (EF008808) | 11 mm | |
| Modular Control Devices | Features | Mounting (EF000003) | Side | |
| Modular Control Devices | Features | Number of Modules | 1 | |
| Modular Control Devices | Features | Pole Configuration | 1NO+1NC | |
| Modular Control Devices | Features | Rated Voltage | 230 V | |
| Modular Control Devices | Features | Surge Protection Included | No | |
| Modular Control Devices | Features | Terminal Capacity | 1-6 mm2 | |
| Modular Control Devices | Features | c/w Lid? | N | |
| Modular Control Devices | Material & Finish | Colour (EF000007) | White | |
| Modular Control Devices | Material & Finish | Material (EF001257) | Plastic | |
| Modular Control Devices | Technical Data | Minimum Operating Temperature | -10 Degrees C | |
| Modular Control Devices | Technical Data | Rated Current | 6 A |
