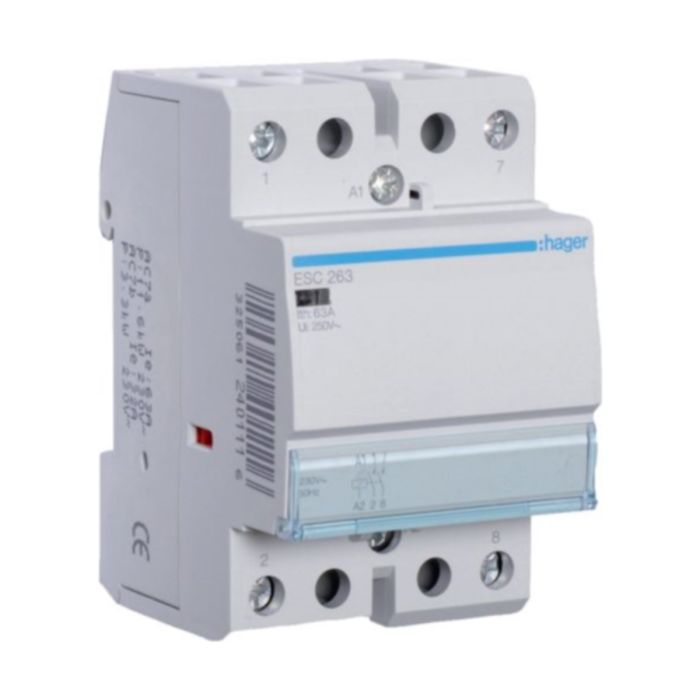

Hager ESC263 Contactor 2NO 63A 230V
Hager ESC263 Contactor 2NO 63A 230V
- Standard Contactors - For the remote switching and control of power circuits (25A-63A AC1)
- The choice of contactor depends upon a number of parameters, e.g. the nature of the supply, the power it is switching, the characteristics of the load, the control voltage required, number of operations
- All contactor ratings are for AC1 loads only – if the load differs from AC1 the contactor may need de-rating
- The use of LZ060 (heat dissipation inserts) between all contactors installed or between contactors and adjacent devices is required.
- Options: Contact choice Normally open (NO) - Normally closed (NC)
- All contactors will accept auxiliary, ESC080 contact.
Hager ESC263 Contactor 2NO 63A 230V
SKU | HG-ESC263 |
---|---|
Manufacturer Part Code | ESC263 |
Width (mm) | 52.50 mm |
Current Rating | 63A |
Voltage | 230V |
Number of Contacts | 2 |
Is on Sale | No |
Contactor | Description | Product | Contactor | |
Contactor | Description | Product Type | 2NO | |
Contactor | Description | Product | Contactor | |
Contactor | Dimensions | Width (EF008808) | 52.5 mm | |
Contactor | Features | Number of Contacts | 2 | |
Contactor | Features | Switch Position | 2NO | |
Contactor | Technical Data | Rated Current | 63 A | |
Contactor | Technical Data | Voltage Rating | 230 V |
